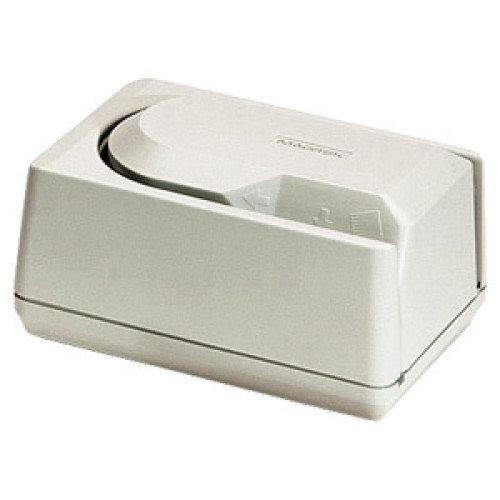

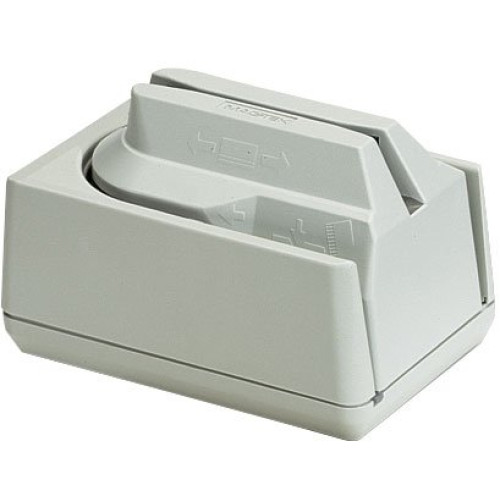

22530001 - MagTek Mini-MICR Check-Stripe Reader MICR Check Scanner

The Mini-MICR Check-Stripe Reader reads checks in numerous formats plus it comes with the added bonus of reading magnetic stripes.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
22530001 Mini-MICR Check-Stripe Reader, Keyboard wedge interface, format 1100 check reader. Includes tracks 1, 2, & 3 MSR. Order cables separately. See accessories. Color: white.
Ships Free in 3-5 Days
$285.70
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

22530001 Details

Technical Information

  • MICR Font Supported:
    • CMC-7
    • E13-B
  • Magnetic Stripe Track Configuration: Triple Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2
    • Track 3
  • Check Reading Speed: 17 in/s

General Information

  • Product Type: Check Reader
  • Brand Name: MagTek
  • Manufacturer: MagTek, Inc
  • Product Name: Mini MICR Check Reader
  • Product Line: Mini MICR

Physical Characteristics

  • Color: White
  • Weight (Approximate): 3 lb

Interfaces/Ports

  • Interfaces/Ports: Keyboard Wedge

Environmental Conditions

  • Humidity:
    • 10% to 90% Non-condensing Operating
    • 0% to 100% Non-condensing Storage
  • Temperature:
    • 32°F (0°C) to 131°F (55°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage

Other

  • Additional Information:
    • Card Types:
    • ISO
    • ANSI
    • ABA

Power Description

  • Input Voltage: 110 V AC

Reliability

  • MTBF: 125000 Hour

The MagTek 22530001 is also known as Mag-Tek MAG-MICR/3TRK .
