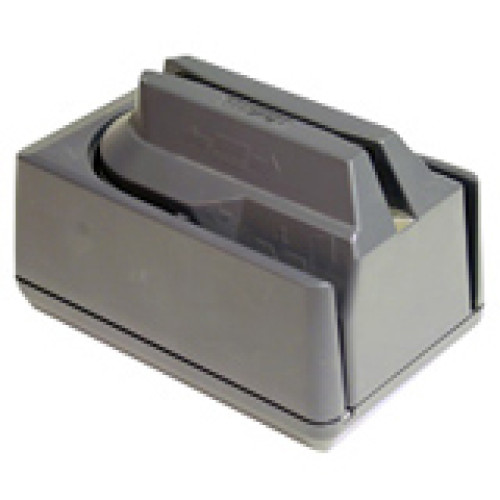

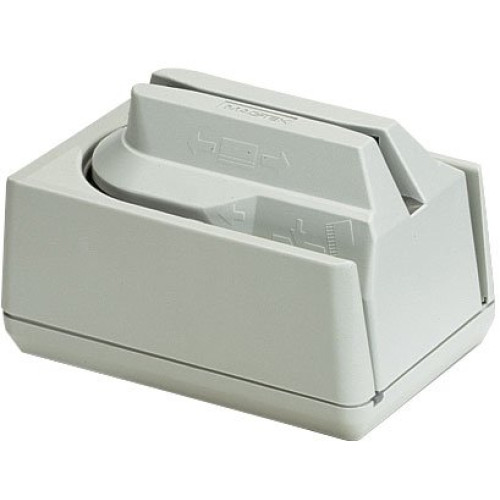

MagTek Mini-MICR Check-Stripe Reader

USB Interface, MSR Tracks 1, 2 and 3, Keyboard Emulation, power supply. Requires cable (Part# 22517583). Color: Gray

Check Scanner
This part is replaced by 22551002.
$203.06

Free Shipping

Ships Today



MagTek Mini-MICR Check-Stripe Reader Check Scanner

The MagTek Mini-MICR Check-Stripe Reader reads checks in various formats, read magnetic stripes in various track combinations, come with either a Keyboard wedge (PS/2 or AT) or RS-232 interface, and are available in either white or gray finish.

Keyboard Emulation Software Interface: Data is sent as if it were a USB keyboard. Read data can be viewed in applications such as Windows Notepad without requiring additional drivers or application programming.

Human Interface Device (HID) Software Interface: A developed or modified application is required to communicate with this device. Data will not be seen in applications such as Windows Notepad. USB Swipe & Insert Reader Demo Program can be used to communicate with the USB SureSwipe Swipe Card Reader.

Full specifications (PDF)

Manufacturer part number: 22533012

Technical Information

  • MICR Font Supported:
    • E13-B
    • CMC-7
  • Magnetic Stripe Track Configuration: Triple Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2
    • Track 3
  • Check Feeder Capacity: 1

General Information

  • Product Type: Check Reader
  • Brand Name: MagTek
  • Manufacturer: MagTek, Inc
  • Product Name: Mini MICR Check Reader
  • Product Line: Mini MICR

Physical Characteristics

  • Height: 4.3"
  • Width: 4"
  • Color: Gray
  • Length: 6"
  • Weight (Approximate): 3 lb

Interfaces/Ports

  • Interfaces/Ports: 1USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • ISO
    • AAMVA

Power Description

  • Input Voltage: 12 V AC
