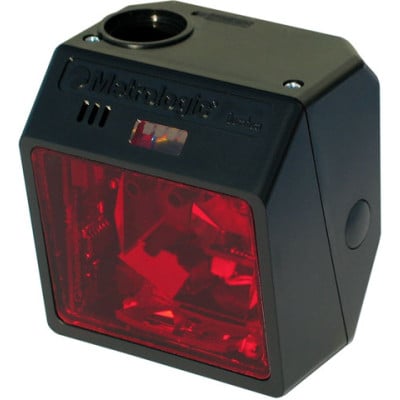

Photo of Metrologic IS 3480 Quantum E
Metrologic logo

Metrologic IS 3480 Quantum E Scanner

The Metrologic IS 3480 Quantum E omni-directional and single-line scanner is designed for integration with a variety of applications including interactive kiosks, price lookup systems, ATM's, reverse vending machines, controlled access, or a host of other devices. The IS 3480 Quantum E's main cable connector is located at the top of the unit to facilitate mounting and the auxiliary connector gives users access to several of the I/O signals, providing the flexibility for external hookup of the beeper, button, and LEDs.
Questions?
1-888-875-7170
We respond to every email

Form Factor

Connectivity

Scanner Capability

Scan Pattern

Scanner Type

Color

Included Cables ?

Ruggedness

IS 3480 Quantum E Options
Part # DescriptionAvailabilityPriceOrder
MK3480-30A38 IS 3480 Quantum E, USB kit with omnidirectional and single line modes. Includes USB cable, user's manual and no power supply
Ships Free in 3-5 Days
$258.87
Retail $391.38
Save 33%
MK3480-30B38 IS 3480 Quantum E, USB kit with omnidirectional and single line modes. Includes USB cable, user's manual and US power supply
Ships Free in 3-5 Days
$228.85
Retail $346
Save 33%
MK3480-30B41 IS 3480 Quantum E, RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user's manual and US power supply Ships Free Today $258.87
Retail $391.38
Save 33%
MK3480-OEM41 IS 3480 Quantum E, RS-232 serial kit with omnidirectional and single line modes. Includes serial cable, utility connection and no power supply Check Availability Call for Details
MK3480-30C38 IS 3480 Quantum E, IS3480 Quantum E Omnidirectional Barcode scanner (USB KB, 220V Power supply, Cable and No Stand) Check Availability Call for Details
MK3480-30B47 IS 3480 Quantum E, OMNI and Single Keyboard wedge, Cable, Manual and 110V Power supply Check Availability Call for Details
MK3480-30B104 IS 3480 Quantum E, Quantum E Omnidirectional Barcode scanner, OMNI and Single RS-232 Thermal transferL/Laser Em, Power supply and Cable Check Availability Call for Details
MK3480-30A48/SP IS 3480 Quantum E, Custom kit Script Pro 54106C, cable, no power supply Check Availability Call for Details
MK3480-30A47 IS 3480 Quantum E, OMNI and Single Keyboard wedge, Cable, Manual and No Power supply Check Availability Call for Details
MK3480-30A41 IS 3480 Quantum E, RS-232 serial kit with omnidirectional and single line modes. Includes RS-232LP cable, user's manual and no power supply Check Availability Call for Details
MK3480-30A39 IS 3480 Quantum E, Quantum E Omnidirectional Barcode scanner, OMNI and Single USB, POS, Cables, Manuals and No Power supply Check Availability Call for Details
MK3480-30A104 IS 3480 Quantum E, IS3480 Quantum E, Scanner, RS-232 (TTL)/Laser Em., Black, Cable: 54-54020-N-3, Direct Connect No Power supply Needed, Manuals, Omni/Single-Line Scan Engine. Check Availability Call for Details

Metrologic IS 3480 Quantum E Details

IS3480 QuantumE Quick Specs
Depth of Field:
25 mm - 279 mm (1” - 11”) for 0.33 mm (13 mil) bar code at default setting
Width of Field: 38 mm (1.5”) @ 25 mm (1"); 153 mm (6”) @ 279 mm (11”)
Scan Speed: 1650 scan lines per second
Scan Pattern: 5 fields of 4 parallel lines, omnidirectional; or button activated single line
Minimum Bar Width: 0.127 mm (5.0 mil)
Dimensions: 50 mm x 63 mm x 68 mm (1.97” x 2.48” x 2.68”)
System Interfaces: RS232, Light Pen Emulation, Keyboard Wedge, Stand Alone Keyboard, IBM 468x/469X, USB (low speed and full speed), Laser Emulation, OCIA
Light Source: Visible Laser Diode 650 nm
Weight: 170 g (6.0 oz)
Mounting Holes: Five - M2.5 x 0.45 threaded inserts, 4 mm (0.16") maximum depth
The Metrologic IS 3480 Quantum E is also known as the Metrologic Instruments IS 3480 Quantum E .
