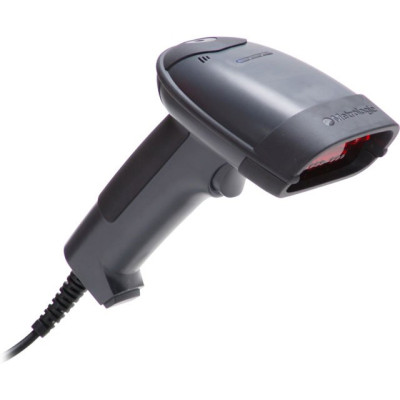

Metrologic MS 1690 Focus Scanner

The Metrologic MS 1690 Focus has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Metrologic MS 1690 Focus is a high performance handheld area imager. This omnidirectional scanner decodes virtually all of today's standard bar codes including 1D, RSS, PDF417, MicroPDF, EAN/UCC Composite, Matrix and Postal Codes regardless of orientation.

Questions?

1-888-875-7170

Email We respond to every email

Information:	Specifications \| Ask a question \|
Accessories:	Accessories/Options \| Metrologic MS 1690 Focus Service Contract \|

Part #	Description	Availability	Price
MS1690-47	This part is replaced by 1900GSR-2. MS 1690 Focus, SCANNER ONLY. 2D Imager, PS/2 interface, Color: Gray. Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR) or RS-232 Serial cables (Part# 53-53000-3-FR) and a Power supply (Part# 46-00525).		Call for Details
MS1690-38	This part is replaced by 1900GSR-2. MS 1690 Focus, SCANNER ONLY. 2D Imager, USB interface, Color: Gray. Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR).		Call for Details
MS1690-14	This part is replaced by 1900GSR-2. MS 1690 Focus, SCANNER ONLY. 2D Imager, RS-232 interface, Color: Gray. Cables and accessories must be purchased separately. These include RS-232 Serial cables (Part# 53-53000-3-FR) and a Power supply (Part# 46-00525)		Call for Details
MK1691-60A38-02-A	MS1690 Focus Imager, MS1690 Focus, SCANNER ONLY. 2D Imager, USB interface, Color: Dark gray. Cables and accessories must be purchased separately. These include USB (Part# 53-53235-N-3-FR)	Check Availability	Call for Details
MK1690-USB	This part is replaced by 1900GSR-2USB. MS 1690 Focus, USB compatible interface.		Call for Details
MK1690-61C47	MS 1690 Focus, MS1690 Handheld Area Imager (Keyboard wedge, Stand, 220V, Cable, Power supply and Manual)	Check Availability	Call for Details
MK1690-61C14	MS 1690 Focus, Focus Kit, RS-232, 220V, Power supply Stand Cables Manuals, Dark gray	Check Availability	Call for Details
MK1690-61B47-12	MS 1690 Focus, Handheld Area Imager, Keyboard wedge Focus, 5V Power supply and Loaded with EasyID	Check Availability	Call for Details
MK1690-61B47	MS 1690 Focus, Keyboard wedge kit. Includes stand, PS/2 cable, power supply and user's manual.	Check Availability	Call for Details
MK1690-61B41-12	MS 1690 Focus, Handheld Area Imager, RS-232 Focus, 5V Power supply and Loaded with EasyID	Check Availability	Call for Details
MK1690-61B14EASY	MS 1690 Focus, MS1690 Handheld Area Imager (RS-232 Focus, 5V Power supply and Loaded with EasyID)	Check Availability	Call for Details
MK1690-61B14/MABS	MS 1690 Focus, Units for Central American customers	Check Availability	Call for Details
MK1690-61B14	MS 1690 Focus, RS-232 kit. Includes stand, serial cable, power supply and user's manual.	Check Availability	Call for Details
MK1690-61A62/VR	MS 1690 Focus, Ruby VeriFone kit. Includes cable to Omni 3750, Dark gray.	Check Availability	Call for Details
MK1690-61A62/3750	MS 1690 Focus, Ruby VeriFone for register with omni keypad	Check Availability	Call for Details
MK1690-61A62-S3750	MS 1690 Focus, Area Imager (Ruby VeriFone with MVC-3MPS-VR3750 Cable)	Check Availability	Call for Details
MK1690-61A62	MS 1690 Focus, Area Imager, Ruby VeriFone, Stand, Cable and No Power supply, Color: Dark gray	Check Availability	Call for Details
MK1690-61A47-SP	MS 1690 Focus, Focus Keyboard, No Power supply, ScriptPro	Check Availability	Call for Details
MK1690-61A40-38-15	MS 1690 Focus, MS1690 Handheld Area Imager (Focus, FS, USB, Dir HID and 15 ft. Cable)	Check Availability	Call for Details
MK1690-61A40-235	MS 1690 Focus, MS1690 Handheld Area Imager (Focus, FS USB, Direct CON and 53-53235B-N-3 Cable)	Check Availability	Call for Details
MK1690-61A40-12-5	MS 1690 Focus, Handheld Area Imager, USB IBM OEM Focus, Loaded with EasyID and No Power supply	Check Availability	Call for Details
MK1690-61A40	MS 1690 Focus, PoweredUSB is non-standard, please call for more information. IBM PoweredUSB kit. Includes stand, locking USB cable, user's manual.	Check Availability	Call for Details
MK1690-61A38AMS5P	MS 1690 Focus, MS1690 Handheld Area Imager (LS USB, Stand, Cable and 5 Year Platinum	Check Availability	Call for Details
MK1690-61A38-IHS2	MS 1690 Focus, MS1690 Handheld Area Imager (LS USB, Stand, Cable, Manual and Holster)	Check Availability	Call for Details
MK1690-61A38-GEHS	MS 1690 Focus, MS1690 Handheld Area Imager (USB, Stand, Health care Software Loaded and No Power supply)	Check Availability	Call for Details
MK1690-61A38-12-A	This part is replaced by 1900GSR-2USB-EZ. MS 1690 Focus, USB Kit. Kit Includes: 2D Imager, USB cable, EasyID Software, Color: Gray		Call for Details
MK1690-61A38-03	MS 1690 Focus, MS1690 Handheld Area Imager (Focus LS USB, Plus OCR, OCR License)	Check Availability	Call for Details
MK1690-61A38	This part is replaced by 1900GSR-2USB. MS 1690 Focus, USB kit. Includes stand, USB cable and user's manual.		Call for Details
MK1690-61A14/E710	MS 1690 Focus, MS1690, RS-232, Stand, Cable to Ingenico E710, Dark gray, user's manual.	Check Availability	Call for Details
MK1690-61A11	MS 1690 Focus, PS/2 Interface with IBM port 9, 10 pin RJ45 male, includes Stand, Cables, User's Manual	Check Availability	Call for Details

Metrologic MS 1690 Focus Details

MS1690 Focus Quick Specs
Depth of Field: (programmable)	0 mm - 230 mm (0” - 9.0”) for 0.33 mm (13 mil) bar code
Field of View:	49 mm W x 19 mm H (1.9” W x 0.8” H) @ 20 mm (0.8”); 264 mm W x 106 mm H (10.4” W x 4.2” H) @ 280 mm (11.0”)
Pitch, Skew:	15°, 15°
Beeper Operation:	7 tones or no beep
Minimum Bar Width:	0.127 mm (5.0 mil)
Dimensions:	183 mm x 67 mm x 108 mm (2.60” x 2.65” x 4.25”)
System Interfaces:	Keyboard Wedge, RS232, Stand Alone Keyboard, USB (low and full speed), IBM
Light Source:	LED 645 nm ± 7.5 nm
Weight:	200 g (7.05 oz)
Indicators (LED):	Blue = unit powered, ready to scan; White = good read; Yellow = in stand
