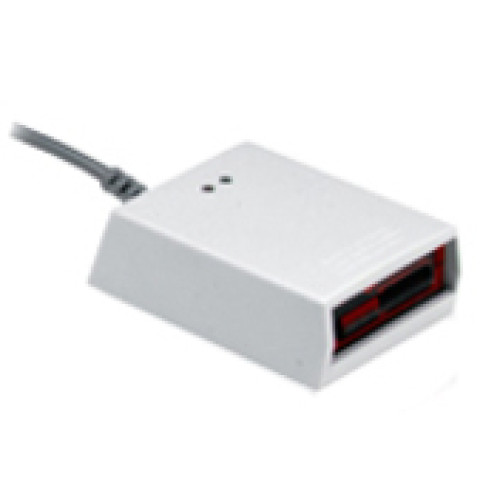

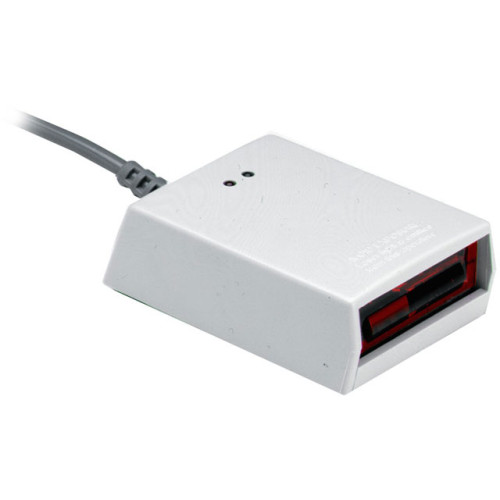

IS4225-41 - Metrologic IS 4225 Bar code Scanner

Featuring high resolution and optical density, the Metrologic IS 4225 delivers outstanding scanning versatility as well as advanced high-speed data scanning, processing and transmission technologies. Incorporating patented activation technology, the IS 4225 can be used as a "hands-free" wearable scanner or a stationary desktop scanner. It is lightweight and compact, fits comfortably and prevents operational fatigue. The breakaway cable safety feature allows operators to quickly break away from tethered host system should a hazard occur while scanning.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
IS4225-41 IS 4225, RS-232, Scanner only. Includes glove.
Information:   |  Specifications  |  Metrologic's IS 4225 page  |
Accessories:   |  Accessories/Options  |

IS4225-41 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • All Standard 1D Symbologies
  • Maximum Scan Resolution: 6.80 mil
  • Depth of Field:
    • 0.50" - 8"@13 mil
    • 0.50" - 4"@7.50 mil
    • 0.50" - 5.50"@10.40 mil
    • 1" - 8"@13 mil
    • 1" - 8"@21 mil

General Information

  • Product Type: Wearable Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: IS4225
  • Product Name: ScanGlove IS4225 Barcode Reader
  • Product Line: ScanGlove

Physical Characteristics

  • Height: 0.9"
  • Width: 1.9"
  • Depth: 2.8"
  • Weight (Approximate): 3.70 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: WEEE
  • Package Contents:
    • ScanGlove IS4225 Barcode Reader
    • RS-232 Cable
    • ScanGlove IS4225 Barcode Reader
    • RS-232 Cable
  • Certifications & Standards:
    • Laser Class:
    • CDRH Class 2 in accordance with IEC 60825-1:1993+A1:1997 +A2:2001
    • IEC Class 2 in accordance with IEC 60825-1:1993+A1:1997 +A2:2001
    • EMC:
    • FCC Class A
    • CISPR Class A
  • Platform Supported: PC
  • Additional Information:
    • Scan Speed: 52 scan lines per second
    • Supported Interfaces:
    • RS232
    • Light Pen Emulation
    • PC Keyboard Wedge
    • Stand Alone Keyboard
    • USB

Power Description

  • Input Voltage: 5 V DC

The Metrologic IS4225-41 is also known as Metrologic Instruments MET-IS4220-41 or IS422541 .
