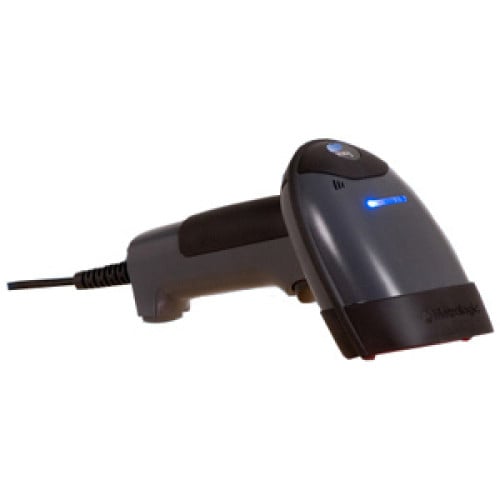

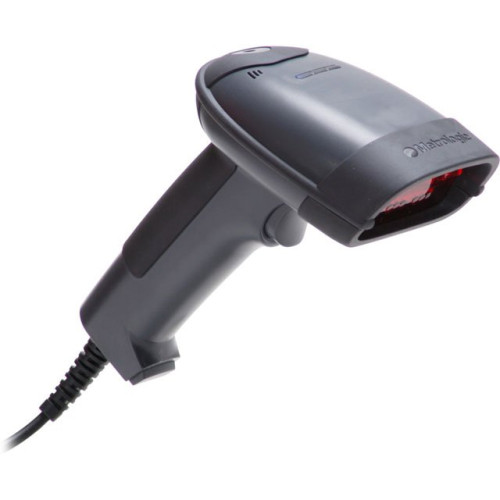

MK1690-61A38 - Metrologic MS 1690 Focus Bar code Scanner

The Metrologic MS 1690 Focus is an omnidirectional scanner capable of reading all standard 1D, PDF417, microPDF, composite, Matrix and Postal Codes. The MS 1690 Focus's rugged housing means it's built for the toughest industrial environments. The Metrologic MS 1690 Focus also features automatic stand detection for convenient in-stand scanning and the firmware can be updated via Flash ROM.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MK1690-61A38 MS 1690 Focus, USB kit. Includes stand, USB cable and user's manual.
Information:   |  Specifications  |  Metrologic's MS 1690 Focus page  |
Accessories:   |  Accessories/Options  |  Metrologic MS 1690 Focus service contract  |

MK1690-61A38 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • RSS
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • UCC/EAN Composite Codes
    • Postal Code
    • Aztec
    • All Standard 1D Symbologies
    • RSS
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • QR Code
    • UCC/EAN Composite Codes
    • Postal Code
    • Aztec
  • Maximum Scan Resolution: 10 mil
  • Depth of Field: 0.50" - 3"@5.20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS1690
  • Product Name: Focus MS1690 Barcode Reader
  • Product Line: Focus

Physical Characteristics

  • Height: 7.2"
  • Width: 1.2"
  • Depth: 4.9"
  • Color:
    • Black
    • Dark Gray
  • Weight (Approximate): 8 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Focus MS1690 Barcode Reader
    • USB HID Keyboard Type A Cable
    • Flex Stand
    • Manuals
    • Focus MS1690 Barcode Reader
    • USB HID Keyboard Type A Cable
    • Flex Stand
    • Manuals
  • Certifications & Standards:
    • RoHS Compliant
    • EMC:
    • FCC Class A
    • IEC60825-1 LED Safety
    • LED Class:
    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeSerialUSBIBM 46XX

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
46-00287B Metrologic Cup Holder, Wall Mountable, Screws, for the Focus MK1690
Ships Free in 3-5 Days
$50.08
Retail $75
Save 33%
46-00147 Metrologic Stand for MS1690 Focus, Weighted, Flexible pole. Non-Cancelable/Non-Returnable. Ships Free Today $26.51
Retail $30
Save 11%

The Metrologic MK1690-61A38 is also known as Metrologic Instruments MET-MK169061A38 or MK169061A38 .
