Photo of Metrologic MK2320KD-61B238 Metrologic logo

Metrologic MS 2320

Full size scanner-scale USB kit. Includes dual USB cables, remote display, power supply, & diamonex glass.


Free Shipping

Ships Today

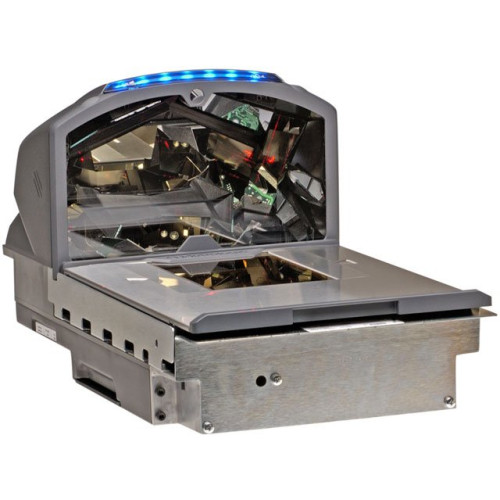

Metrologic MS 2320 Stratos H Scanner

MS 2320 Stratos H is Metrologic's 6-sided 360 degree high performance bioptic scanner/scale series well suited for POS applications supporting narrow enclosures around the vertical tower. MS 2320 Stratos H is designed to allow easy integration into most of today's seated and standing checkout environments. MS 2320 Stratos H features a powered RS232 auxiliary port for integration of a handheld barcode scanner, flash ROM firmware upgrade capability, MetroSet2 PC-based configuring and sapphire or diamonex based horizontal glass.

Full specifications (PDF)

Manufacturer part number: MK2320KD-61B238

Technical Information

  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard 1-D Barcodes
    • RSS-14
    • RSS-Expanded
    • RSS-14 Limited
    • All Standard 1-D Barcodes
    • RSS-14
    • RSS-Expanded
    • RSS-14 Limited
  • Maximum Scan Resolution: 6 mil
  • Depth of Field:
    • 0 mil - 6"@13 mil
    • 0 mil - 8.50"@13 mil

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS2320
  • Product Name: Metrologic StratosH MS2320 In-Counter Barcode Reader
  • Product Line: StratosH

Physical Characteristics

  • Height: 7"
  • Width: 11.5"
  • Depth: 4"
  • Weight (Approximate): 26 lb


  • Host Interface: USB


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: WEEE
  • Platform Supported: PC
