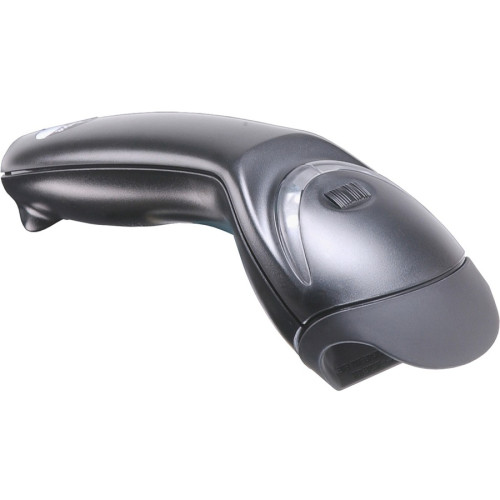

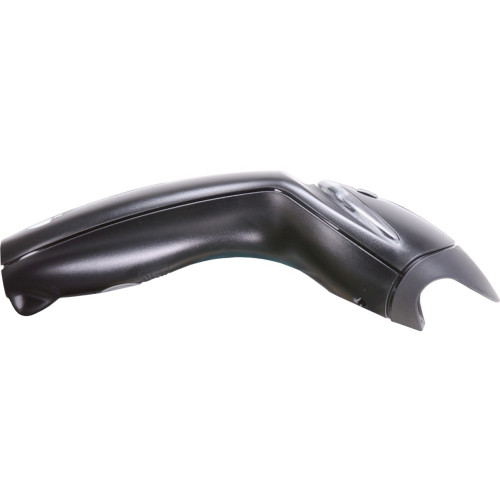

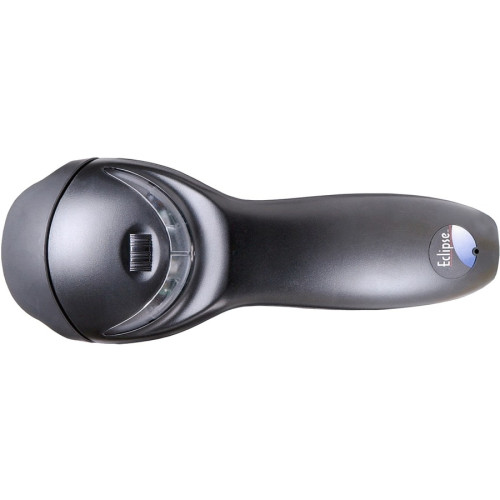

MK5145-31A38 - Metrologic MS 5145 Bar code Scanner

The Metrologic MS 5145 is a single-line, handheld laser scanner. Equipped with CodeGate technology, the MS 5145 can easily target the desired bar code and complete the data transmission with a simple press of a button.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MK5145-31A38 MS 5145, USB Kit, 1D Laser. Includes 5' straight USB cable. Color: Black. Ships Free Today $85.80
Retail $138
Save 37%

MK5145-31A38 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported: Reads standard 1D and GS1 DataBar symbologies
  • Maximum Scan Resolution: 4 mil
  • Depth of Field:
    • 0 mil - 2"@5.20 mil
    • 0 mil - 3"@7.50 mil
    • 0 mil - 4"@10.40 mil
    • 0 mil - 5.50"@13 mil
    • 1" - 7"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS5145-38-3
  • Product Name: Eclipse 5145 Single-Line Laser Scanner
  • Product Line: Eclipse

Physical Characteristics

  • Height: 2"
  • Width: 2.5"
  • Color: Black
  • Length: 6.7"
  • Weight (Approximate): 3.50 oz

Interfaces/Ports

  • Host Interface: USB

Other

  • Certifications & Standards:
    • Laser Class:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • EMC:
    • FCC
    • ICES-003 & EN55022 Class B
  • Additional Information: Supported Interface: USB

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
46-46633 Metrologic Stand (for the MS5145 Eclipse Scanner)
Ships Free in 24-48 Hours
$19.89
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 24-48 Hours
$38.80
Retail $48
Save 19%
SVC5145-1LC5 Honeywell Service Contracts, 5145, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships Free in 24-48 Hours
$32.57
Retail $36

The Metrologic MK5145-31A38 is also known as Metrologic Instruments MET-MK514531A38 or MK514531A38 .
