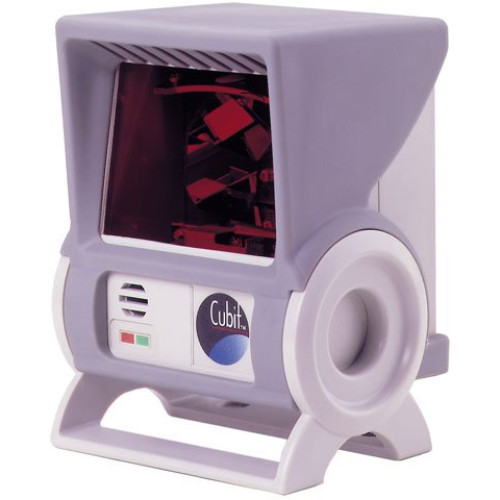

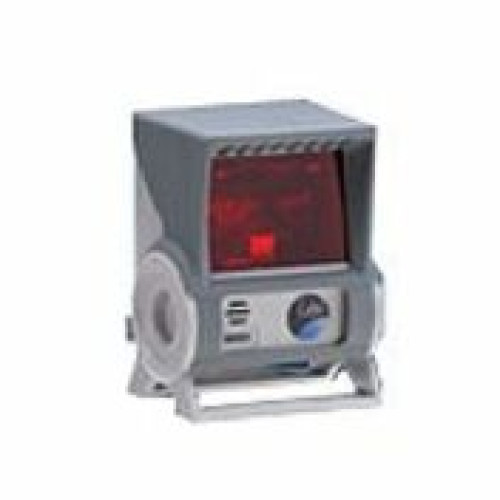

MK6520-71B47 - Metrologic MS 6520 Cubit Bar code Scanner

The Metrologic MS 6520 Cubit is a compact omni-directional bar code scanner for retail presentation scanning applications. MS 6520 Cubit is equipped with a mounting bracket that can be attached securely to a countertop or wall for fixed-mount scanning. The mounting bracket allows for rotation as well with a locking design that gives MS 6520 Cubit 64 degrees of tilt making it perfect for installation underneath check writing and credit card stands. MS 6520 Cubit's housing design allows for added protection and durability to withstand the rigors of even the busiest point-of-sale environment. Projecting a patented omnidirectional scan pattern MS 6520 Cubit can scan and decode all standard bar codes as they are presented in any orientation. MS 6520 Cubit looks good too. Available in three different colors MS 6520 Cubit blends cosmetically with virtually any existing point-of-sale equipment.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MK6520-71B47 MS 6520 Cubit, Cubit Omni Scanner, PC Keyboard wedge Kit, Includes Scanner, Keyboard wedge Cable (Dual DIN), power supply, metal bracket. Color: Gray
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

MK6520-71B47 Details

Technical Information

  • Form Factor: Presentation Scanner
  • Resolution: 5.7 mil(s)
  • Symbologies Supported:
    • All Standard Symbologies
    • RSS
  • Scanner Type: Laser
  • Scan Rate: 1000 lps
  • Interface Options: Keyboard Wedge
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 1 - 4"@5.7mils
    • 0.5 - 4.5"@6.8mils
    • 0 - 6"@10.4mils
    • 0 - 7"@13mils
    • 0.5 - 9.5"@21mils

General Information

  • Manufacturer: Metrologic
  • Product Line: Cubit
  • Product Name: Cubit MS6520 Barcode Scanner

Physical Characteristics

  • Dimensions: 3.25" (82.55mm) x 4.06" (103.12mm) x 5.25" (133.35mm)
  • Weight: 16.2 oz
  • Color: Gray

Other

  • Package Contents:
    • Cubit MS6520 Barcode Scanner
    • 110V Power Supply
    • Metal Bracket Stand
    • Straight Cable
    • Manuals
    • Mounting Hardware
  • Cables Included: Keyboard Wedge

Environmental Conditions

  • Temperature:
    • -20°C (-4°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing

Agency Approvals

  • Agency Approvals:
    • CDRH: Class IIa; EN60825-1:1994/A11:1996 Class 1
    • FCC
    • ICES-003 & EN55022 Class A

The Metrologic MK6520-71B47 is also known as Metrologic Instruments MK6520-71B47 or MK652071B47 .
