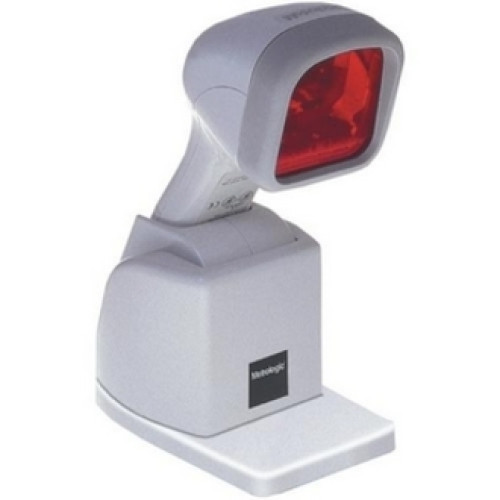

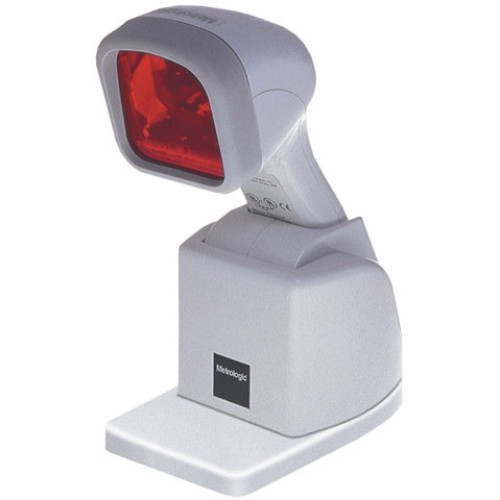

MK6720-32A07 - Metrologic MS 6720 Bar code Scanner

The Metrologic MS 6720 is the first Laser Barcode Scanner to truly bridge the gap between omni-directional fixed projection and handheld Scanners. It incorporates fixed projection performance and patented 20-line scan pattern into the comfortable ergonomic styling of the popular handhelds. With this design Metrologic has engineered a Scanner that transcends any other on the market today. The MS 6720 utilizes a unique patented infrared sensor and control scheme for hands-free projection scanning and fatigue reduced handheld operation. Whether operators choose to present small items to the Scanner or transport the lightweight Scanner to bulkier items the MS 6720 is the perfect choice for many applications. Included with the MS 6720 Scanner is a stationary stand which is ideal for applications where the MS 6720 is being used mostly as a handheld Scanner. This stand was designed for ease of use while still providing sufficient room for fixed presentation. An optional adjustable stand is also available and provides 7 rotational and 9 tilting positions as well as a removable wall mount cup. The MS 6720 features both short-range and long-range activation user-friendly programming reliability and versatility. Operators are sure to appreciate the convenience and flexibility of the MS 6720.

We respond to every email
Part # Description Availability Price Order
MK6720-32A07 MS 6720, USB-Keyboard wedge kit, Adjustable stand, Type A cable, Black
Information:   |  Specifications  |  Metrologic's MS 6720 page  |
Accessories:   |  Accessories/Options  |

MK6720-32A07 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard Symbologies
    • RSS
    • All Standard Symbologies
    • RSS
  • Maximum Scan Resolution: 5.70 mil
  • Depth of Field:
    • 0 mil - 8"@13 mil
    • 0 mil - 4"@5.70 mil
    • 0 mil - 6"@7.50 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS6720
  • Product Name: MS6720 Barcode Reader

Physical Characteristics

  • Height: 8.6"
  • Width: 3"
  • Depth: 2.9"
  • Color: Black
  • Weight (Approximate): 13.40 oz


  • Host Interface: USB


  • Package Contents:
    • MS6720 Barcode Reader
    • Stationary Stand
    • Coiled Type A Locking/Powered Cable
    • Manual
    • Clip
    • MS6720 Barcode Reader
    • Stationary Stand
    • Coiled Type A Locking/Powered Cable
    • Manual
    • Clip
  • Certifications & Standards:
    • Laser Class:
    • IEC 60825-1:1993+A1:1997+A2:2001 Class 1
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class B
  • Additional Information:
    • Supported Interface:
    • Keyboard Wedge
    • USB


  • Limited Warranty: 2 Year

The Metrologic MK6720-32A07 is also known as Metrologic Instruments MK6720-32A07 or MK672032A07 .
