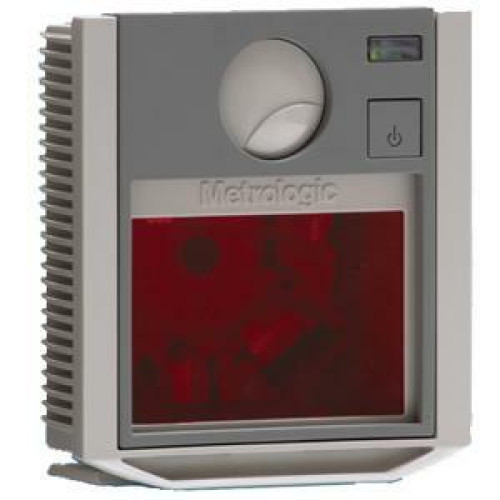

MK7320-71B41 - Metrologic MS 7320 InVista Bar code Scanner

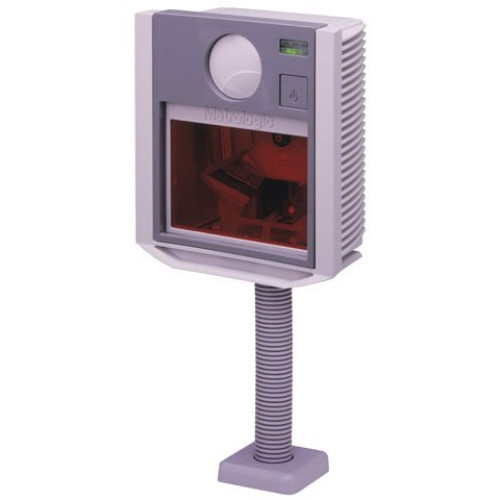

The Metrologic MS 7320 InVista offers an outstanding combination of features versatility performance and durability. This fixed mount laser bar code scanner provides ease of use and high throughput speeds by featuring a large dynamic and aggressive scan volume. MS 7320 InVista scanners are sure to provide a positive influence on the productivity of your check out operations by minimizing operator effort and increasing check out speed. Each MS 7320 InVista is shipped with an integrated EAS deactivation antenna that provides simultaneous scanning and deactivation of security tags which are used to reduce shrink in retail applications. With a field-replaceable outer window damaged windows can now be changed easily eliminating the need to send the entire unit back for repair. The small footprint takes up minimal counter space while maximizing flexibility with the use of the multi-positioning stand. The setup and integration are simplified by using bar code menus or Windows based software. Supporting multiple interfaces MS 7320 InVista is compatible with almost every POS system currently on the market. The RS232 auxiliary port allows for handheld scanners or other peripherals to be connected quickly and easily. With all of the outstanding features end-users are ensured this scanner will meet the present and future needs of the scanning environments for which it is designed - grocery stores convenience stores supermarkets pharmacies and specialty stores.

We respond to every email
Part # Description Availability Price Order
MK7320-71B41 MS 7320 InVista, RS-232 kit. Includes RS-232 cable, power supply, auxilliary RS-232 port & flex stand.
Information:   |  Specifications  |  Metrologic's MS 7320 InVista page  |
Accessories:   |  Accessories/Options  |  Metrologic MS 7320 InVista service contract  |

MK7320-71B41 Details

Technical Information

  • Form Factor: Fixed Mount Scanner
  • Symbologies Supported: All Standard Symbologies
  • Scanner Type: Laser
  • Scan Rate: 2000 lps
  • Interface Options: RS-232 Serial
  • Scan Pattern: Omnidirectional
  • Input Voltage: 110 V AC
  • Depth of Field:
    • 0 - 8.5"@13mils
    • 0 - 1"@5.2mils
    • 0 - 5"@7.5mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.3" (185.42mm) x 6.6" (167.64mm) x 3.9" (99.06mm)
    • 7.3" (185.42mm) x 6.6" (167.64mm) x x 3.9" (99.06mm)
  • Weight: 2.65 lb (1.2 kg)
  • Color: Gray

Agency Approvals

  • Agency Approvals:
    • FCC
    • ICES-003
    • EN55022 Class A
    • CDRH Class IIa
    • EN60825-1:1994A11:1996 Class A

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95%


  • Cables Included: RS-232


  • Manufacturer Warranty: 3 Year(s)
Part # Description Availability Price Order
46-00525 Honeywell Power supply, , North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDC Ships Free Today $27.63
Retail $33
Save 16%

The Metrologic MK7320-71B41 is also known as Metrologic Instruments MET-MS732071B41 or MK732071B41 .
