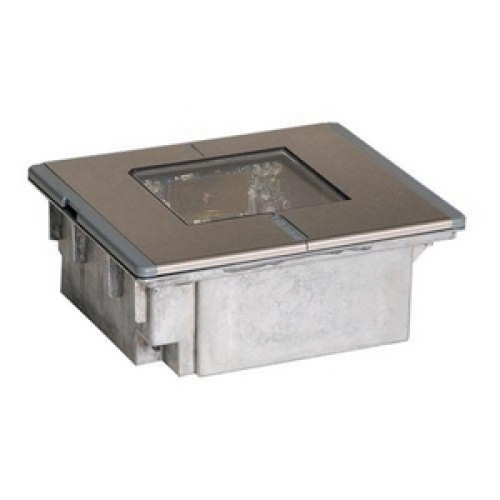

MK7625-71C41 - Metrologic MS 7600 Bar code Scanner

The Metrologic MS 7600 is Metrologic's next generation in-counter laser bar code scanner. This compact hands-free scanner is designed with a dense 20 line omnidirectional scan pattern that helps provide fast efficient throughput with a high first-pass read rate. Each MS 7600 is equipped with an integrated EAS deactivation antenna. The EAS security tag designed to reduce shrink is deactivated and the bar code is scanned with a single pass. These simultaneous operations help improve operator comfort and increase throughput. To further enhance operator efficiency and productivity MS 7600 is equipped with IR laser activation. This allows the user to wake the unit from a power save or sleep mode and read a bar code instantaneously without any delay. Each MS 7600 includes an RS232 auxiliary port that allows for handheld bar code scanners to be connected providing easy scanning of bulky over -sized objects. Other peripherals such as check readers or magnetic stripe readers can also utilize the flexibility of the auxiliary port. The MS 7600 also offers multiple interfaces and data editing making it compatible with almost every POS system on the market today. The combination of performance ruggedness and a myriad of features make the Horizon an ideal choice for grocery retail coupon redemption and a multitude of applications.

We respond to every email
Part # Description Availability Price Order
MK7625-71C41 MS 7600, Series Horizon Scanner Kit (MS7625, Stainless Steel Top, RS-232, 220V, Standard Glass and Fixed)
Information:   |  Specifications  |  Metrologic's MS 7600 page  |
Accessories:   |  Accessories/Options  |  Metrologic MS 7600 service contract  |

MK7625-71C41 Details

Technical Information

  • Form Factor: In Counter Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Scanner Type: Laser
  • Scan Rate: 2000 lps
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5.2 V DC
  • Depth of Field:
    • 0 - 1.5"@5.2mils
    • 0 - 4.5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 0 - 9"@19.5mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.6" (193.04mm) x 9" (228.6mm) x 3.5" (88.9mm)
    • 7.6" (193.04mm) x 9" (228.6mm) x x 3.5" (88.9mm)
  • Weight: 2.88 kg (6.35 lb)
  • Color: Gray


  • Package Contents:
    • Horizon MS7625 Barcode Scanner
    • 220V Power Supply
    • Straight Cable
    • Manuals
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing

Agency Approvals

  • Agency Approvals:
    • IEC 60825-1:1993 + A1:1997 + A2:2001 Class 1
    • FCC
    • ICES-003 & EN55022 Class A
Part # Description Availability Price Order

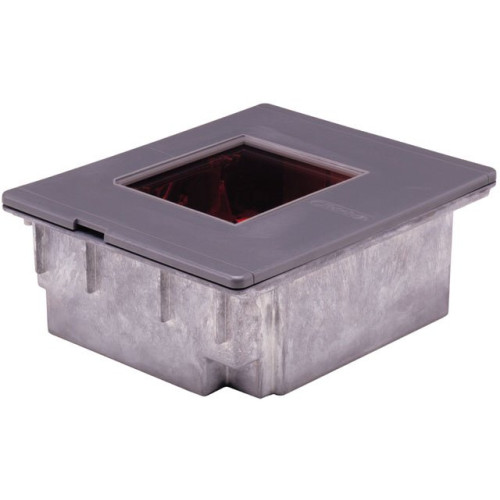

46-46641 Metrologic Counter ring for the MS 7620. Non-Cancelable/Non-Returnable. Ships Free Today $66.65
Retail $103
Save 35%
46-46604 Metrologic Replacement Standard Window, For Stainless Top for the MS7625. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
SVC7600H-5FC5 Honeywell Service Contracts, 7600 Horizon, Full Comprehensi ve, 5 Day Turn, 5 year DayOne
Ships Free in 3-5 Days
Retail $126
Save 24%

The Metrologic MK7625-71C41 is also known as Metrologic Instruments MET-MK7625-71C41 or MK762571C41 .
