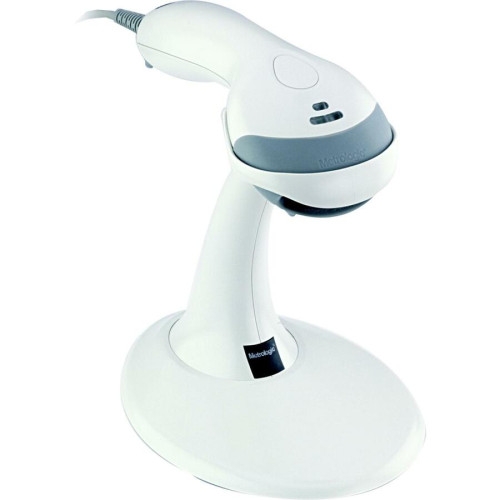

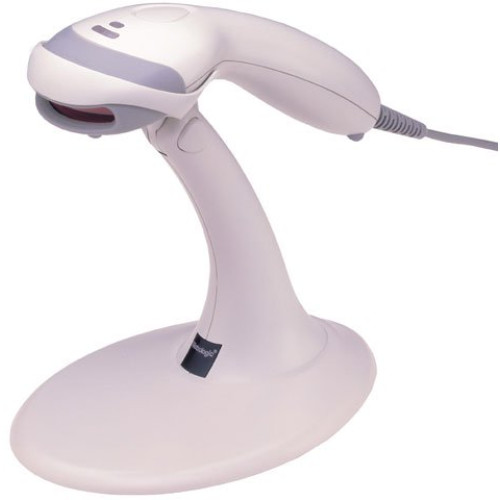

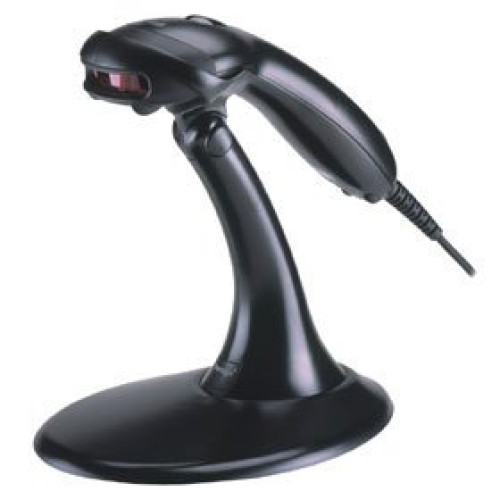

MK9520-32A62 - Metrologic MS 9520 Voyager Bar code Scanner

With a futuristic design and high-performance scanning technology the MS 9520 Voyager is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation Voyager can be used as a handheld and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. The MS 9520 Voyager Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MK9520-32A62 MS 9520 Voyager, Verifone Ruby kit, 1D Laser. Includes Verifone Ruby cable and stand. Color: Black. Ships Free Today $118.73
Retail $190
Save 37%
Information:   |  Specifications  |  Metrologic's MS 9520 Voyager page  |
Accessories:   |  Accessories/Options  |  Metrologic MS 9520 Voyager service contract  |

MK9520-32A62 Details

Technical Information

  • Form Factor:
    • Handheld Scanner
    • Hands Free Scanner
  • Barcode Dimension: 1D
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • All Standard 1D Symbologies
    • RSS-14
    • RSS-Limited
    • RSS-Expanded
  • Scanner Type: Laser
  • Scan Rate: 72 lps
  • Interface Options: Verifone Ruby
  • Interface Connectivity: Corded
  • Scan Pattern: Single Line
  • Input Voltage: 5 V DC
  • Depth of Field:
    • 0 - 2"@5.2mils
    • 0 - 5"@7.5mils
    • 0 - 7"@10.4mils
    • 0 - 8"@13mils
    • 1 - 10"@21mils

General Information

Physical Characteristics

  • Dimensions:
    • 7.8" (198.12mm) x 3.1" (78.74mm) x 1.6" (40.64mm)
    • 7.8" (198.12mm) x 3.1" (78.74mm) x x 1.6" (40.64mm)
  • Weight: 5.25 oz
  • Color: Black

Other

  • Package Contents:
    • Voyager MS9520 Barcode Scanner
    • Mask Stand
    • Coiled Cable
    • MVC
    • Manuals
  • Cables Included: Verifone Ruby

Agency Approvals

  • Agency Approvals:
    • Class 1 IEC 60825-1:1993+A1:1997+A2:2001
    • EN 60825-1:1994+A11:1996+A2:2001
    • FCC
    • EN55022 ClassB
    • ICES-003

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 40°C (104°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 5 to 95% Non-condensing
Part # Description Availability Price Order
MX009-2MA7C Metrologic USB HID Cable, Coiled, Dark gray, for the MS9540/20, MS6520, MS7120 and MS7220. Ships Free Today $58.07
MVC-3MPS-VR Metrologic Cable, Verifone-Ruby, black, 8-pin Mod, 2.3m (7.4'), straight, host power Ships Free Today $42.06
Retail $60
Save 29%
46-46746 Metrologic PowerLink Power supply for MS9540 RS-232 versions
Ships Free in 3-5 Days
$27.20
Retail $36
Save 24%
46-46128 Metrologic Mask Stand for the Voyagers - MS9540, MS9520, MS9544 and MS9524 series scanners. Color: Light Gray Ships Free Today $19.62
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC9520-1LC5 Honeywell Service Contracts, 9520, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships Free in 3-5 Days
$32.57
Retail $36

The Metrologic MK9520-32A62 is also known as Metrologic Instruments MET-MS952032A62 or MK952032A62 .
