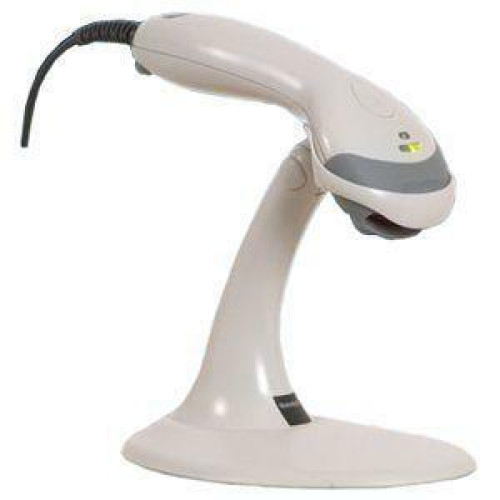

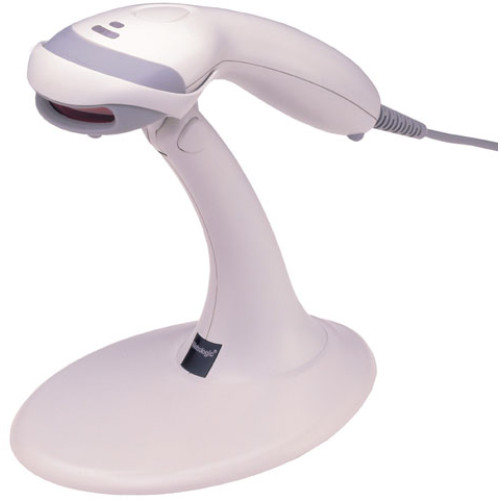

Photo of Metrologic MK9520-37A38 Metrologic logo

Metrologic MS 9520 Voyager

USB kit, 1D Laser, Hardmount Plate. Includes USB cable and stand. Color: Black.


Free Shipping

Ships Today


Metrologic MS 9520 Voyager Scanner

With a futuristic design and high-performance scanning technology the MS 9520 Voyager is clearly the most advanced auto-triggered scanner on the market today. Enabled for both In-stand and Out-of-stand operation Voyager can be used as a handheld and fixed presentation scanner. The feature-packed Voyager comes equipped with PowerLink user-replaceable cables and power supply MetroSelect one-code programming MetroSet Windows-based software configuration utility Bits n' Pieces data editing utility and an Electronic Article Surveillance (EAS) option. The MS 9520 Voyager Voyager is perfect for many applications including point-of-sale inventory control and commercial-warehouse applications. With its aggressive performance and comfortable design Voyager is far and away the most advanced scanner on the market today.

Full specifications (PDF)

Manufacturer part number: MK9520-37A38

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard 1D Symbologies
    • RSS
    • All Standard 1D Symbologies
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field: 0 mil - 8"@13 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9520
  • Product Name: Voyager MS9520 Barcode Reader
  • Product Line: Voyager

Physical Characteristics

  • Height: 7.8"
  • Width: 1.8"
  • Depth: 1.6"
  • Color: Black
  • Weight (Approximate): 5.25 oz


  • Host Interface: USB


  • Certifications & Standards:
    • Laser Class:
    • Laser Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
    • Laser Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class B
  • Additional Information: USB Cable

Power Description

  • Input Voltage: 5 V DC
