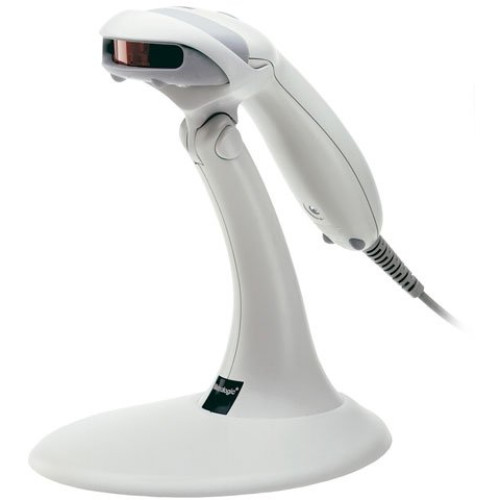

Photo of Metrologic MK9540-72B41 Metrologic logo

Metrologic MS 9540 Voyager

RS-232 kit, 1D Laser. Includes RS-232 cable, power supply, and stand. Color: Gray.

Scanner
$117.42

Free Shipping

Ships in 24-48 hours



Metrologic MS 9540 Voyager Scanner

The MS 9540 Voyager features Metrologic's proprietary CodeGate. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.

Full specifications (PDF)

Manufacturer part number: MK9540-72B41

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Scan Rate: 72 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 8"
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard Symbologies
    • RSS
    • All Standard Symbologies
    • RSS
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 2"@5.20 mil
    • 0 mil - 5"@7.50 mil
    • 0 mil - 7"@10.40 mil
    • 0 mil - 8"@13 mil
    • 1" - 10"@21 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9540
  • Product Name: VoyagerCG MS9540 Barcode Reader
  • Product Line: VoyagerCG

Physical Characteristics

  • Height: 7.8"
  • Width: 3.1"
  • Depth: 1.6"
  • Color: Gray
  • Weight (Approximate): 5.26 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Package Contents:
    • VoyagerCG MS9540 Barcode Reader
    • 110V Power Supply
    • Mask Stand
    • Coiled 9-pin Femal Connector Cable
    • Manuals
    • VoyagerCG MS9540 Barcode Reader
    • 110V Power Supply
    • Mask Stand
    • Coiled 9-pin Femal Connector Cable
    • Manuals
  • Certifications & Standards:
    • Laser Class:
    • Class 1 In accordance with IEC 60825-1:1993+A1:1997+A2:2001
    • Class 1 In accordance with EN 60825-1:1994+A11:1996+A2:2001
    • EMC:
    • FCC
    • ICES-003
    • EN55022 Class B
  • Platform Supported: PC
  • Additional Information:
    • Laser Power: 0.96 mW (peak)
    • Scan Pattern: Single scan line
    • Roll, Pitch, Yaw: 42°, 68°, 52°
    • Termination: 10 pin modular RJ45
    • DC Transformers: Class 2; 5.2 VDC @ 650 mA
    • System Interfaces:
    • PC Keyboard Wedge
    • RS232
    • OCIA
    • Light Pen Emulation
    • Non-decode Emulation
    • IBM 468X/469X
    • Stand Alone Keyboard
    • USB (low speed and full speed)

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 110 V AC
