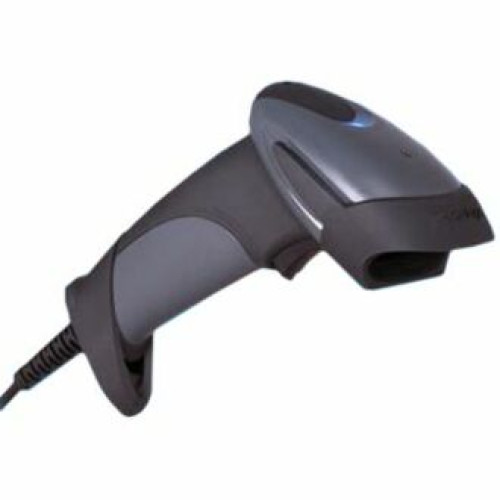

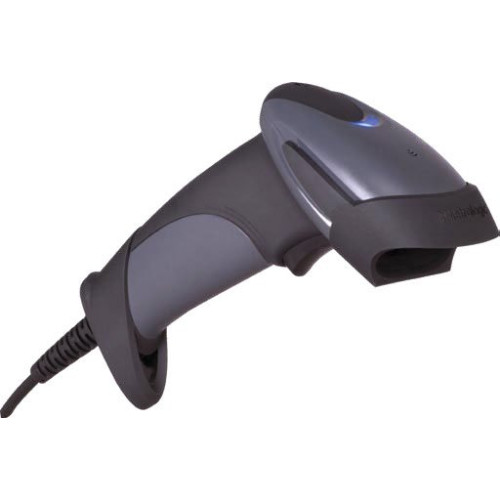

MK9590-61B14 - Metrologic MS 9590 Voyager GS Bar code Scanner

MS 9590 Voyager GS can be configured at no cost by using either the MetroSelect Single-Line Configuration Guide or MetroSet2 software via a RS232 or USB interface. The MS 9590 Voyager GS also has the ability to format barcode data to meet the specific requirements of host systems

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MK9590-61B14 MS9590 VoyagerGS, RS-232 Kit. 1D Scanner, stand, coiled RS-232 PowerLink cable. Color: Dark gray.

MK9590-61B14 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • Code 2 of 5
    • Code 11
    • Codabar
    • MSI Plessey
    • GS1 DataBar
    • Telepen
    • Trioptic
    • Code 39
    • Code 93
    • Code 128
    • UPC/EAN/JAN
    • Code 2 of 5
    • Code 11
    • Codabar
    • MSI Plessey
    • GS1 DataBar
    • Telepen
    • Trioptic
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 3.27" - 4.25"@5.20 mil
    • 1.50" - 7.01"@7.50 mil
    • 1.26" - 10"@10.40 mil
    • 0 mil - 12.01"@13 mil
    • 0.47" - 17.52"@26 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS9590
  • Product Name: VoyagerGS MS9590 Handheld Barcode Reader
  • Product Line: VoyagerGS

Physical Characteristics

  • Height: 3.9"
  • Width: 2.6"
  • Depth: 6.3"
  • Color: Gray
  • Weight (Approximate): 5.29 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Additional Information: Supported Interface:

Warranty

  • Limited Warranty: 5 Year
Part # Description Availability Price Order
53-53000-3 Honeywell Cable, RS-232, black, DB-9 female, 2.9m (9.5'), coiled, 5V external power
Ships Free in 3-5 Days
$15.84
46-00525 Honeywell Power supply, , North American plug, 1A output current, 90 to 255 AC input voltage, 50-60 Hz, 5.2 VDC Ships Free Today $28.15
Retail $33
Save 14%
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC9590-1LC5 Honeywell Service Contracts, 9590, Limited Comprehensive, 1 Day Turn, 5 year DayOne
Ships Free in 3-5 Days
$36.00

The Metrologic MK9590-61B14 is also known as Metrologic Instruments MET-MK9590-61B14 or MK959061B14 .
