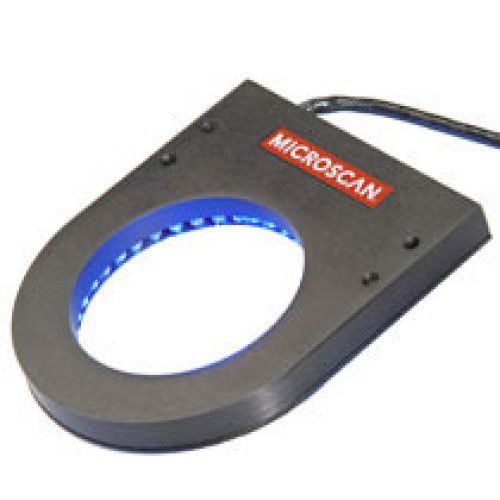

Photo of Microscan Dark Field Illuminators
Microscan logo

Microscan Dark Field Illuminators

Dark Field Illuminators provide effective low angle lighting to targeted regions. These machine vision lights enhance the contrast of surface features such as laser embossed or engraved marks or surface defects, and are particularly suited for applications such as BGA ball placement, reading laser-etched symbologies and inspecting surfaces with geometric contours.
Dark Field Illuminators Options
Part # DescriptionAvailabilityPriceOrder
NER-011600208 Dark Field Illuminator, Nerlite, DF-150-3, Red, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $1,100.00
NER-011600020 Nerlite, DF-150-1, Red, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $801.00
NER-011600021 Nerlite, DF-150-1, Red, Diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $801.00
NER-011600031 Nerlite, DF-150-1, White, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $801.00
NER-011600041 Nerlite, DF-150-1, White, Diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $801.00
NER-011600206 Nerlite, DF-150-3, White, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $1,400.00
NER-011601520 Nerlite, DF-100-1, Red, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $563.00
NER-011601521 Nerlite, DF-100-1, Red, Diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $563.00
NER-011603300 Nerlite, DF-200-1, Red, Diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $1,600.00
NER-011609311 Nerlite, DF-50, Red, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $495.00
NER-011609321 Nerlite, DF-50, White, Non diffuse, Darkfield, 24V continuous, open end cable Ships Free Today $567.00
NER-011609322 DF-50, W LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011609312 DF-50, R LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011603301 DF-200-1, R LED-D, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011601502 DF-100-1, R LED-D, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011600209 DF-150-3, R LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011600207 DF-150-3, W LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011600032 DF-150-1, W LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011600007 DF-150-1, R LED-D, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011600004 DF-150-1, R LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads See Replacement Call for Details
NER-011609332 DF-50 B LED-ND 24V-S 2M [6.6'] Cable with DB-9 Check Availability Call for Details
NER-011609331 DF-50 B LED-ND 24V-C 2M [6.6"] Cable with DB-9 Check Availability Call for Details
NER-011600080 DF-150-1, B LED-ND, 24V-S, 4.5M (15 ft.) Cable with Flying Leads Check Availability Call for Details
NER-011600070 DF-150-1, B LED-ND, 24V-C, 4.5M (15 ft.) Cable with Flying Leads Check Availability Call for Details
NER-011600042 DF-150-1, W LED-D, 24V-S, 4.5M (15 ft.) Cable with Flying Leads Check Availability Call for Details
The Microscan Dark Field Illuminators is also known as the Microscan Systems Dark Field Illuminators .
