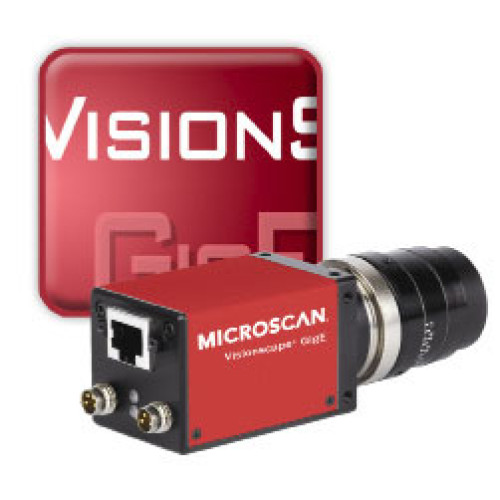

Photo of Microscan Visionscape GigE Solution
Microscan logo

Microscan Visionscape GigE Solution

From an economical single vision smart camera system to a sophisticated eight camera application, the Microscan Visionscape GigE Solution contains all necessary components for a complete, successful machine vision implementation. PC-based Gigabit Ethernet systems leverage standard network components such as cabling, switches and interface cards. Visionscape GigE Solution supports a complete set of Microscan machine vision GigE cameras which, in combination with Visionscape software, allows for rapid deployment of any scale of machine vision solution. Gigabit Ethernet allows for high speed data transfers at one gigabit per second. With the Visionscape GigE Solution, this system can be easily deployed using standard low-cost network components, long cable lengths and no frame grabber boards.
Questions?
1-888-875-7170
We respond to every email

Category

Visionscape GigE Solution Options
Part # DescriptionAvailabilityPriceOrder
98-000115-01 Visionscape GigE Solution, Visionscape GiGe camera, 0.3MP Mono, CMG03, 656x494 pixels CCD
Ships Free in 3-5 Days
$1,056.00
98-000116-01 Visionscape GigE Solution, Visionscape GiGe camera, 0.3MP Color, CMG03c, 656x494 pixels CCD
Ships Free in 3-5 Days
$1,320.00
98-000141-01 Visionscape GigE Solution, Visionscape GiGe camera, 0.3MP Mono, CMG04, 656x494 pixels CCD, 1/2" sensor
Ships Free in 3-5 Days
$1,762.00
98-000117-01 Visionscape GigE Solution, Visionscape GiGe camera, 0.8MP Mono, CMG08, 1032x776 pixels CCD
Ships Free in 3-5 Days
$1,762.00
98-000118-01 Visionscape GigE Solution, Visionscape GiGe camera, 1.3MP Mono, CMG13, 1392x1040 pixels CCD
Ships Free in 3-5 Days
$2,306.00
98-000119-01 Visionscape GigE Solution, Visionscape GiGe camera, 2MP Mono, CMG20, 1624x1236 pixels CCD
Ships Free in 3-5 Days
$2,856.00
98-000120-01 Visionscape GigE Solution, Visionscape GiGe camera, 5MP Mono, CMG50, 2448x2050 pixels CCD
Ships Free in 3-5 Days
$4,946.00
98-000130-01 Visionscape GigE Solution, Visionscape GiGe, PCIe I/O card, 16 inputs/16 outputs, NPN, with cable & terminal
Ships Free in 3-5 Days
$876.00
98-000189-01 Visionscape GigE, Camera, 2MP Color, CMG20c, 1624x1236 pixels CCD
Ships Free in 3-5 Days
$3,186.00
98-000190-01 Visionscape GigE, Camera, 5MP Color, CMG50c, 2448x2050 pixels CCD
Ships Free in 3-5 Days
$5,496.00
98-000191-01 Visionscape GigE, Camera, 1.4MP Mono, CMG14, 1392x1040 pixels CCD
Ships Free in 3-5 Days
$4,016.00
98-000220-01 Visionscape GigE Solution, Visionscape GiGe camera, 0.8MP Color, CMG08c, 1032x776 pixels CCD
Ships Free in 3-5 Days
$1,762.00
98-000221-01 Visionscape GigE Solution, Visionscape GiGe camera, 1.3MP Color, CMG13c, 1392x1040 pixels CCD
Ships Free in 3-5 Days
$2,470.00
98-000222-01 Visionscape GigE Solution, Visionscape GiGe camera, 5MP Mono, CMGC50, 2592x1944 pixels CMOS
Ships Free in 3-5 Days
$1,866.00
98-000230-01 Visionscape GigE Solution, Visionscape GiGe camera, 5MP Color, CMGC50c, 2592x1944 pixels CMOS
Ships Free in 3-5 Days
$2,196.00
98-000260-01 Visionscape GigE Solution, Visionscape GiGe camera, 8MP Mono, CMG80, 3296 x 2472 pixels CCD
Ships Free in 3-5 Days
$13,746.00
98-000267-01 Visionscape GigE Solution, Visionscape GiGe camera, 0.3MP Mono, CMG04h, 640x480 pixels CCD, high speed
Ships Free in 3-5 Days
$3,956.00
GMV-IP74-0SE2 IPAK, SE2, PHARMA PACK INSPECTION SYSTEM
Ships Free in 3-5 Days
$29,995.00
GMV-VGL0-1DD1 Visionscape GigE Solution, Visionscape GigE license dongle with Intellifind
Ships Free in 3-5 Days
$2,046.00
GMV-VGL8-1DD1 Visionscape GigE Solution, Visionscape GigE license dongle with Intellifind + 8 Third party GigE cameras
Ships Free in 3-5 Days
$4,404.00
98-000121-01 Visionscape GigE Solution, Camera - VGA Mono CCD - Power over Ethernet (CMG03-P 656 x 494 pixels) See Replacement Call for Details
98-000114-01 Visionscape GigE Solution, Camera - VGA Color CMOS (CMGC03C - 752 x 480 pixels) See Replacement Call for Details
98-000113-01 Visionscape GigE Solution, Camera - VGA Mono CMOS (CMGC03 - 752 x 480 pixels) See Replacement Call for Details
GMV-VGL8-1DD0 Visionscape GigE License with Intellifind + 8 Third Party GigE Camera Check Availability Call for Details
GMV-VGL4-1DD0 Visionscape GigE License with Intellifind + 4 Third Party GigE Cameras Check Availability Call for Details
GMV-VGL2-1DD0 Visionscape GigE License with Intellifind + 2 Third Party GigE Cameras Check Availability Call for Details
GMV-VGL1-1DD0 Visionscape GigE License with Intellifind + 1 Third Party GigE Cameras Check Availability Call for Details
GMV-VGL0-2DD0 Visionscape GigE Solution, Intellifind Upgrade for Basic Visionscape GigE Software License Check Availability Call for Details
GMV-VGL0-1DD0 Visionscape GigE Solution, Visionscape GigE Software License with Intellifind Check Availability Call for Details
GMV-VGL0-0DD0 Visionscape GigE Solution, Visionscape GigE Software License Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
99-000064-01 Bracket, Smart Series Ring 100 mm to GigE Camera
Ships Free in 3-5 Days
$188.00
99-000063-01 Bracket, Smart Series DOAL to GigE Camera
Ships Free in 3-5 Days
$342.00
99-000062-01 Bracket, Smart Series Ring 60/70 mm to GigE Camera
Ships Free in 3-5 Days
$180.00
98-VS31-0CX0 Analog camera, A152A, SXGA Progressive scan
Ships Free in 3-5 Days
$2,420.00
98-VS07-1XC0 Hi-res camera video and power cable 25 ft./7.5m (for 98-VS01-0CX0 & 98-VS31-0CX0)
Ships Free in 3-5 Days
$370.00
98-VS03-1XC0 Hi-res camera video and power cable 10 ft./3m (for 98-VS01-0CX0 & 98-VS31-0CX0)
Ships Free in 3-5 Days
$335.00
98-CO206 Lens extension tube set 0.5, 1, 5, 10, 20, 40 mm
Ships Free in 3-5 Days
$160.00
98-92800577 Lens 75 mm F/3.9-32, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800576 Lens 50 mm F/2.8-22, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800575 Lens 35 mm F/2.1-22, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800574 Lens 25 mm F/1.6-16, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800573 Lens 16 mm F/1.4-16, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800572 Lens 12 mm F/1.8-16, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800571 Lens 8 mm F/1.4-16, Front thread 25.5 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$424.00
98-92800471 Lens extension tube, 5 mm (C-CS mount adapter)
Ships Free in 3-5 Days
$44.00
98-92800372 Lens, Polarizing filter, 27 mm, P0.5
Ships Free in 3-5 Days
$112.00
98-92800371 Lens, Polarizing filter, 25.5 mm, P0.5
Ships Free in 3-5 Days
$112.00
98-92800311 Lens, Skylight UV filter, 25.5 mm
Ships Free in 3-5 Days
$84.00
98-030161700 Cable, diect breakout to 4 cameras, D-Sub, 8"
Ships Free in 3-5 Days
$485.00
98-001904175 Calibration target for 30.8 mm x 49.5 mm field of view
Ships Free in 3-5 Days
$1,395.00
98-001904101 Calibration target for 158 mm x 254 mm field of view
Ships Free in 3-5 Days
$1,395.00
98-001904100 Calibration target for 94.7 mm x 152 mm field of view
Ships Free in 3-5 Days
$1,395.00
98-001904099 Calibration target for 63.1 mm x 101 mm field of view
Ships Free in 3-5 Days
$1,395.00
98-001904098 Calibration target for 47.3 mm x 76.1 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904097 Calibration target for 20.5 mm x 33.0 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904096 Calibration target for 14.0 mm x 22.5 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904095 Calibration target for 9.33 mm x 15.0 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904094 Calibration target for 6.34 mm x 10.2 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904093 Calibration target for 4.20 mm x 6.75 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904092 Calibration target for 2.80 mm x 4.50 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-001904091 Calibration target for 1.87 mm x 3.0 mm field of view
Ships Free in 3-5 Days
$1,536.00
98-000259-01 Lens 25 mm F/1.4-16, Front thread 27 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$458.00
98-000258-01 Lens 16 mm F/1.4-16, Front thread 27 mm P 0.5 mm, 2/3" C-mount
Ships Free in 3-5 Days
$458.00
98-000257-01 Lens 12.5 mm F/1.4-close, Front thread 40.5 mm P 0.5 mm, 1" C-mount
Ships Free in 3-5 Days
$458.00
98-000226-01 QX Hawk, Lens protection housing, long (up to 72 mm)
Ships Free in 3-5 Days
$390.00
98-000218-01 QX Hawk, Lens protection housing, standard lenght (up to 48 mm)
Ships Free in 3-5 Days
$372.00
98-000199-01 Visionscape GigE, Demo Kit, Licence dongle, no camera, Power supply, cables, lens
Ships Free in 3-5 Days
$3,856.00
98-000142-01 Visionscape GiGe, PCIe I/O card, 16 inputs/16 outputs, PNP, with cable & terminal
Ships Free in 3-5 Days
$882.00
98-000140-01 Visionscape GigE Solution, Single Port GigE Network Interface Card PCIe
Ships Free in 3-5 Days
$160.00
98-000138-01 Visionscape GigE Camera Power supply 24v, US/EU/UK
Ships Free in 3-5 Days
$116.00
98-000134-01 CAT6 Ethernet Cable Jack Screws to RJ45 High Flex 5 m
Ships Free in 3-5 Days
$128.00
98-000133-01 CAT6 Ethernet Cable Jack Screws to RJ45 High Flex 2 m
Ships Free in 3-5 Days
$100.00
98-000132-01 Visionscape GigE Solution, Dual Port GigE Network Interface Card PCIe
Ships Free in 3-5 Days
$442.00
98-000130-01 Visionscape GigE Solution, Visionscape GiGe, PCIe I/O card, 16 inputs/16 outputs, NPN, with cable & terminal
Ships Free in 3-5 Days
$876.00
98-000129-01 Visionscape GiGe camera, power cable, M8 3 pin, 5m, Open ended
Ships Free in 3-5 Days
$88.00
98-000126-01 Visionscape GiGe camera, trigger and strobe cable, M8 4 pin, 5m, Open ended
Ships Free in 3-5 Days
$94.00
The Microscan Visionscape GigE Solution is also known as the Microscan Systems Visionscape GigE Solution .
