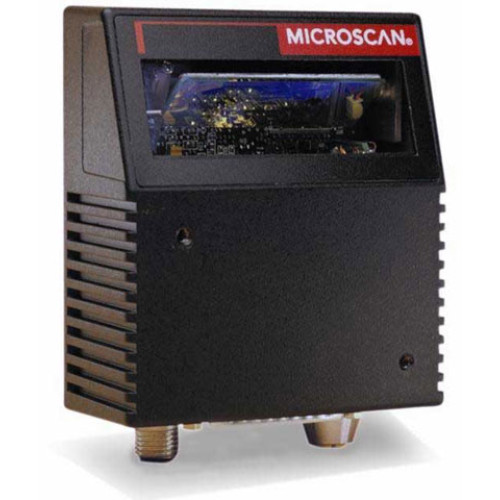

Photo of Microscan MS860
Microscan logo

Microscan MS860 Scanner

This product is discontinued and replaced by the
Microscan QX870 Microscan
QX870
The Microscan MS860 is ideal for industrial scanning or wherever a fixed-placement scanner is needed. The MS860 makes reading bar codes and stacked 2D codes easy. Push-button calibration and a fully programmable feature set enable you to quickly and easily configure the scanner to meet your needs. Raster settings are programmable to read multiple symbols at different locations or at varying distances.
MS860 Options
Part # DescriptionAvailabilityPriceOrder
FIS-0860-0008G MS860, Extended Range, Middle Focus, RS-232/422/485, 10-28VDC, Sweeping Raster Check Availability Call for Details
FIS-0860-0007G MS860, Extended Range, Near Focus, RS-232/422/485, 10-28VDC, Sweeping Raster Check Availability Call for Details
FIS-0860-0004G MS860, Extended Range, RS-232/422/485, 10-28VDC, Sweeping Raster Check Availability Call for Details
FIS-0860-0003G This part is replaced by FIS-0870-0006G.
MS860, High Density, RS-232/422/485, 10-28VDC, Sweeping Raster
See Replacement Call for Details
FIS-0860-0002G This part is replaced by FIS-0870-0005G.
MS860, Medium Density, RS-232/422/485, 10-28VDC, Sweeping Raster
See Replacement Call for Details
FIS-0860-0001G This part is replaced by FIS-0870-0004G.
MS860, Low Density, RS-232/422/485, 10-28VDC, Sweeping Raster
See Replacement Call for Details

Microscan MS860 Details

Watch a video showing the MS860 and the MS-Connect 210 in a daisy-chain configuration.

The MS860 makes reading bar codes and stacked 2D codes easy. Push-button calibration and a fully programmable feature set enable you to quickly and easily configure the scanner to meet your needs. Raster settings are programmable to read multiple symbols at different locations or at varying distances.

Easy to setup, the MS860’s push-button setup will save installers of all skill levels valuable time. Pressing the EZ button initiates the calibration process to optimize the MS860’s settings for each bar code type and setup. This maximizes performance and can be done onsite.

By combining flexible features with ease of use, the MS860 is adaptable to a wide variety of bar code applications across multiple industries with operators of varying experience levels.

Features:
 - Scans/second: 300-1200
 - Read range: 1 to 42" (25 to 1067 mm)
 - Laser/Raster Framing
 - Real-Time Feedback

Calibration
Out of the box setup is simplified with the 860’s unique calibration feature. Simply place your bar code in front of the scanner and push the EZ button to initiate calibration. Motor speed, gain, tracking, and laser power are all self-calibrated in the MS860 to optimize settings specifically to your bar code.

Push-Button Setup

The EZ button puts power at your fingertips. Three programmable positions can be used to quickly perform complex tasks. EZ button user-selectable functions include:

 - Read Rate  - Calibration
 - Auto Framing  - Save for Power-on
 - Sleep Mode  - Load New Master

Intelligent Raster
In addition to sweep angle and speed controls, the MS860’s programmable raster features intelligent auto framing technology. Advanced software will automatically frame the raster height and width of the laser to match the bar code symbol. This allows the scanner to selectively target specific bar codes in a single read cycle.

High Scan Speed and Long Read Range
The MS860’s high scan speed coupled with long read range and wide sweep angle provide maximum flexibility for addressing applications with multiple symbols, different locations, or a wide range of distances.

Real-Time Feedback
Illuminated LEDs on the side of the scanner and a green flash LED projecting from the front window provide visual confirmation of the scanner’s performance. The green flash LED is visible within a complete 360 degree radius from the scanner.

Symbologies:
MS860 reads multiple symbologies and traditional bar codes, including PDF417, MicroPDF417, RSS/Composite, Pharmacode, Code 39, Code 128, Code 93, Codabar, UPC/EAN and I2 of 5.

The Microscan MS860 is also known as the Microscan Systems MS860 .
