The Microscan MS-Q Basic imager's advanced "dual decode zone" technology allows the user to easily capture 2D symbols and linear barcodes at varying distances, from 2 to 20 feet. Lightening fast processing speeds add to the MS-Q Basic's ability to acquire and decode multiple symbologies within seconds of each other. All MS-Q Basic imagers feature point and click targeting with a red laser spot to quickly center the symbol in the field. Three configuration options (Cabled, Batch and Bluetooth) allow effortless connectivity.

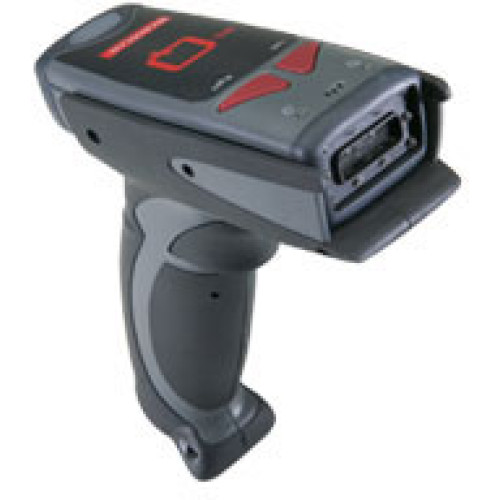

The MS-Q Basic Imager is a
portable handheld solution for reading both bar codes and 2D
symbols. MS-Q Basic reads a wide range of bar code symbols created
from high contrast marking methods such as thermal transfer
printing.
Read Area:
The MS-Q Basic imager's advanced "dual-decode
zone" technology allows the user to easily capture 2D
symbols and linear bar codes at varying distances from 2 to
20" (50.8 to 508 mm). This wide read area allows the symbols
to be decoded fast and reliably.
Lightning fast processing speeds also add to the MS-Q Basic's
ability to acquire and decode multiple symbologies within
seconds of each other, with no adjustment of the imager
required.
Ease of Use:
All MS-Q Basic imagers feature point-and-click targeting with a
red laser spot to quickly center the symbol in the field of
view. Beeper, vibrator or multi-purpose LEDs provide
real-time feedback to signal successful decodes.
Applications:
The MS-Q Basic imager is a strong reading solution for any
application needing to read linear bar codes and 2D
symbologies with a portable handheld device.
System Integration:
All MS-Q Basic imagers are available in 3 configurations options
that provide effortless connectivity:
Batch:
A wireless way to collect thousands of
decoded symbols for later download, capable of performing
more than 4000 reads from a single battery charge and buffer
a minimum of 1MB of data in non-volatile memory
Cabled:
Cabled units can be connected
two ways:
USB and RS-232
Bluetooth:
Wireless data transmission using
Bluetooth™ class 1 radio with a 328' (100 m) operation
range.
MS-Q Basic
Accessories:
- Long-life 1300 mA lithium-Ion battery
- Bluetooth modem (serial gateway) with 328' (100 m) operation range
- Two-bay battery charger
- RS-232 kit
Symbologies:
MS-Q Basic reads multiple symbologies and traditional
bar codes including Data Matrix, RSS Family, PDF417, Micro PDF417 and Standard linear bar codes.
