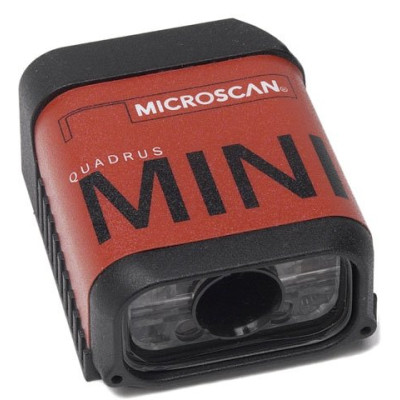

Photo of Microscan Quadrus Mini
Microscan logo

Microscan Quadrus Mini Scanner

This product is discontinued and replaced by the
Microscan Mini Hawk Microscan
Mini Hawk
The Quadrus Mini is the world's smallest high resolution imager and the first to offer true autofocus for ultimate flexibility in factory automation and electronics product identification. It is the ideal imager for automation engineers who need flexibility to read any code, at any distance, at any speed. Quadrus Mini reads both linear barcodes and 2D codes in any orientation, while in motion. EZ button setup symbol locator and visible performance indicators provide ease of use while large area reading and small form factor allow for positioning flexibility.
Quadrus Mini Options
Part # DescriptionAvailabilityPriceOrder
FIS-6300-1006G This part is replaced by FIS-6300-1016G.
Quadrus Mini, Megapixel Imager, Ultra High Density, ESD Safe, USB, 5VDC
See Replacement Call for Details
FIS-6300-1005G This part is replaced by FIS-6300-1015G.
Quadrus Mini, Megapixel Imager, High Density, ESD Safe, USB, 5VDC
See Replacement Call for Details
FIS-6300-1004G This part is replaced by FIS-6300-1014G.
Quadrus Mini, Megapixel Imager, Standard Density, ESD Safe, USB, 5VDC
See Replacement Call for Details
FIS-6300-1003G This part is replaced by FIS-6300-1013G.
Quadrus Mini, Megapixel Imager, Ultra High Density, ESD Safe, RS-232/422/485, 5VDC
See Replacement Call for Details
FIS-6300-1002G This part is replaced by FIS-6300-1012G.
Quadrus Mini, Megapixel Imager, High Density, ESD Safe, RS-232/422/485, 5VDC
See Replacement Call for Details
FIS-6300-1001G This part is replaced by FIS-6300-1011G.
Quadrus Mini, Megapixel Imager, Standard Density, ESD Safe, RS-232/422/485, 5VDC
See Replacement Call for Details
FIS-6300-0016G This part is replaced by FIS-6300-4004G.
Quadrus Mini, Mega Imager, Standard D, USB+IO, 5VDC, Qmode
See Replacement Call for Details
FIS-6300-0015G This part is replaced by FIS-6300-4006G.
Quadrus Mini, Megapixel Imager, Ultra High Density, USB+I/O, 5VDC
See Replacement Call for Details
FIS-6300-0014G This part is replaced by FIS-6300-4005G.
Quadrus Mini, Megapixel Imager, High Density, USB+I/O, 5VDC
See Replacement Call for Details
FIS-6300-0013G This part is replaced by FIS-6300-4010G.
Quadrus Mini, Megapixel Imager, Standard Density, USB+I/O, 5VDC
See Replacement Call for Details
FIS-6300-0012G This part is replaced by FIS-6300-4012G.
Quadrus Mini, Megapixel Imager, Ultra High Density, USB, 5VDC, Q Mode
See Replacement Call for Details
FIS-6300-0011G This part is replaced by FIS-6300-4011G.
Quadrus Mini, Megapixel Imager, High Density, USB, 5VDC, Q Mode
See Replacement Call for Details
FIS-6300-0010G This part is replaced by FIS-6300-0016G.
Quadrus Mini, Megapixel Imager, Standard Density, USB, 5VDC, Q Mode
See Replacement Call for Details
FIS-6300-0009G This part is replaced by FIS-6300-4009G.
Quadrus Mini, Megapixel Imager, Ultra High Density, RS-232/422/485, 5VDC, Q Mode
See Replacement Call for Details
FIS-6300-0008G This part is replaced by FIS-6300-4008G.
Quadrus Mini, Megapixel Imager, High Density, RS-232/422/485, 5VDC, Q Mode
See Replacement Call for Details
FIS-6300-0007G This part is replaced by FIS-6300-4007G.
Quadrus Mini, Megapixel Imager, Standard Density, RS-232/422/485, 5VDC, Q Mode
See Replacement Call for Details
FIS-6300-0006G This part is replaced by FIS-6300-4006G.
Quadrus Mini, Megapixel Imager, Ultra High Density, USB, 5VDC
See Replacement Call for Details
FIS-6300-0005G This part is replaced by FIS-6300-4005G.
Quadrus Mini, Megapixel Imager, High Density, USB, 5VDC
See Replacement Call for Details
FIS-6300-0004G This part is replaced by FIS-6300-0013G.
Quadrus Mini, Megapixel Imager, Standard Density, USB, 5VDC
See Replacement Call for Details
FIS-6300-0003G This part is replaced by FIS-6300-4003G.
Quadrus Mini, Ultra High Density Megapixel Imager, RS-232/422/485, 5VDC
See Replacement Call for Details
FIS-6300-0002G This part is replaced by FIS-6300-4002G.
Quadrus Mini, High Density Megapixel Imager, RS-232/422/485, 5VDC
See Replacement Call for Details
FIS-6300-0001G This part is replaced by FIS-6300-4001G.
Quadrus Mini, Standard Density Megapixel Imager, RS-232/422/485, 5VDC
See Replacement Call for Details

Microscan Quadrus Mini Details

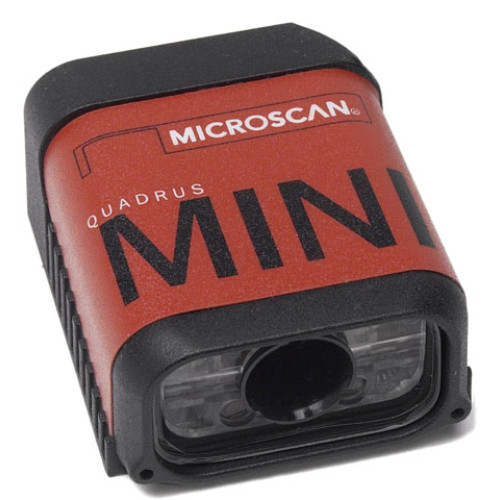

Quadrus Mini
The Quadrus Mini is the world's smallest high resolution imager and the first to offer true auto focus for ultimate flexibility in factory automation and electronics product identification.

It is the ideal imager for automation engineers who need flexibility to read any code, at any distance, at any speed. Quadrus Mini reads both linear bar codes and 2D codes in any orientation, while in motion. EZ button setup, symbol locator, and visible performance indicators provide ease of use while large area reading and small form factor allow for positioning flexibility.

Highlights:
 True autofocus
 Up to 10 decodes/second
 Focal range: 2 to 6" (50.8 to 152.4 mm)
 Read performance LEDs
 Internal diagnostics

Autofocus
Position your symbol within the field of view and push the EZ button for a true autofocus experience. Quadrus Mini automatically adjusts for distance to focus on the symbol and sets internal parameters to optimize reading of symbol.

Mega Pixel Processing
Mega Pixel processing allows for reading multiple small, high density codes or long 1D codes. Quadrus MINI can read down to 3.3 mil high density codes and can decode up to 100 symbols within the field of view in a single read capture. Three optical versions are available.

Compact Shape and Size

Quadrus MINI is the world's smallest high performance imager, measuring 1" (25.2 mm) height x 1.8" (45.7 mm) width x 2.10" (53.3) length and weighs less than 2 ounces (57 g). The short height is especially useful for fitting in small spaces under conveyors and the light weight for mounting on robotic machinery.

Wide Field of View
High resolution zero-distortion optics, diffractive full field illumination, and a wide scan window allow linear and 2D codes as large as 2" (50.8 mm) square to be read as close as 1" (25.4 mm) with optional right angle mirror.

Dynamic, Omni-Directional Reading
The Quadrus Mini decodes linear bar codes or 2D codes omni-directionally in moving applications at speeds up to 100 feet per minute (0.5 meters/second).

High Data Level Output
2D codes can have a high level of data capacity. Quadrus Mini maintains high decode rates to process and output large amounts of data in milliseconds allowing for quick ?back to back' reading of products.

Push-Button Setup
The EZ button is a powerful setup feature. Three programmable positions can be used to quickly perform complex tasks. EZ button user-selectable functions include:
Read Rate
Autofocus/Calibration
Save for Power-on
Load New Master
Sleep Mode

Symbologies:

2D Symbologies

PDF417

RSS (linear & stacked)

Micro PDF

Pharmacode

Code 39

Code 128

Code 93

Codabar

UPC/EAN

I2 of 5
The Microscan Quadrus Mini is also known as the Microscan Systems Quadrus Mini .
