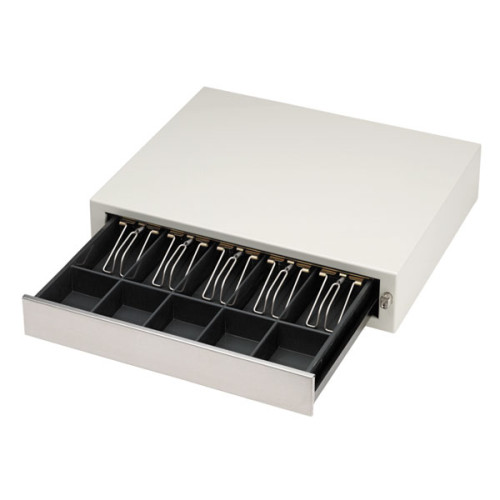

MMF ECD232 Cash Drawer

The MMF ECD232 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Compatible with most of today's microcomputers, the MMF ECD232 is ideal. The ECD232 contains a specially designed relay board that recognizes the signal from the computer through the RS-232 serial communication port for automatic drawer opening sequence. ECD232 is available with a 25 or 9 pin female D-Sub connector or a 25 pin male D-Sub connector.
Questions?
1-888-875-7170
We respond to every email
ECD232 Options
Part # DescriptionAvailabilityPriceOrder
225-32000B-89 ECD232, 18.8" W x 19.75" D x 3.87" H, serial interface (9-pin female connector). Includes bill tray & power supply. Color: putty. Check Availability Call for Details
225-32000B-04 ECD232, 18.8" W x 19.75" D x 3.87" H, serial interface (9-pin female connector). Includes bill tray & power supply. Color: black. Check Availability Call for Details
225-320002-89 ECD232, 18.8" W x 19.75" D x 3.87" H, serial interface (25-pin female connector). Includes bill tray & power supply. Color: putty. Check Availability Call for Details
225-2232ND-89 ECD232, 18.8" W x 15.18" D x 3.87" H, addressable serial interface (allows manual configuration of drawer). Includes bill tray, 25-pin male/female RS-232 Y-cable & power supply. Color: putty. Check Availability Call for Details
225-22000B-04 ECD232, 18.8" W x 15.18" D x 3.87" H, serial interface (9-pin male connector). Includes bill tray & power supply. Color: black. Check Availability Call for Details
