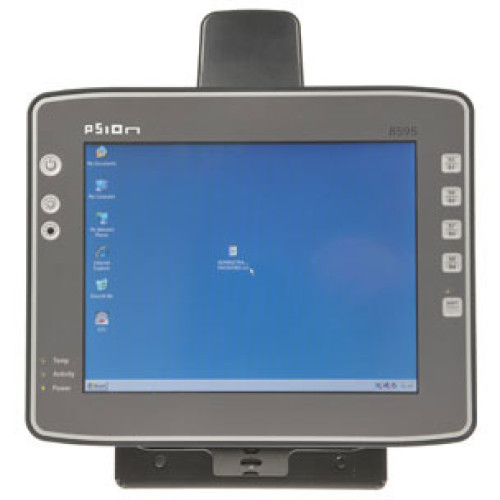

Motorola PSION 8585/8595 Terminal

The Motorola PSION 8585/8595 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The 8585 and 8595 are the latest rugged vehicle mount computers designed and built for the tough demands of such environments as warehouses, ports, manufacturing plants and airports. These rugged vehicle mount computers are compact and still provide full PC functionality with a Windows XP or Windows 7 operating system. Thus, the 8585 and 8595 ensure your workers are equipped with the tools they need to get the job done efficiently and effectively.
Questions?
1-888-875-7170
We respond to every email
PSION 8585/8595 Options
Part # DescriptionAvailabilityPriceOrder
9500D2C1BX4A2B1X PSION 8595, 12 XGA (1024X768), 1 GHz AMD G-T40R, STANDARD DISPLAY, CFAST 16 GB, 2 GB RAM, 12/24V, WINDOWS EMBEDDED Standard 7, ENGLISH, PCIEMINICARD 802.11A/B/G/N, PREPARED FOR EXTERNAL ANTENNA, 5 VDC AT PIN 9 OF COM1, SCREEN BLANKING See Replacement Call for Details
9500B2D0AX1A0B0X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 4 GB, 1 GB RAM, 24/48 V (60W), WINDOWS XP EMBEDDED, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF See Replacement Call for Details
8500E2E1AX8A0B0X PSION 8585, 10" SVGA (800X600), 1 GHz AMD G-T40E DUAL CORE, STANDARD DISPLAY, CFAST 32 GB, 2 GB RAM, 24/48V (60 W), WINDOWS EMBEDDED STANDARD 7 64BIT, ENGLISH, PCLEMINICARD 802.11a/b/g/N, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1 See Replacement Call for Details
8500E2B1AX4A3B0X PSION 8585, 10 SVGA (800X600), 1 GHz DUAL CORE AMD G-T40E, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 24/48V, WINDOWS EMB Standard 7, ENGLISH, PCLEMINICARD 802.11a/b/g/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF See Replacement Call for Details
8500D2C1AX3A4B0X PSION 8585/8595, 10" SVGA (800x600), 1 GHz AMD G-T40R, Standard Display, CFast 16 GB, 2 GB RAM, 12/24V, Windows XP Professional, English, Ethernet Mini PCIe Card, 5 VDC at Pin 9 of COM1, Auto switch-off See Replacement Call for Details
8500D2B1BX4A3B0X PSION 8585, 10" SVGA (800X600), 1 GHz AMD G-T40R, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 12/24V, WINDOWS EMBEDDED Standard 7, ENGLISH, PCIEMINICARD 802.11A/B/G/N, LOW PROFILE ANTENNA 2.4/5 GHz 0dBi LOW CAP, 5 VDC AT PIN 9 OF COM1, AUTO S See Replacement Call for Details
8500D2B1AX5A3B0X PSION 8585, 10 SVGA (800X600), 1 GHz AMD G-T40R, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 24/48V (60W), WINDOWS EMBEDDED STANDARD 2009, ENGLISH, PCIEMINICARD, 802.11A/B/G/N, LOW PROFILE ANTENNA, 2.4/5 GHz, 0dBi, LOW CAP, 5 VDC AT PIN See Replacement Call for Details
8500D2B1AX4A3B0X PSION 8585, 10 SVGA (800X600), 1 GHz AMD G-T40R, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 24/48V (60W), WINDOWS EMBEDDED Standard 7, ENGLISH, PCIEMINICARD 802.11A/B/G/N, LOW PROFILE ANTENNA, 2.4 / 5 GHz, 0dBi, 5 VDC AT PIN 9 OF COM1, AUTO See Replacement Call for Details
8500B2D0AX1A0B0X PSION 8585, 10 SVGA (800X600), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 4 GB, 1 GB RAM, 24/48 V (60W), WINDOWS XP EMBEDDED, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF See Replacement Call for Details
8500B2C0AX3A0B0X PSION 8585, 10 SVGA (800X600), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 16 GB, 1 GB RAM, 24/48 V (60W), WINDOWS XP PRO, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF See Replacement Call for Details
8500B2B0AX4A0B0X PSION 8585, 10 SVGA (800X600), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 8 GB, 1 GB RAM, 24/48 V (60W), WINDOWS EMBEDDED Standard 7, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF See Replacement Call for Details
9500E3E1BX9A3B1X PSION 8585/8595, 12" XGA, 1 GHz AMD G-T40E DUAL CORE, SUNLIGHT READABLE DISP, CFAST 32 GB, 2 GB RAM, 12/24V, Win Emb Pro 7 64Bit, English, PCleMiniCard 802.11a/b/g/n Low Profile Ant 2.4/5 GHz 0dBi Low Cap, 5 VDC at Pin 9 of COM1, Screen Blanking Check Availability Call for Details
9500E3C1BX8A3B1X PSION 8585/8595, 12" XGA, 1 GHz AMD G-T40E DUAL CORE, SUNLIGHT READABLE DISP, CFAST 16 GB, 2 GB RAM, 12/24V, Win Emb Standard 7 64BIT, English, PCleMiniCard 802.11a/b/g/n Low Profile Ant 2.4/5 GHz 0dBi Low Cap, 5 VDC at Pin 9 of COM1, Screen Blanking Check Availability Call for Details
9500E3C1BX4A3B1X PSION 8585/8595, 12" XGA, 1 GHz AMD G-T40E DUAL CORE, SUNLIGHT READABLE DISP, CFAST 16 GB, 2 GB RAM, 12/24V, Win Emb Standard 7, English, PCleMiniCard 802.11a/b/g/n Low Profile Ant 2.4/5 GHz 0dBi Low Cap, 5 VDC at Pin 9 of COM1, Screen Blanking Check Availability Call for Details
9500E2E1AX9A0B0X PSION 8595, 12 XGA (1024X768), 1 GHz AMD G-T40E DUAL CORE, SUNLIGHT READABLE DISPLAY, CFAST 32 GB, 2 GB RAM, 12/24V, WINDOWS PRO 7 64BIT, ENGLISH, PCIEMINICARD 802.11A/B/G/N, 2.4 / 5 GHz, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1 Check Availability Call for Details
9500E2E1AX6A0B0X PSION 8595, 12"XGA (1024X768), 1 GHz AMD G-T40E DUAL CORE, STANDARD DISPLAY, CFAST 32 GB, 2 GB RAM, 24/48V (60 W), WINDOWS 7 PROFESSIONAL Check Availability Call for Details
9500E2C1BX6A0B0X PSION 8585/8595, 12" XGA, 1 GHz AMD G-T40E DUAL CORE, Standard Disp, CFAST 16 GB, 2 GB RAM, 12/24 V, Win 7 Pro, English, PCleMiniCard 802.11a/b/g/n 4dBi Ant Int, 5 VDC at Pin 9 of COM1, Auto Switch-off Check Availability Call for Details
9500E2B1BX4A3B0X PSION 8595, 12 XGA (1024X768), 1 GHz AMD G-T40E DUAL CORE, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 12/24V, WINDOWS EMB Standard 7, ENGLISH, PCLEMINICARD 802.11a/b/g/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF Check Availability Call for Details
9500E2B1BX4A0B1X PSION 8585/8595, 12" XGA (1024X768), 1 GHz AMD G-T40E DUAL CORE, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 12/24V, WINDOWS EMBEDDED Standard 7, ENGLISH, PCIEMINICARD 802.11A/B/G/N, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1, SCREEN BLANKING Check Availability Call for Details
9500E2B1AX4A3B0X PSION 8595, 12 XGA (1024X768), 1 GHz AMD G-T40E DUAL CORE, STANDARD DISPLAY, CFAST 8 GB, 1 GB RAM, 24/48V (60 W), WINDOWS EMB Standard 7, ENGLISH, PCLEMINICARD 802.11a/b/g/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF Check Availability Call for Details
9500B2D0BX7A5B0X PSION 8585/8595, 12" XGA (1024x768), 1.1 GHz Intel Atom, Standard Display, CFast 4 GB, 1 GB RAM, 12/24V, Linux, English, Sparklan WLAN card, 5 VDC at Pin 9 of COM1, Auto switch-off Check Availability Call for Details
9500B2D0BX1A0B1X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 4 GB, 1 GB RAM, 12/24V, WINDOWS XP EMBEDDED, ENGLISH, PCIEMINICARD 802.11A/B/G/N, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1, SCREEN BLANKING Check Availability Call for Details
9500B2D0AX2H2B0X PSION 8585/8595, 12" XGA, 1.1 GHz Intel Atom, Standard Disp, CFast 4 GB, 1 GB RAM, 24/48 V (60 W), Chinese Simplified, PCleMiniCard 802.11a/b/g/n, Prep for Ext Ant, 5 VDC at Pin 9 of COM1, Auto Switch-Off Check Availability Call for Details
9500B2D0AX1A2B0X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 4 GB, 1 GB RAM, 24/48 V (60 W), WINDOWS EMB Standard 7, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF Check Availability Call for Details
9500B2D0AX1A0A0X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 4 GB, 1 GB RAM, 24/48 V (60W), WINDOWS XP EMBEDDED, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 4dBi ANTENNA INTERNAL, NO VOLTAGE (RL) AT PIN 9 OF COM1, AUTO SWITCH Check Availability Call for Details
9500B2C0BX4A0B1X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 16 GB, 1 GB RAM, 12/24V, WINDOWS EMBEDDED Standard 7, ENGLISH, PCIEMINICARD 802.11A/B/G/N, 4dBi ANTENNA INTERNAL, 5 VDC AT PIN 9 OF COM1, SCREEN BLANKING Check Availability Call for Details
9500B2C0AX4A1A0X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 16 GB, 1 GB RAM, 24/48 V (60W), WINDOWS EMB Standard 7, ENGLISH, PCLEMINICARD 802.11A/B/G/N, ANTENNA EXTERNAL, NO VOLTAGE (RL) AT PIN 9 OF COM1, AUTO SWITCH-OFF Check Availability Call for Details
9500B2B0BX4A1B0X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 8 GB, 1 GB RAM, 12/24V, WINDOWS EMBEDDED Standard 7, ENGLISH, PCIEMINICARD 802.11A/B/G/N, ANTENNA EXTERNAL, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF Check Availability Call for Details
9500B2B0AX4A2B0X PSION 8595, 12 XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 8 GB, 1 GB RAM, 24/48 V (60W), WINDOWS EMB Standard 7, ENGLISH, PCLEMINICARD 802.11A/B/G/N, 5 VDC AT PIN 9 OF COM1, AUTO SWITCH-OFF Check Availability Call for Details
9500B2B0AX1A2B0X PSION 8585/8595, 12" XGA (1024X768), 1.1 GHz INTEL ATOM, STANDARD DISPLAY, CFAST 8 GB, 2 GB RAM, 24/48V, WINDOWS XP EMBEDDED, ENGLISH, PCIEMINICARD 802.11A/B/G/N, PREPARED FOR EXTERNAL ANTENNA, 5 VDC AT PIN 9 OF COM1 Check Availability Call for Details

Page: 1 2 »

Accessories

Part # DescriptionAvailabilityPriceOrder
CA1220 POWER EXTENSION CABLE DC 6'' WATERPROOF SCREEN BLANKING Ships Free Today $129.69
Retail $171
Save 24%
MT3501 VESA Plate, Compatible with 4" or 12" RAM Arm to Mount a Vehicle Mounted Computer on any Plane. Ships Free Today $42.47
Retail $56
Save 24%
CA1210 DC PoEr Extension Cable, 6 ft., Wtaerproof Ships Free Today $129.69
Retail $171
Save 24%
MT3502 8585 Accessories, Round Plate (for 4" or 12" RAM arm) - Centric, smaller footprint. Ships Free Today $45.16
Retail $59
Save 23%
MT3507 CLAMP BASE FOR 4IN OR 12IN RAM Ships Free Today $52.33
Retail $69
Save 24%
1616302-001 CABLE POWER SUPPLY TO CPC FROM PHOENIX TO CPC Ships Free Today $53.20
Retail $70
Save 23%
MT3505 Clamp Base (for 4" or 12" RAM arm) - Clamp the RAM arm on bars with square or rectangular cross section. Ships Free Today $53.85
Retail $71
Save 24%
7982A 7535 G2 Accessories, Vehicle-Mount Scanner Holder (Long) Ships Free Today $33.54
Retail $41
Save 18%
MT3612-10 MOUNTING KIT FOR SMALL KEYBOARD 8585
Ships Free in 3-5 Days
$75.84
Retail $100
Save 24%
MT3611-12 MOUNTING RIGHT FOR SCANNER 8595
Ships Free in 3-5 Days
$121.35
Retail $160
Save 24%
MT3510 RAIL BASE (FOR 4" OR 12" RAM ARM), 2" TO 2 1/2 Ships Free Today $62.25
Retail $90
Save 30%
MT3509 8585 Accessories, Rail Base (for 4" or 12" RAM arm) - Clamp the RAM arm on round tubes. 1-1/4" to 1-7/8" and 2" to 2 1/2" pipe diameters. Ships Free Today $61.24
Retail $80
Save 23%
MT3421 MOUNTING BRACKET FOR MOBILE USE 8585 Ships Free Today $122.48
Retail $160
Save 23%
MT3406 8585 Accessories, RAM mount, 12" arm with 1 VESA plate for 8580 / 8590 - The easily installed RAM mount allows a terminal to be mounted on any plane of the 360 degree locking system. 12" long arm.
Ships Free in 3-5 Days
$129.69
Retail $171
Save 24%
MT3405 8585 Accessories, RAM mount, 4" arm with 1 VESA plate for 8580 / 8590 - The easily installed RAM mount allows a terminal to be mounted on any plane of the 360 degree locking system. 4" short arm.
Ships Free in 3-5 Days
$93.29
Retail $123
Save 24%
MT1002 CANTILEVER MOUNT
Ships Free in 3-5 Days
$485.40
Retail $640
Save 24%
M1000 SPEAKER/MIC WITH PUSH-TO-TALK FUNCTION
Ships Free in 3-5 Days
$233.60
Retail $308
Save 24%
DVD8530 WIN XP PRO AND XP EMBEDDED BACKUP USB STICK
Ships Free in 3-5 Days
$435.35
Retail $564
Save 22%
9010377 Color iKey Keyboard, IKey color keyboard, USB with 72 key functionality, 8 function keys. Mounts are available separately. Ships Free Today $738.00
9010376 iKey Keyboard, IKey backlit keyboard, USB, 12 function keys, 86 key functionality. Mounts available separately.
Ships Free in 3-5 Days
$769.00
9008950 Workabout Pro G Accessories, Power Lead - Quad Dock & charger - UK
Ships Free in 3-5 Days
$21.76
8871 CHARGER FOR 8870 CART BATTERY 12V 10A 110V.
Ships Free in 3-5 Days
$614.00
8870 CART BATTERY WITH CABLES AND ENCLOSURE 32AH 12V. Ships Free Today $263.49
Retail $511
Save 48%
1616314 SMALL KEYBOARD ENGLISH USB
Ships Free in 3-5 Days
$544.56
Retail $718
Save 24%

Motorola PSION 8585/8595 Details

Display

Standard display
8585: SVGA 800 x 600; 10.4” diagonal; LED Backlit; Sunlight Readability Option; 8595: XGA 1024 x 768; 12.1” diagonal; LED Backlit

Physical characteristics

Indicators
Power on LED; temperature warning; mass storage activity

Keypad
Multiple keyboards available including the color option with 72 keys and the 82-key option with integrated backlighting

Dimensions
8585: 9.1 in. L x 11.2 in. H x 3.1 in. D (229 mm L x 285 mm W x 78 mm D) 8595: 10.1 in. L x 12.8 in. H x 3.1 in. D (258 mm L x 325 mm W x 79 mm D)

Touchscree
Resistive touch

Weigh
8585: 6.6 lbs. / 3 kg 8595; 7.7 lbs. / 3.5 kg

Power

Power supply
12-24 VDC or 24-48 VDC internal power supply; Voltage sags up to 5 VDC can be handled for up to 20 seconds

System characteristics

Operating system
Windows® XP Embedded, Windows® Embedded Standard 7, Windows® XP Professional, Windows® Professional

CPU
Intel Atom® (Single Core) 1.1 GHz AMD G-T40E (Dual Core) 1.0 GHz

I/O interfaces included
1 x RS-232; 2 x USB 2.0 host; 1 x Service USB 2.0; 1 x Speaker/Mic LAN: RJ45 10/100/1000 Mbps

Memory
1GB RAM with Intel; 2 GB RAM with AMD; Starting at 4 GB CFast Flash ROM; Up to 16 GB CFast Flash ROM

Audio
Integrated speaker; speaker/Mic via handset (option)

User environment

UV
Per MIL-STD 810F (US Highway Truck)

Shock/vibration
Class 5M3 according EN 60721-3-5

Storage temperature
-31° to 149° F/-35° to 65° C

Environmental sealing
IP66 (water & dust protection)

Humidity
Humidity (operating): 10% to 90% at 40° C, non-condensing

Operating temperature
-22° to 122° F/-30° to 50° C

Wireless data communications

Wireless LAN
IEEE 802.11a/b/g/n; PCIe MiniCard
