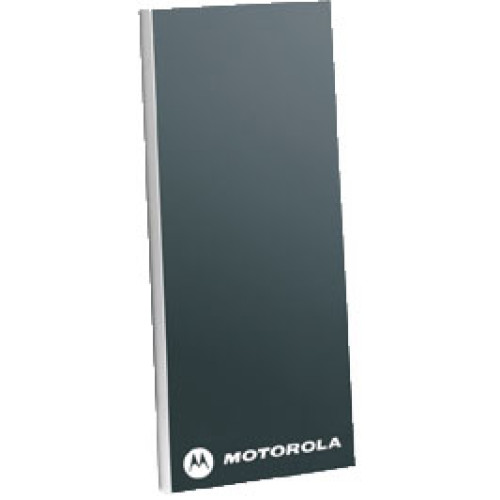

Motorola AN400 RFID Antenna

The Motorola AN400 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Get the capacity and range you need to enable RFID tag reading in large areas with the high performance area AN400. This general-purpose area antenna is optimized to perform in all environments. Easy to mount on ceilings and walls, the AN400 enables the easy creation of superior read zones around shelves, doorways and dock doors anywhere boxes and pallets are moving into and out of a facility
AN400 Options
Part # DescriptionAvailabilityPriceOrder
AN400-CB66203WW This part is replaced by AN400-CB66203WR.
AN 400, Antenna: High Performance Dual-N-Type
See Replacement Call for Details
AN400-CB66203WR AN 400, Antenna: HP Dual-N-Type Check Availability Call for Details

Motorola AN400 Details

The AN400 will perform reasonably well in EU frequency in most applications.
See footnotes for additional information1

Performance Characteristics

Axial ratio
<3 dB

Isolation
-37 db

Gain
6.0 dBi linear

Frequency range2
902-928 MHz

3 dB beam width
60°

DC resistance
10K Ohm

Voltage Standing Wave Ratio (VSWR)
1.25

Physical Characteristics

Dual port
Yes

Dimensions (with mounting screws)
28.3 x 12.5 x 1.5 in. (71.7 x 31.7 x 3.8 cm) H x W x D

Casing
Aluminum with polycarbonate cover

Weight
8 lbs. (3.6 Kg)

Polarization
Two circular polarized patch array

Connector
Type "N" Female

User Environment

Operating temperature
+32° to +122° F (0° to +50° C)

Environmental sealing
IP54

Storage temperature
-4° to +158° F (-20° to +70° C)
