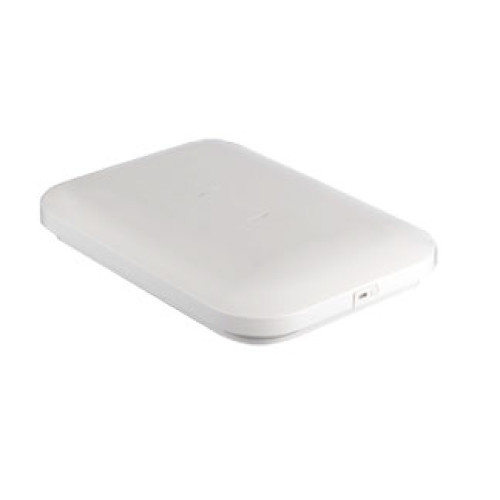

Motorola AP 8222 Access Point

Motorola AP 8222 Access Point

The AP 8222 makes it easy to deliver blazing Wi-Fi wireless access to the public. Whether you need to serve shoppers in a retail store, hotel guests or patients and their visitors in a hospital, the AP 8222 delivers Wi-Fi speeds up to four times the speed of 802.11n, allowing you to support virtually any number of mobile devices running the most demanding applications.
Discontinued - Need Assistance
See all options

ANTENNA SPECIFICATIONS

Connector type

RPSMA

External antenna support

Yes

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD)

9.0 in. L x 6.0 in. W x 1.77 in. H230 mm L x 153 mm W x 45 mm H

Plenum rated

Yes

Weight

3.3 lbs/1.5 kg

LEDs

2 top mounted LEDs, 2 bottom mounted LEDs

Housing

Metal, Plenum-rated housing

Physical interfaces

3X3 MIMO with 3 Spatial Streams 20, 40 and 80 MHz Channels 1.3 Gbps data rates on the 802.11ac radio Packet Aggregation (AMSDU, AMPDU) Reduced Interface Spacing 802.11 DFS MIMO Power Save (Static and Dynamic) Advanced forward error correction coding: STBC, LDPC

Available mount configurations

Above drop ceiling, underceiling or on wall; no additional hardware required to mount

POWER SPECIFICATIONS

Operating voltage

48V

Operating current

310mA or 520mA

Integrated power over ethernet support

802.3af support for dual radio, 802.3at draft power injector

RADIO SPECIFICATIONS AND NETWORKING

Transmit power adjustment

1dB increment

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv and TOS

Network standards

IEEE 802.11a/b/g/n, 802.11d and 802.11i WPA2, WMM and WMM-UAPSD

Uplink

1 Auto-sensing 10/100/1000Base-T Ethernet port with 802.3at support

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial multiplexing (MIMO)

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and54Mbps 802.11n: MCS 0-23 up to 450Mbps802.11ac: MCS 0-9 up to 1.3Gbps

Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLDP

Frequency

2412 to 2472 MHz, 5180 to 5825 MHz

Operating channels

2.4GHz band: channel 1 through channel 13 5.2GHz band: channel 36 through channel 165* Channel availability depends on local regulatory restriction

Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, MU-assisted, on-board IDS and secure guest access (Hotspot)

Available transmit power settings

Adjustment: 1dB increment from 0dB to max

REGULATORY SPECIFICATIONS

Radio approval

FCC (USA), EU, TELEC

Electrical safety

UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL

Environmental

RoHS Directive 2002/95/EEC

USER ENVIRONMENT

Storage temperature

-40° F to 185° F/-40° C to 85° C

Operating temperature

32°F to 122°F/0°C to 50°C

Operating humidity

5 to 95% RH non-condensing

Electrostatic discharge

15kV air, 8kV contact

Extended Details
Refine Your Options
Shop By
Shopping Options
Antenna
  1. Internal (1)
  1. Motorola AP 8222 Access Point
    Part #: AP-8222-67030-US | SKU: MOT241390

    Zebra AP 8222 IEEE 802.11ac 1.27 Gbit/s Wireless Access Point - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Ceiling Mountable, Wall Mountable
  2. Motorola AP 8222 Access Point
    Part #: AP-8222-67030-WR | SKU: MOT241391

    Zebra AP 8222 IEEE 802.11ac 1.27 Gbit/s Wireless Access Point - MIMO Technology - 2 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Ceiling Mountable, Wall Mountable

2 Item(s)

Recommended Warranties for Model: Motorola AP 8222 Access Point

  • Motorola AP 8222 Service Contract
    Part #: SXB-AP8222-30 | SKU: MOT329166

    Service Contract - 3 Year, Service from the Start Advanced Exchange. Includes Comprehensive Coverage. Available in NA, LACR and APME only. Check datasheet for regional availability.
