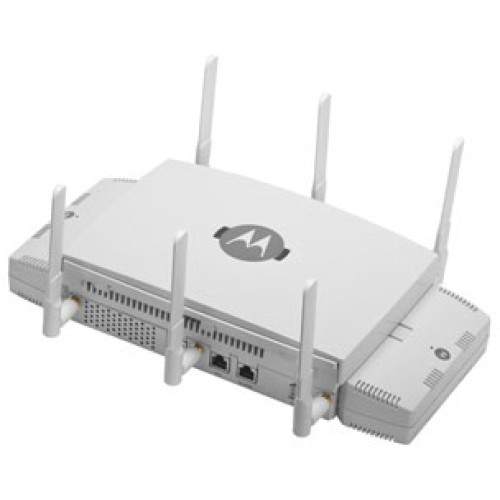

Photo of Motorola AP 8232
Motorola logo

Motorola AP 8232 Access Point

The AP-8232 builds upon the AP-8132 to provid high-speed network access for customers and staff with its modular design that enables you to more efficiently deploy applications where they are most needed. By leveraging your wireless network, the AP-8232 lets you deploy these applications without the time, effort and cost of having to install additional hardware and cabling.

Wireless Type

AP 8232 Options
Part # DescriptionAvailabilityPriceOrder
AP-8232-67040-US AP 8232, 802.11n/11ac Dual Radio Access Point. US Version Ships Today $775.79
AP-8232-67040-WR AP 8232, 802.11n/11ac Dual Radio Access Point Non-US Version Ships Today $792.39

Motorola AP 8232 Details

ANTENNA SPECIFICATIONS

Connector type

RPSMA

External antenna support

Yes

PHYSICAL CHARACTERISTICS

Modular Access Points (up to 450 Mbps per n radio, 1.3 Gbps per ac radio)

Yes

Plenum rated

Yes

Weight

3.2 lbs/1.45 kg

LEDs

Activity indication: 2 top-mounted LEDs, 2 bottom-mounted LEDs

Housing

Metal, Plenum-rated housing

Physical interfaces

2 ports (GE1, GE2) Auto-sensing 10/100/1000Base-T Ethernet;
802.3at on GE1 LAN port 6 RP-SMAs antenna connectors RJ45 console port

Available mount configurations

Above drop ceiling, underceiling or on wall; no additional hardware required to mount

POWER SPECIFICATIONS

Operating voltage

36-57VDC

Operating current

270mA @48V in 802.3af mode, 438mA @48V in 802.3at mode, typical.

Integrated power over ethernet support

802.3af support for dual radio, 802.3at draft power injector

RADIO SPECIFICATIONS AND NETWORKING

Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE, and LLDP

Uplink

2 ports (GE1, GE2) Auto-sensing 10/100/1000Base-T Ethernet; 802.3at on GE1 LAN port

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11n: MCS 0-23 up to 450Mbps

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial multiplexing (MIMO)

Network standards

IEEE 802.11a/b/g/n, 802.11d and 802.11i WPA2, WMM and WMM-UAPSD

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv and TOS

Available transmit power settings

Adjustment: 1dB increment from 0dB to max

Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, MU-assisted, on-board IDS and secure guest access (Hotspot)

Frequency

2412 to 2472 MHz, 5180 to 5825 MHz

Operating channels

2.4GHz band: channel 1 through channel 13 ; 5.2GHz band: channel 36 through channel 165. (* channel availability depends on local regulatory restriction).

REGULATORY SPECIFICATIONS

Electrical safety

UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL

Radio approval

FCC (USA), Industry Canada, CE (Europe), China, Australia

Environmental

RoHS Directive 2002/95/EEC

USER ENVIRONMENT

Operating temperature

32oF to 122oF/0oC to 50oC

Operating humidity

5 to 95% RH non-condensing

Electrostatic discharge

15kV air, 8kV contact
