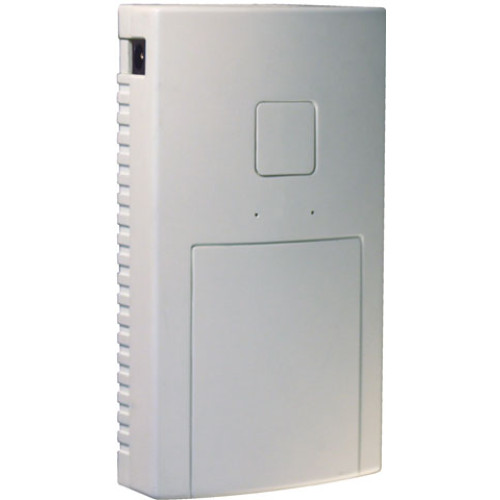

Photo of Motorola AP6511
Motorola logo

Motorola AP6511 Access Point

The Motorola AP6511 is expressly designed for one of the most challenging wireless LAN environments - dormitory and hotel guest rooms. Standard service personnel can install the AP6511 in minutes, not hours, using existing category 5 or 6 cabling already in the walls. The installation is predictable and repeatable - two key reasons the AP6511 will dramatically lower the installation time and cost of a room wireless LAN. The AP's sleek "hide in sight" design and minute size match the decor of any room. The AP6511 includes intelligent self-optimizing Controller AP code, which allows a small property to gain the benefits of a central controller - automatic adoption, central configuration and status, and automatic RF management - without the cost of a dedicated RF switch. For larger properties and facilities, the AP6511 can be managed by Motorola's Wi-NG-based RF switches for very high scalability and seamless integration with other indoor and outdoor 802.11n access points.

Model

Wireless Type

MIMO

Antenna

Data Transfer Rate

Mesh

Radio Count

Power

Environment

AP6511 Options
Part # DescriptionAvailabilityPriceOrder
AP-6511-60010-WR AP-6511, Low Profile Access Point (Single Radio, 2.4/5.0 GHz 802.11n, Ethernet Wallplate, World Wide) Ships Today $277.62
Retail $399
Save 30%
AP-6511-60010-US AP6511, Single radio 802.11a/b/g/n WallPlate AP. Low profile. One Ethernet PD uplink port, one FE LAN port included. Optional Ethernet Module. Cluster Manager included. US-only version supports FCC channel set. Ships Today $277.62
Retail $399
Save 30%
AP-6511E-60010-US AP 6511E, AP 6511: EXPRESS 802.11N AP, Internal Antenna US Ships Today
See Price in Cart
AP-6511E-60010-WR AP 6511E, AP 6511: EXPRESS 802.11N AP, Internal Antenna WR Ships Today
See Price in Cart

Motorola AP6511 Details

PHYSICAL CHARACTERISTICS

Available mount configurations

Mount over any structured wiring telecom box, or on a flat surface.

LEDs

Two single color status LEDs; power, error, packets, operating frequency

Weight

1 lbs / 0.5 kg

Dimensions (HxWxD)

5" x 2.95” x 1” (12.8cm x 7.5cm x 2.54cm). 12oz (0.34Kg)

Physical interfaces

10/100Mb auto-sensing via 8-pin header 10/100Mb auto-sensing

POWER SPECIFICATIONS

Integrated power over ethernet support

Standards-based IEEE 802.3af

Operating voltage

802.3af supply: 48 VDC @ 12.95W (typical), 36 VDC to 57 VDC (range)

Operating current

0.170w (typical)

RADIO SPECIFICATIONS AND NETWORKING

Maximum transmit power settings

20dBm

Network standards

802.11a, 802.11b, 802.11g, 802.11n

Operating channels

5GHz: All channels from 4920 MHz to 5825 MHz 2.4GHz: Chan 1-13 (2412-2472 MHz), Actual operating frequencies depend on national regulatory limits

Layer 2 and layer 3

802.11-802.3 bridging, 802.1q VLAN tagging and trunking, Dyn DNS, DHCP server/client

Management

Independent management via SSH, Telnet. Adopted management by Controller AP available at first release. Adoption by RF switch available in future software release.

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54Mbps 802.11n: MCS 0-15 up to 300Mbps

Operating bands - EU

FCC EU 2.412 to 2.462 GHz 2.412 to 2.472 GHz 5.150 to 5.250 (UNII -1) 5.150 to 5.250 GHz 5.725 to 5.825 (UNII -3) 5.150 to 5.350 GHz 5.725 to 5.850 (ISM) 5.470 to 5.725 GHz (Country Specific) Japan 2.412 to 2.484GHz 4.900 to 5.000 GHz 5.150 to 5.250 GHz

Wireless medium

Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), and Spatial Multiplexing (MIMO)

Security

Stateful Firewall, NAT, 802.1x, 802.11i, WPA2-CCMP (AES), WPA2-TKIP, WPA-TKIP, Rogue Detection, Secure guest access (HotSpot)

QoS

802.11e, 802.1p, DiffServ, TOS

REGULATORY SPECIFICATIONS

EMC

FCC Part 15 Class B

Environmental

EU RoHS Directive 2002/95/EEC

Electrical safety

EN 60950-1

Human exposure EMF

EN 50385, FCC Part 2, OET Bulletin 65, RSS-102 Issue 2

USER ENVIRONMENT

Electrostatic discharge

+/- 15 kV (Air), +/- 8 kV (contact)

Operating humidity

5 to 95% RH (non condensing)

Storage altitude

15, 000 ft./4572 m

Operating altitude

8, 000 ft./2438 m

Operating temperature

-4°F to 122° F/0°C to 50° C

Storage temperature

-40°F to 158° F/-40°C to 70° C
