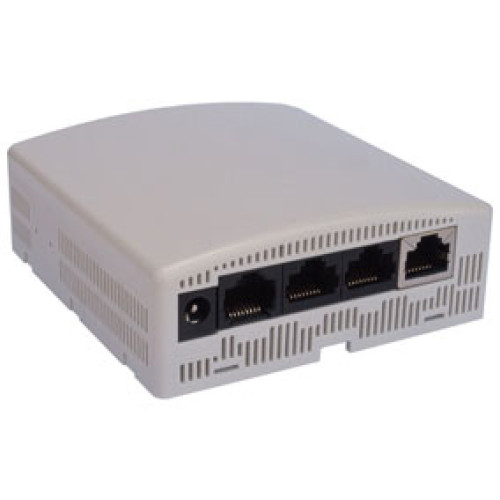

Photo of Motorola AP7502
Motorola logo

Motorola AP7502 Access Point

Introducing the easiest and most cost-effective way to deliver high-speed wireless connectivity in hotel and patient rooms, classrooms and apartments "" the AP 7502 packs the power of 802.11ac into a pocket-sized access point. The dual 802.11n and 802.11ac radios, five internal antennas, plus a host of Motorola-only features provide a dependable high-performance wireless connection for every user and every mobile device in the room "" 2.4 and 5 GHz. Its revolutionary small size makes it easy to install anywhere, while the understated tamper-proof design easily hides in plain sight. Deployment and management couldn"t be easier or faster "" the AP 7502 can be installed in just a few minutes, automatically configured and managed remotely.
Questions?
1-888-875-7170
We respond to every email

Environment

Power

Antenna

Wireless Type

Radio Count

Mesh

MIMO

Data Transfer Rate

Item Condition

AP7502 Options
Part # DescriptionAvailabilityPriceOrder
AP-7502-67030-US AP7502, Wallplate 802.11n/ac, Dual Radio, US Only Version Ships Free Today $273.35
Retail $395
Save 30%
AP-7502-67030-WR AP7502, Wallplate 802.11n/ac, Dual Radio, Worldwide Version
Ships Free in 3-5 Days
$269.07
Retail $395
Save 31%
Protect Your Product
Motorola Service Contract - 1 Year (OSB-AP7502-10)
On-site Comprehensive coverage. Availlable in NA, LACR and APME only. Check datasheet for regional availability.
Ships in 3-5 Days
$42.90
+ Add to Quote
Motorola Service Contract - 3 Year (SOB-AP7502-30)
Service from the Start On-site. Includes Comprehensive coverage. Availlable in NA, LACR and APME only. Check datasheet for regional availability.
Ships in 3-5 Days
$99.00
+ Add to Quote
Motorola Service Contract - 1 year (SCS-AP7502-10)
Zebra OneCare Service Center Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships in 3-5 Days
$34.10
+ Add to Quote
Motorola Service Contract - 2 year (SSS-AP7502-20-R)
Zebra OneCare Select Renewal. Includes Comprehensive coverage. Can only be ordered ONCE after initial Zebra OneCare contract expires. Check datasheet for regional availability
Ships in 3-5 Days
$51.70
+ Add to Quote
Motorola Service Contract - 3 year (SSS-AP7502-30)
Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships in 3-5 Days
$77.00
+ Add to Quote

Motorola AP7502 Details

PHYSICAL CHARACTERISTICS

LEDs

2 single color status LEDs

Dimensions (HxWxD)

1.35 in. H x 3.7 in. W x 3.5 in. L / 35 mm H 95 mm W x 90 mm L; Extends into wall cavity .25 in. / 7mm

POWER SPECIFICATIONS

Operating voltage

Local 12v DC power

Integrated power over ethernet support

802.3at, 802.3af

RADIO SPECIFICATIONS AND NETWORKING

Operating channels

2.4 GHz band: 2400 - 2483.5 MHz 5.2 GHz band: 5150 - 5250 MHz, 5725 - 5850 MHz

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM), Modulation and Coding Scheme, (MCS), High Throughput (HT)

Transmit power adjustment

6dBm to 15dBm per transmit chain. 1dB increments. (Actual transmit power dependent on national limits)

Frequency

2.4 GHz band: 2400 - 2483.5 MHz 5.2 GHz band: 5150 - 5250 MHz, 5725 - 5850 MHz

Layer 2 and Layer 3

802.1Q, 802.1D, DHCP Server/client, BootP, PPPoE, LLDP, GRE and IPSec

Network standards

Regulatory Specifications: EN300 328, EN 301 893; CE, IC, FCC

Security

Stateful L2/L3 firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, Dedicated fulltime WIPS sensor mode, secure guest access captive portal

Data rates supported

802.11b: 1, 2, 5.5 and 11 802.11g/a: 6, 9, 12, 18, 24, 36, 48 and and 54 Mbps 802.11n: MCS 0-15 up to 300 Mbps 802.11ac: MCS 0-8 up to 867 Mbps

QoS

WMM, 802.1P, DSCP. Applied per radio, WLAN and user

REGULATORY SPECIFICATIONS

EMC

EN 55022, FCC Part 15 Class B, ICES 003 Class B, EU RoHS Directive 2011/65/EU (EN50581: 2012 Standard), EN 55024: 2003, EN 55024: 2010 + A2, EN 55024: 2010 + A1

Electrical safety

UL EU EN 60950-1 2nd Ed., ANZ RCM

Environmental

FCC 15.247, 15.407

USER ENVIRONMENT

Operating humidity

5% to 90% non-condensing

Operating temperature

32° F to 104° F/0° C to 40° C
