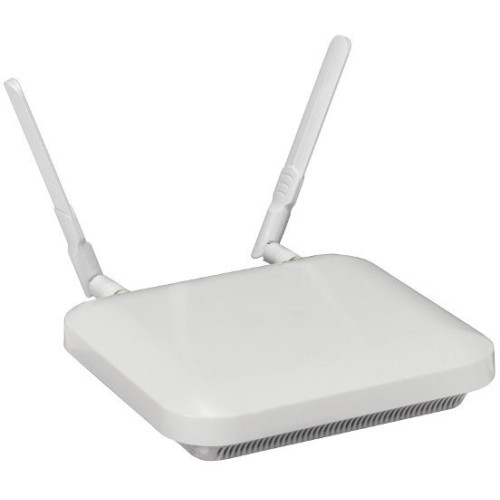

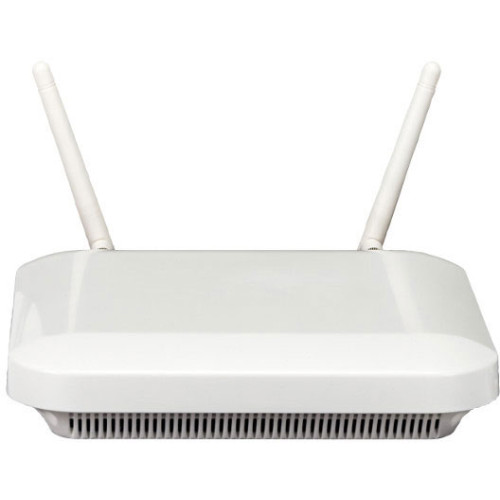

Motorola AP 7522E Access Point

Motorola AP 7522E Access Point

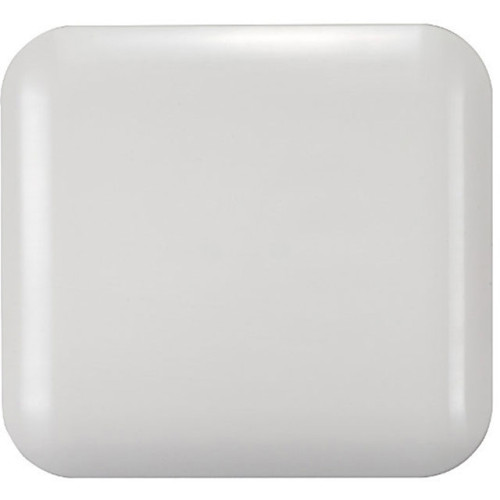

Get 802.11ac speed at a low price point with the AP 7522E access point. The comprehensive feature set and 2X2 MIMO provide all your mobile users with a dependable, high-performance wireless connection. With our high-powered radios, you"ll need fewer access points, delivering maximum speed for a minimum cost. And with its sleek, understated look, the internal antenna version of the AP 7522E is at home anywhere in your environment "" including customer-facing public spaces. Using WiNG Express means you can set up the network without the need for a large IT team. You can run up to 25 AP 7522E access points - without the cost of a dedicated network management controller.
Discontinued - Need Assistance
See all options
  • Dual radio 802.11ac/ 802.11n
  • 2X2 MIMO with 256 QAM modulation
  • Radio Share and Off-Channel Scan
  • Standard 802.3af
  • Load balancing, pre-emptive roaming and rate scaling
  • Gap-free security

ANTENNA SPECIFICATIONS

Connector type

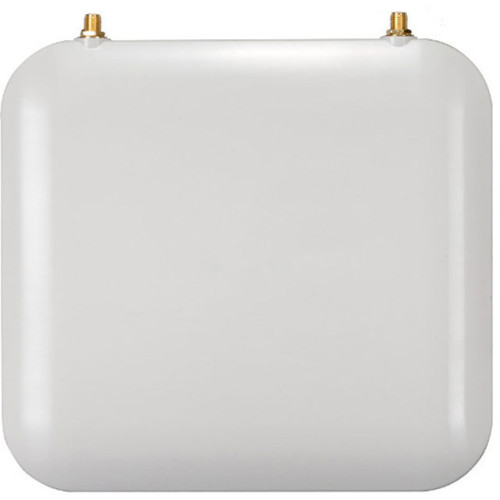

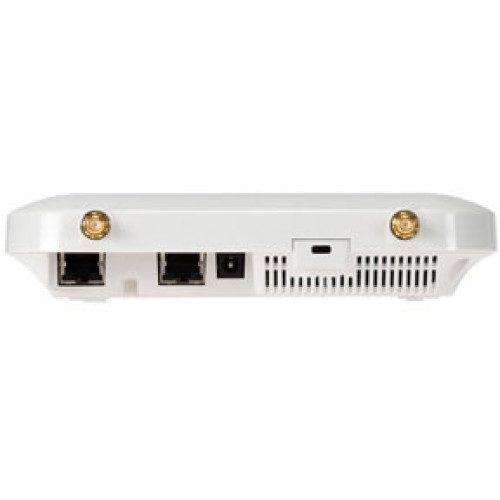

Two RP SMAs (External only - AP-7522-67040-xx)

PHYSICAL CHARACTERISTICS

LEDs

2 top mounted LEDs; activity indication

Housing

Plenum-rated housing (UL2043)

Weight

1.8 lbs / 0.82 kg

Dimensions (HxWxD)

1.6 in. H x 6.5 in. W x 7.1 in. L /41 mm H x 165 mm W x 180 mm L

POWER SPECIFICATIONS

Integrated power over ethernet support

802.3af

Operating voltage

48v

Operating current

280 mA at 48V

RADIO SPECIFICATIONS AND NETWORKING

Operating channels

2.4 GHz band: channel 1 through channel 13
5.2 GHz band: channel 36 through channel 165 * Channel availability depends on local regulatory restriction

Wireless medium

Direct Sequence Spread Spectrum (DSSS), Orthogonal Frequency Division Multiplexing (OFDM) and Spatial Multiplexing (MIMO)

Security

Stateful Firewall, IP filtering, NAT, 802.1x, 802.11i, WPA2, WPA Triple-Methodology Rogue Detection: 24x7 dual-band WIPS sensing, on-board IDS and secure guest access (hotspot)

Transmit power adjustment

1dB increment

Data rates supported

802.11b/g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11n: MCS 0-23 up to 300 Mbps; Turbo mode (256QAM) on 2.4G band: up to 400Mbps)
802.11ac: MCS 0-9 up to 866.7 Mbps

Frequency

2412 to 2484 MHz, 5180 to 5850 MHz

QoS

WMM, WMM-UAPSD, 802.1p, Diffserv and TOS

Layer 2 and Layer 3

Layer 3 routing, 802.1q, DynDNS, DHCP server/client, BOOTP client, PPPoE and LLDP

FREQUENCY

EMC

FCC Part 15 Class B, ICES 003 Class B, EN 55024

Electrical safety

UL 60950-1, EN 60950-1, IEC 60950-1, UL2043, cUL 60950-1, RoHS

Radio

EN 300 328, EN 301 893

Radio approval

FCC (USA), EU, TELEC

USER ENVIRONMENT

Electrostatic discharge

15kV air, 8kV contact (Internal AP-7522-67030-xx)
12kV air, 6kV contact (External AP-7522-67040-xx)

Operating humidity

85% RH non-condensing

Operating temperature

Internal antennas: 32° F to 104° F/0° C to 40° C
External antennas: -4° F to 104° F/-20° C to 40° C

Storage temperature

-40° F to 158° F/-40° C to 70° C

Extended Details
Refine Your Options
Shop By
Shopping Options
Antenna
  1. Internal (1)
  1. Motorola AP 7522E Access Point
    Part #: AP-7522E-67030-WR | SKU: MOT301342

    Zebra 7522E IEEE 802.11ac 866.70 Mbit/s Wireless Access Point - 2.47 GHz, 5.85 GHz - MIMO Technology - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - Ceiling Mountable, Wall Mountable
  2. Motorola AP 7522E Access Point
    Part #: AP-7522E-67040-US | SKU: MOT301343

    AP 7522E, Express 802.11ac AP, External Antenna US
  3. Motorola AP 7522E Access Point
    Part #: AP-7522E-67030-US | SKU: MOT301341

    AP 7522E, Express 802.11ac, Internal Antenna US
  4. Motorola AP 7522E Access Point
    Part #: AP-7522E-67040-WR | SKU: MOT301344

    AP 7522E, Express 802.11ac AP, DUAL RADIO, 2X2: 2 MIMO, EXTERNAL ANTENNA CONNECTORS (ANTENNA SOLD SEPARATELY)

4 Item(s)

Recommended Accessories for Model: Motorola AP 7522E Access Point

  • Zebra Antennas Wireless Antenna
    Part #: ML-2452-APA2-02 | SKU: ZEB188234

    ANT:2.4-5GHZ_DBAND,DP 6,7 DBI, RP-SMA_WHT
    MSRP: $37.00 Price: $34.28
    In Stock
  • Zebra Antennas Wireless Antenna
    Part #: ML-2452-APA2-01 | SKU: ZEB214184

    Antenna, Indoor, Dipole, Gain: 3Dbi/2.4Ghz, 5Dbi/5Ghz, Beam Width: E-Plane: 35 Degrees, H-Plane: 360 Degrees, Connector: Rp-Sma Male
    MSRP: $37.00 Price: $34.28
    In Stock
  • Zebra Antennas Wireless Antenna
    Part #: ML-2452-APAG2A1-01 | SKU: ZEB155995

    Dipole, RP-SMA Male
    Price: $17.88
  • Symbol Antennas Wireless Antenna
    Part #: ML-2452-APAG2A1-02 | SKU: SYM183304

    Ant:Dipole;Gn:2DBI-2.4GHZ, 1dbi-5GHZ,Wht
  • Motorola AP7181 Accessory
    Part #: AP-PSBIAS-2P3-ATR | SKU: MOT187558

    Power Injector: Single Port Hi-Power 802.3at
