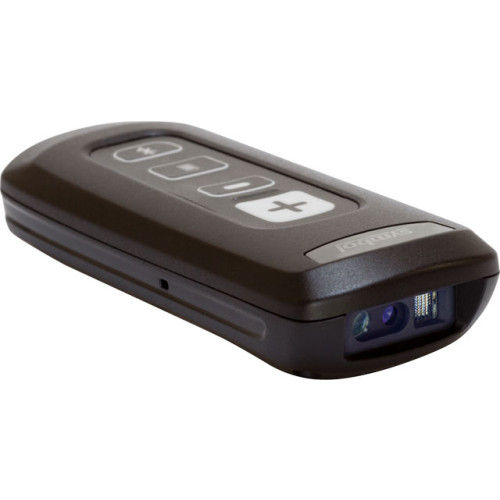

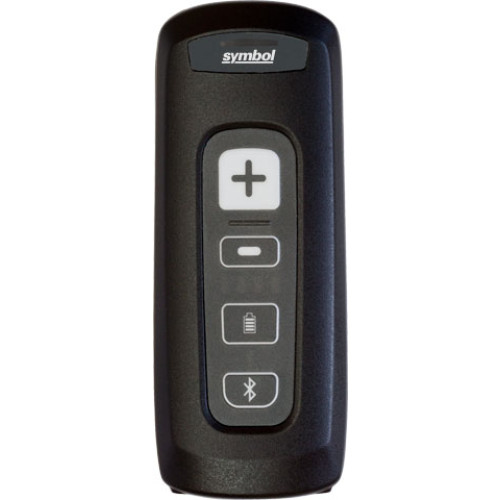

Motorola Symbol CS4070-SR Scanner

If your workers are using tablets, laptops and smartphones, they all share a common challenge "" the consumer-grade camera used to capture barcodes makes scanning slow, uncomfortable and impossible unless the barcode is perfect. The Symbol CS4070 is the easiest way to add enterprise-class scanning to any mobile device.
  • Wireless scanning for iOS, Android and Windows mobile devices
  • PRZM Intelligent Imaging technology for next generation barcode scanning performance
  • Scan virtually any 1D and 2D barcode on any medium inlcuding smartphone screens
  • Superior ergonomics
  • Easy Bluetooth pairing
  • Point-and-shoot scanning simplicity
  • Operates reliably after multiple 5 ft. drops to concrete as well as 500 consecutive "tumbles" from 1.64 ft
  • Full-shift power
  • Real-time and batch mode support
We respond to every email

Form Factor


Scanner Capability

Scanner Type

Item Condition

Scan Pattern


Included Cables ?

Communication Type ?


Symbol CS4070-SR Options
Part # DescriptionAvailabilityPriceOrder
CS4070-SR70000TAZW Symbol CS4070, 2D Imager, Standard Range, Cordless Bluetooth. Includes Micro USB Cable and Lanyard. Color: Black.
Ships Free in 3-5 Days
CS4070-SR00004ZMWW Symbol CS4070, 2D Imager, Standard Range, Cordless, Bluetooth. Includes Micro USB Cable. Color: Black
Ships Free in 3-5 Days
CS4070-SR00007ZMWW Symbol CS4070, 2D Imager, Standard Range, Cordless Bluetooth. Includes Micro USB Cable. Color: Black See Replacement Call for Details

Motorola Symbol CS4070-SR Details

Performance Characteristics

Interfaces supported
USB (micro jack): Bluetooth

Decode capability
See data sheet for full list of supported symbologies, 1-D/2-D

Battery life
Batch: 24 hours use or 8, 500 scans (6 scans per minute on full charge)
Standby: 3 months Bluetooth 12 hours use or 4, 250 scans (6 scans per minute on full charge)

512 MB Flash

Physical Characteristics


With batteries: 3.28 oz./93.2 g


4.39 in. L x 1.79 in. W x 1.02 in. H/11.15 cm L x 4.55 cm W x 2.6 cm H

Radio Specifications

Radio type
Bluetooth, Class 1/Class 2, Version 2.1 + Enhanced Data Rate (EDR)

Regulatory Specifications


Laser/LED Safety
EN 62471:2008 (LED), IEC 62471:2006 (Ed.1.0)

EN 300 328

EN 301 489-1, EN 301 489-17, EN 55022, FCC Part 15 Class B, ICES 003 Class B, EN 55024

Electrical Safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

User Environment

Storage temperature
-40° to 158° F/-40° to 70°C

Operating temperature
32° to 104° F/0° to 40° C

10 to 95% noncondensing

Environmental sealing

Drop specifications
Multiple 5 ft./1.5 m drops to concrete

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)
