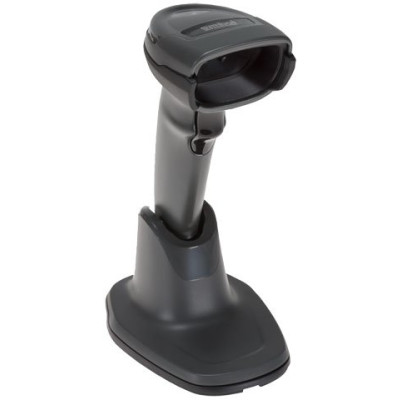

Photo of Motorola Symbol DS4308-P
Motorola logo

Motorola Symbol DS4308-P

The DS4308P is a feature-rich combination handheld and hands-free 2D imager that resets the bar for scanning performance, scanning range, versatility and ease-of-use. In presentation mode, its tiny footprint is ideal for space constrained areas. In handheld mode, the small and lightweight design provides the ergonomics workers need for all day scanning comfort. In either mode, workers can capture virtually any barcode faster than ever, whether it is displayed on a smartphone, tablet or computer or printed on a label - even if it is scratched, damaged or dirty. With its extraordinary scanning range, you get one powerful scanner that does the job of two, eliminating the need to purchase separate standard and extended range scanners. The result? A new class of scanner for a new world of barcodes.
Questions?
1-888-875-7170
We respond to every email
Symbol DS4308-P Options
Part # DescriptionAvailabilityPriceOrder
DS4308-SR7U2100PZW Symbol DS4308, DS4308-SR Black USB KIT with Standard and shielded USB cable Ships Free Today $296.64
DS4308-DL00007PCWW Symbol DS4308, Presentation Stand Kit. 2D Imager, Driver's License Parsing, Standard Range, Checkpoint EAS Compatible. Color: Black. Includes presentation stand. Does not include necessary interface cables.
Ships Free in 3-5 Days
$316.80
DS4308-DL00007PZWW Symbol DS4308, Presentation Stand Kit. 2D Imager, Driver's License Parsing, Standard Range. Color: Black. Includes presentation stand. Does not include necessary interface cables. Ships Free Today $295.20
DS4308-SR00007PCWW Symbol DS4308, Presentation Stand kit. 2D Imager, Standard Range, CheckPoint EAS Compatible. Color: Black. Includes presentation stand. Does not include neccessary interface cable.
Ships Free in 3-5 Days
$298.80
DS4308-SR00007PZWW Symbol DS4308, Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes Presentation Stand. Does not include necessary interface cable. Ships Free Today $277.20
DS4308-SR7R0110PZN Symbol DS4308, RS-232/Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes RS-232 interface cable, US power supply, and presentation stand.
Ships Free in 3-5 Days
$318.24
DS4308-SR7U2300PZW Symbol DS4308, PowerPlus/Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes non-standard PoweredUSB interface cable and presentation stand. Check Availability Call for Details
DS4308-SR7M6400PZW Symbol DS4308, IBM PORT 5B CABLE, BLACK IBM/Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes IBM Port 5B interface cable and presentation stand. Check Availability Call for Details
DS4308-SR7M6100PZW Symbol DS4308, IBM/Presentation Stand kit. 2D Imager, Standard Range. Color: Black. Includes IBM Port 9B cable and presentation stand. Check Availability Call for Details
DS4308-SR7K6110PZN Symbol DS4308, PS/2 and Stand kit. 2D Imager, Standard Range. Color: Black. Includes PS/2 interface cable, US power supply, and presentation stand. Check Availability Call for Details

Motorola Symbol DS4308-P Details

Performance Characteristics

Technology
Imager

Skew (Yaw)1
± 60° or greater

Roll (Tilt) 2
0 - 360°

Pitch3
± 65° or greater

Print contrast
20% minimum reflective difference

Interfaces supported
Keyboard wedge, RS-232, USB, SSI, RS485 (IBM46xx)

Decode capability
See data sheet for full list of supported symbologies, 1-D/2-D

Physical Characteristics

Voltage and current4
5 VDC ± 10% @ 360 mA (RMS typical)

Weight
10.6 oz. / 300 g

Handheld
Yes

Dimensions
8.15 in. H x 5.18 in. L x 3.74 in. W
20.7 cm H x 13.15 cm L x 9.5 cm W

Corded
Yes

Regulatory Specifications

Environmental
Compliant with RoHS directive 2011/65/EU

Electrical Safety
EN 60950-1, CSA C22.2 No. 60950-1 2nd ed., UL60950-1 2nd ed, IEC60950-1 2nd ed

User Environment

Ambient lighting tolerance
Immune to normal indoor lighting up to 1600 Lux; immune to sunlight up to 86, 000 Lux

Storage temperature
-40° F to 158° F/-40° C to 70° C

Operating temperature
32° F to 122° F/0° C to 50° C

Humidity
5% to 95%, non-condensing

Drop specifications
Withstands multiple 5 ft./1.5 m drops to concrete
