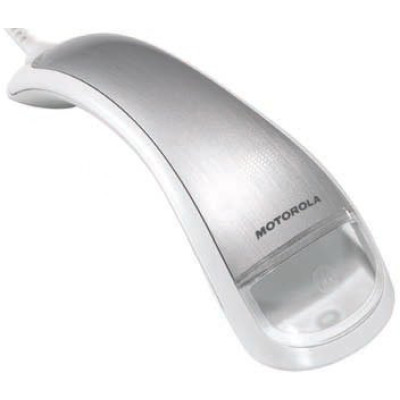

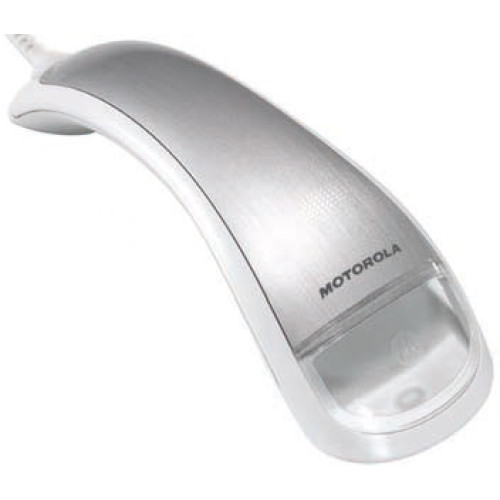

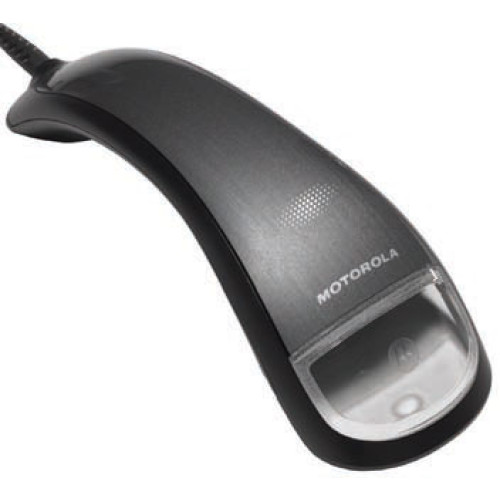

Motorola DS4800 Barcode Scanner

Motorola DS4800 Barcode Scanner

The DS4800 Series offers the best of both worlds - scanning capability and chic consumer styling. The DS4800 Series will not only impress your shoppers, it will keep lines moving at the POS. It can capture any 1D and 2D barcode printed on a paper label or displayed on the screen of a shopper"s mobile phone.
Discontinued - Need Assistance
See all options
  • Brings a new level of style to your Point of Sale.
  • Easy-to-use scanner can complement the most sophisticated, fashion-conscious decor.
  • PRZM Intelligent Imaging technology for scanning of any 1D or 2D barcode
  • Choose any combination of visual, audio or physical decode feedback to meet the needs of your environment
  • Driver"s license parsing option
  • Support for over 90 international keyboards enables easy deployment anywhere in the world.

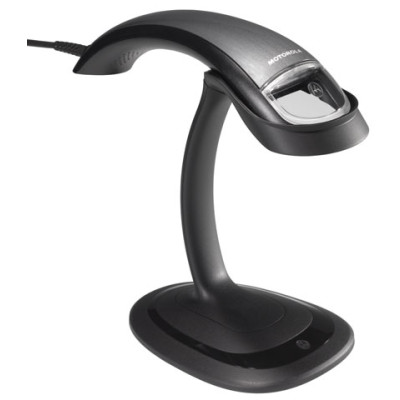

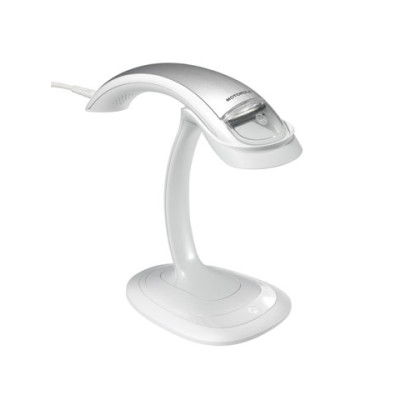

  • Stylish Intellistand for flexible scanning modes - handheld and presentation
  • Capture every barcode that is presented at your POS - 1-D, 2-D, printed on labels, displayed on a mobile phone screen, high density, poorly printed, damaged and under shrinkwrap.
  • Customizable to fit into your environment and promote your brand.
  • Capture checks, ID cards and more for easy electronic recordkeeping.
  • Configured to the most optimal settings for reduced out-of-the-box user setup time.

Physical characteristics

Dimensions
7.47 in. L x 2.61 in. W x 1.90 in. H

Weight
6 oz. (168 g.) including cable; cable weight = 2 oz. (53 g.)

Voltage & Current
5 VOC ± 10% @ 360mA (RMS Typical)

Power Source
USB VBUS

Color

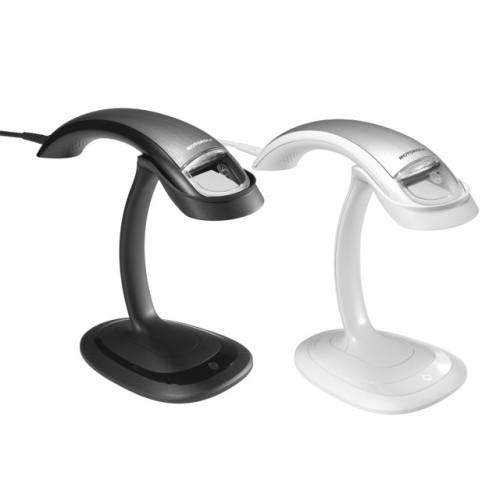

Alpine White & Midnight Black

Suported Host Interfaces
USB

Keyboard Support
Supports over 90 international keyboards

Performance characteristics

Skew tolerance1
86° (measured using 100% UPC-A; ±3 degree accuracy)

Pitch tolerance
82° (measured using 100% UPC-A; ±3 degree accuracy)

Roll tolerance2
360°

Motion tolerance
Up to 20 in./sec.

Light source
Aiming 606nm LED; Illumination: 640nm LED

Imager Field of View
40° (H) x 26° (V) Nominal

Minimum print contrast
20%

Utilities Management

123ScanScanner Managment Services (SMS) Zebra Scanner SDK

Regulatory specifications

Environmental
Compliant with RoHS directive 2002/95/EEC

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1 2nd ed., EN60950-1 / IEC 60950-1 2nd ed.

LED Safety
IEC/EN 60825-1:2001, IEC/EN 62471:2006

EMI/RFI
FCC Part 15 Class B, ICES-003 Class B, EN 55022 Class B, EN 55024

User environment

Ambient light immunity
Max 108, 000 Lux

Operating temperature
32° F to 104° F/0° C to 40° C

Storage temperature
-40° F to 158° F/-40° C to 70° C

Humidity
5% to 95% RH, non condensing

Drop specifications
Withstands multiple 5 ft. (1.5 m) drops to concrete

Tumble testing
250 cycles (500 drops) in 1/2 meter tumbler

Sealing
IP40

barcode Symbologies
1-D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code 128, GS1- 128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concatenated 2-D: PDF417, MicroPDF417, Composite Codes, TLC-39, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Han Xin Postal: Australian Post, US PLANET, Royal Mail 4 State Customer, US POSTNET, KIX Code (Dutch), UK Postal, Japan Post, UPU 4 State Postal FICS (Post US4), USPS 4 State Postal (Post US3)

Decode ranges (typical)5

Near Far
mil Code 39 0.8 in. 2 cm 4.7 in. 11.9 cm
4 mil Code 39 0 in. 0 cm 8.5 in. 21.6 cm
5 mil Code 39 0 in. 0 cm 10.0 in. 25.4 cm
7.5 mil Code 39 0 in. 0 cm 15.5 in. 39.4 cm
13 mil (100% UPC-A) 0 in. 0 cm 22.4 in. 56.9 cm
20 mil (Code 39) 0 in 0 cm 36.0 in. 91.4 cm
26 mil (200% UPC-A) 0 in. 0 cm 47.6 in. 120.9 cm
100 mil reflective 0 in. 0 cm 175.0 in. 444.5 cm
5 mil (PDF 417) 0.8 in. 2 cm 6.2 in. 15.7 cm
10 mil (Data Matrix) 0.3 in. 0.8 cm 8.5 in. 21.6 cm
Extended Details
Refine Your Options
Shop By
Shopping Options
Connection
  1. USB (4)
Form Factor
  1. Handheld (13)
Scanner Capability
  1. 2D (9)
Scanner Type
  1. Imager (9)
Scan Pattern
  1. Area (9)
  1. Motorola DS4800 Barcode Scanner
    Part #: DS4801-DL00004ZZNA | SKU: MOT278911

    2D Imager, Driver's License parsing. Includes USB cable. Color: Black
  2. Motorola DS4800 Barcode Scanner
    Part #: DS4801-SR00004ZZNA | SKU: MOT278915

    SCANNER ONLY, 2D Imager, Standard Range. Color: Black. Cables and stand sold separately.
  3. Motorola DS4800 Barcode Scanner
    Part #: DS4801-SRWU0000SGW | SKU: MOT296094

    USB Stand Kit. 2D Imager. Includes USB cable and stand. Color: White.
  4. Motorola DS4800 Barcode Scanner
    Part #: DS4801-DL0000WZZNA | SKU: MOT278912

    2D Imager, Driver's License parsing. Includes USB cable. Color: White.
  5. Motorola DS4800 Barcode Scanner
    Part #: DS4801-SR0000WZZNA | SKU: MOT278916

    DS4800, 2D Imager, Standard Range. Includes USB cable. Color: White
  6. Motorola DS4800 Barcode Scanner
    Part #: DS4801-DLWU0000SGW | SKU: MOT296091

    USB Stand Kit. 2D Imager, Driver''s License parsing. Includes USB cable and stand. Color: White.
  7. Motorola DS4800 Barcode Scanner
    Part #: DS4801-DL0000WZZWW | SKU: MOT296089

    2D Imager, Drivers License parsing. Includes USB cable. Color: White
  8. Motorola DS4800 Barcode Scanner
    Part #: DS4801-SR4U0000SGN | SKU: MOT278917

    Zebra DS4800 Handheld Barcode Scanner - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - Midnight Black
  9. Motorola DS4800 Barcode Scanner
    Part #: DS4801-DL4U0000SGN | SKU: MOT278913

    USB Kit, 2D Imager, Driver's License Parsing. Color: Black. Includes USB cable and stand.
  10. Motorola DS4800 Barcode Scanner
    Part #: DS4801-DLWU0000SGN | SKU: MOT278914

    USB Kit, 2D Imager, Driver's License Parsing. Color: White. Includes USB cable and stand.
