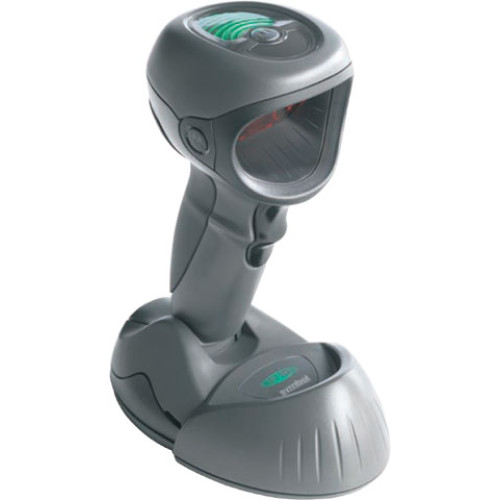

Photo of Motorola DS 9808 R
Motorola logo

Motorola DS 9808 R RFID Reader

The Motorola DS 9808 R is a ground-breaking data capture device that represents two Motorola firsts. The DS 9808 R is not only the first combination 1D/2D bar code scanner and RFID reader, it also represents a new RFID product category - the first combination handheld/hands-free UHF RFID reader. Motorola's revolutionary imaging engine enables the capture of 1D and 2D bar codes as well as images and signatures, with record swipe speeds on both 1D and 2D bar codes. The DS 9808 R also offers a new standard for bar code scanner reliability, providing the maximum uptime required in the demanding retail environment. The 4 ft./1.2 m drop to concrete drop specification ensures dependable performance in spite of the inevitable everyday drops and bumps.

Interface

Frequency ?

Scanner Type ?

Style ?

DS 9808 R Options
Part # DescriptionAvailabilityPriceOrder
DS9808-DL00007C1WR DS9808-R, SCANNER ONLY, 2D Imager, Standard Range, Driver's License Parsing, Integrated RFID. Cable and power supply sold separately. Ships Today $1,000.57
DS9808-LL20007C1WR DS9808-R, Digital Scanner, Long Range, driver's license parsing, Twilight Black, Integrated RFID (902 to 928 MHz, US Only). Ships in 24-48 Hours $1,101.99
DS9808-LR20007C1WR DS9808-R, Digital Scanner, Long Range, Twilight Black, Integrated RFID (902 '" 928 MHz) '" USA, Canada, Mexico, Colombia, El Salvador and Guatemala only. Ships in 24-48 Hours $1,040.42
DS9808-SR00007C1WR DS9808-R, RFID, 1D and 2D Digital Scanner, Standard Range, Twilight Black, Integrated RFID (902 to 928 MHz, USA, Canada, Mexico, Colombia, El Salvador and Guatemala only Only) Scanner Only. Requires (Part# Cba-U16-S08par), (Part# Pwrs-14000-148R) and (Part# 23844-00-00r). Ships in 24-48 Hours $989.61
DS9808-SR7C1U16AR DS9808-R, (With RFID 902 '" 928 MHz) Standard Range, USB Kit - USA, Canada, Mexico, Colombia, El Salvador and Guatemala only. Includes: (Part# DS9808-SR00007C1WR) Scanner, (Part# CBA-U16-S08PAR) RFID USB Cable, (Part# PWRS-14000-148R) Power supply, and (Part# 23844-00-00R) Line Cord. Ships Today $1,076.98
DS9808-LR7C1U16AR DS 9808, (with RFID 902 '" 928 MHz) Long Range, USB Kit - USA, Canada, Mexico, Colombia, El Salvador and Guatemala only. Includes (Part# DS9808-LR20007C1WR) Scanner, (Part# CBA-U16-S08PAR) RFID USB Cable, (Part# PWRS-14000-148R) Power supply, (Part# 23844-00-00R) Line Cord. Ships in 24-48 Hours $1,149.33

Motorola DS 9808 R Details

Performance characteristics

Decode capability
1-D/2-D, RFID

Physical characteristics

Dimensions
8.5 in. (max) H x 3.5 in. W x 6 in. D 21.6 cm (max) H x 8.9 cm W x 15.2 cm D

RFID

RFID frequency range
902 - 928 Mhz (US, Canada & Mexico); Other countries pending

Standards supported
EPC global Class 1 Gen 2 (ISO 18000-6C)

Regulatory specifications

Electrical safety
C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

Environmental
RoHS Directive 2002/95/EEC, RoHS-compliant

Laser/LED safety
EN 60825-1, 21CFR1040.10, CDRH Class II, IEC Class 2

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B, Canada RSS-210

User environment

Operating temperature
32° to 104° F /0° to 40° C

Drop specifications
Withstands multiple 4 ft./1.2 m drops to concrete

Humidity
5% to 95% RH (Non-Condensing)
