Photo of Motorola LS 1203
Motorola logo

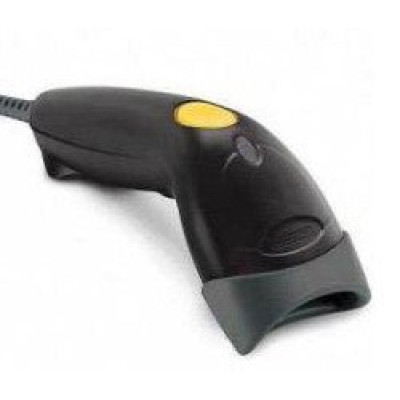

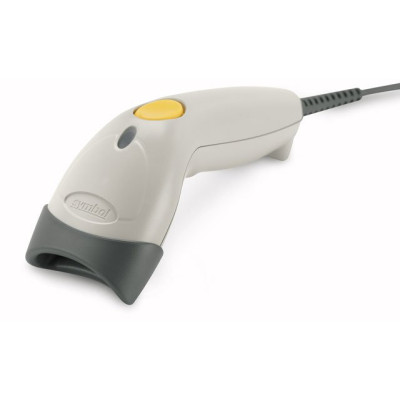

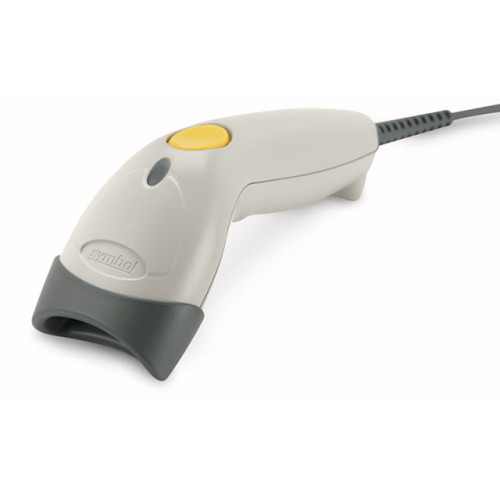

Motorola LS 1203 Scanner

The Motorola LS 1203 handheld scanner is designed to meet the needs of small retailers, delivering high quality laser scanning, user-friendly ergonomics and durability at an affordable price. From gift shops, boutiques, video and sporting goods stores to jewelers, florists and more, the LS 1203 delivers the features, functionality and reliability needed to improve operational efficiencies from the checkout line to the back room. Manual keying is minimized, customers are charged the correct amount and paper-based inventory processes are automated. The result is faster checkout, increased customer satisfaction, increased employee productivity and a rapid return on investment. The LS 1203 features a choice of USB, Keyboard Wedge and RS232 interface kits as well as scanner-only versions.
Questions?
1-888-875-7170
We respond to every email

Brand

Form Factor

Connectivity

Scanner Capability

Scan Pattern

Scanner Type

Color

Included Cables ?

Ruggedness

LS 1203 Options
Part # DescriptionAvailabilityPriceOrder
LS1203-7AZU0100ZR LS1203, USB kit, 1D Laser. Includes USB cable. Color: Black.
Ships Free in 24-48 Hours
$107.98
Retail $182
Save 40%
LS1203-1AZU0100ZR LS1203, USB Kit, 1D Laser. Includes USB cable. Color: White. Ships Free Today $107.98
Retail $182
Save 40%
LS1203-CR10007R LS1203, SCANNER ONLY, 1D Laser. Color: Black. Cables and accessories must be purchased separately. For the full kit purchase (Part# LS1203-7AZU0100SR) Ships Free Today $91.95
Retail $155
Save 40%
LS1203-CR10001R LS1203, SCANNER ONLY, 1D Laser. Color: White. Cables and accessories must be purchased separately. For the full kit purchase (Part# LS1203-1AZU0100SR)
Ships Free in 24-48 Hours
$91.95
Retail $155
Save 40%

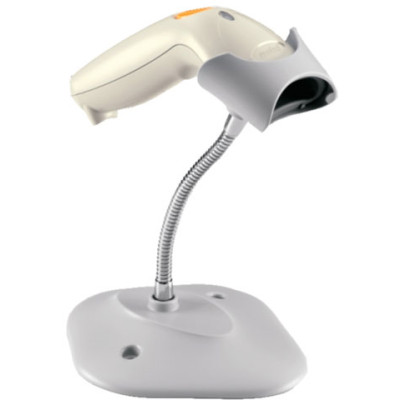

LS1203-1AZU0100SR LS1203, USB kit, 1D Laser. Includes USB cable and stand. Color: White. Ships Free Today $107.98
Retail $182
Save 40%

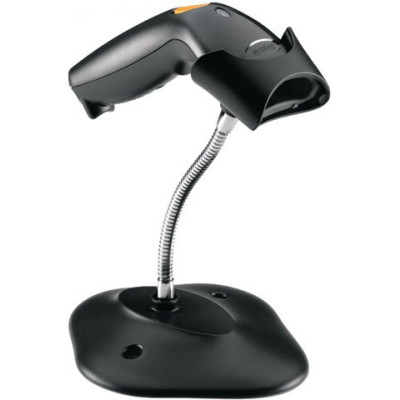

LS1203-7AZU0100SR LS1203, USB kit, 1D Laser. Includes USB cable and stand. Color: Black. Ships Free Today $107.98
Retail $182
Save 40%
LS1203-7HDU0100SR LS1203-HD, USB kit, 1D Laser, High Density. Includes USB cable and stand. Color: Black. Ships Free Today $115.95
Retail $215
Save 46%
LS1203-HD20007ZZR LS1203-HD, SCANNER ONLY, 1D Laser, High Density. Color: Black. Cables and accessories must be purchased separately. For the full kit purchase (Part# LS1203-7HDU0100SR) Ships Free Today $112.91
Retail $185
Save 38%
LS1203-1AZK0100SR LS1203, PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: White. Ships Free Today $104.01
Retail $178
Save 41%
LS1203-7AZU0100Z LS1203, USB kit, Black. Includes 7 ft. USB cable. See Replacement Call for Details
LS1203-7AZR0100A LS1203, RS-232 kit, Black. Includes 7 ft. RS-232 cable and 110 VAC US power supply. See Replacement Call for Details
LS1203-7AZK0100Z LS1203, PS/2 kit, Black. Includes 7 ft. PS/2 Keyboard wedge cable. See Replacement Call for Details
LS1203-1AZU0100Z LS1203, USB kit, White. Includes 7 ft. USB cable. See Replacement Call for Details
LS1203-1AZR0100A LS1203, RS-232 kit, White. Includes 7 ft. RS-232 cable and 110 VAC US power supply. See Replacement Call for Details
LS1203-1AZK0100Z LS1203, PS/2 kit, White. Includes 7 ft. PS/2 Keyboard wedge cable. See Replacement Call for Details
LS1203-CR10011R LS1203, SCANNER ONLY, 1D Laser. Cables and accessories must be purchased separately. See accessories. Check Availability Call for Details
LS1203-7HDK0200SR LS1203, High-Density Keyboard wedge Kit: Includes cable and stand. Color: Black Check Availability Call for Details
LS1203-7AZR0100DR LS1203, RS-232 Scanner Kit With 7 ft. Straight Cable and Stand. Color: Black Check Availability Call for Details
LS1203-7AZR0100C LS1203, RS-232 kit, Black. Includes RS-232 cable and 100 VAC Asia-Pacific power supply. Check Availability Call for Details
LS1203-7AZR0100B LS1203, RS-232 kit, Black. Includes RS-232 cable and 220 VAC Euro power supply. Check Availability Call for Details
LS1203-7AZR0100AR LS1203, RS-232 kit, Black. Includes 7 ft. RS-232 cable and 110 VAC US power supply. Check Availability Call for Details
LS1203-7AZK0100ZR LS1203, PS/2 kit, Black. Includes 7 ft. PS/2 Keyboard wedge cable. Check Availability Call for Details
LS1203-7AZK0100SR Motorola LS1203 Scanner, PS/2 kit, 1D Laser. Includes PS/2 cable and stand. Color: Black. Check Availability Call for Details
LS1203-1AZR0100DR LS1203, RS-232 kit with 7 ft. straight cable, power supply and stand. Color: White Check Availability Call for Details
LS1203-1AZR0100C LS1203, RS-232 kit, White. Includes RS-232 cable and 100 VAC Asia-Pacific power supply. Check Availability Call for Details
LS1203-1AZR0100B LS1203, RS-232 kit, White. Includes RS-232 cable and 220 VAC Euro power supply. Check Availability Call for Details
LS1203-1AZR0100AR LS1203, RS-232 kit, White. Includes 7 ft. RS-232 cable and 110 VAC US power supply. Check Availability Call for Details
LS1203-1AZK0100ZR LS1203, PS/2 kit, White. Includes 7 ft. PS/2 Keyboard wedge cable. Check Availability Call for Details

Motorola LS 1203 Details

Performance Characteristics

Scan pattern
Single line

Minimum resolution
30% minimum reflectance

Interfaces supported
Keyboard wedge, RS-232, USB

Pitch1
± 65°

Roll (Tilt)2
± 30° from normal

Skew (yaw)3
± 60°

Depth of field
From contact to 8 in./20.32 cm on 100% UPC/EAN symbols

Decode capability
1-D, See data sheet for full list of supported symbologies

Technology
Laser

Physical Characteristics

Color
Twilight black, Cash register white

Dimensions
2.4 in. H x 7.1 in. L x 2.4 in. W(6.2 cm H x 18 cm L x 6 cm W)

Power source
Host power or external power supply (depends on host type)

Weight
Approximately 4.3 oz. / 122 g (without cable)

Corded
Yes

Handheld
Yes

Voltage and current4
5 +/-10%VDC @ 100 mA (Stand by: <35 mA)

Regulatory Specifications

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B

Laser/LED safety
EN 60825-1, IEC 60825-1, 21CFR1040.10

Environmental
RoHS Directive 2002/95/EEC

User Environment

Operating temperature
32° to 122° F/0° to 50° C

Drop specifications
Withstands multiple 5 ft./1.524m drops to concrete

Storage temperature
-40° to 158° F/-40° to 70° C

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)
