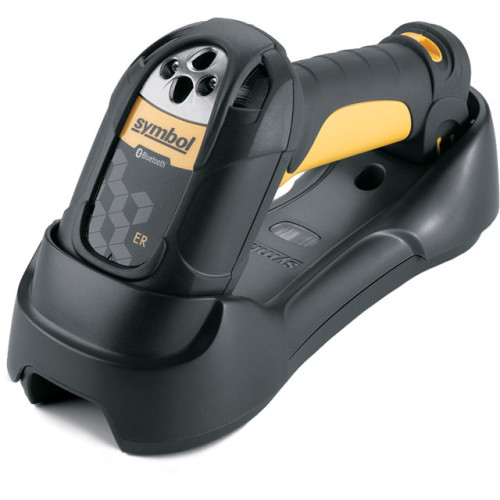

Photo of Motorola LS3578-ER
Motorola logo

Motorola LS3578-ER Scanner

Scan all one-dimensional (1D) barcodes from practically anywhere with a Bluetooth-enabled cordless rugged scanner. The Symbol LS3578-ER reads labels as far away as 45 feet and as close as four inches--the greatest working range available in a rugged, handheld scanner. Ergonomically designed to be comfortable during long shifts, the scanner gives operators a 150-foot range, which far exceeds the 6-foot corded device range. Designed for use in harsh environments, the Symbol LS3578-ER withstands multiple 6.5-ft. (2-m) drops to concrete and has IP65-rated sealing for protection against the elements. Remote Scanner Management (RSM) enables efficient upgrades from a central location.
  • Wide working range allows scanning at .25 in. to 45 ft
  • Reads all 1D linear barcodes
  • Bluetooth-enabled cordless scanning
  • Withstands multiple 6.5 ft. / 2 m drops to concrete
  • IP65 rated
  • Bright LED and beeper with adjustable volume
  • Allows use of up to three scanners with a single cradle
  • Bright 650-nm laser aiming dot
  • Compatibility with GS1 DataBar symbology
  • Advanced data formatting eliminates costly modifications to the host software
  • Batch mode operation
  • Remote scanner management enables you to discover, provision and upgrade devices from a central remote location.
Questions?
1-888-875-7170
We respond to every email

Connectivity

Scanner Capability

Scanner Type

Item Condition

Form Factor

Scan Pattern

Color

Included Cables ?

Communication Type ?

Ruggedness

LS3578-ER Options
Part # DescriptionAvailabilityPriceOrder
LS3578-ER20005WR LS3578ER, SCANNER ONLY, 1D Laser, Cordless, Extended Range. Cables and accessories must be purchased separately. For the full kit purchase (Part# LS3578-ERBU0100UR). Ships Free Today $655.20
LS3578-ERBR0100UR LS3578ER, RS-232 Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, RS-232 cable, Power supply, and Line Cord. Ships Free Today $899.28
LS3578-ERBU0100UR LS3578ER, USB Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, USB cable, Power supply, and Line Cord. Ships Free Today $902.16
LS3578-ERBU0100IR LS3578ER, USB International Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, USB cable, Power supply. Requires country-specific line cord. See accessories. Ships Free Today $898.56
LS3578-ERBR0100IR LS3578ER, RS-232 International Kit, 1D Laser, Cordless, Extended Range. Includes Charging and Communications Cradle, RS-232 cable, Power supply. Requires country-specific line cord. See accessories.
Ships Free in 3-5 Days
$895.68
LS3578-ER20195WR LS3578ER, SCANNER ONLY, 1D Laser, Cordless, Extended Range. This part is custom configured for CL2/Macy's, please call for details. See Replacement Call for Details
LS3578-ER20175WR LS3578ER, SCANNER ONLY, 1D Laser, Cordless, Extended Range. This part is custom configured for CL2/Macy's, please call for details. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
CBA-U01-S07ZAR Cable, USB Cable, 7 ft. (2m) Straight, Series A Connector. Ships Free Today $25.36
Retail $27
CBA-R37-C09ZAR Cable, - RS-232: DB-9 Female CON. 9 ft. (2.8m) Coiled, POWER PIN Ships Free Today $59.16
Retail $78
Save 24%
BTRY-LS34IAB00-00 Spare battery for LS3478, LS3578, DS3478 and DS3578 Ships Free Today $38.44
Retail $50
Save 23%
50-16000-182R AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
STB3578-C0007WR 3578 Standard Cradle, Radio/Charging used with NON FIPS compliant scanners. Ships Free Today $180.15
Retail $275
Save 34%
CBA-R01-S07PAR Cable, RS-232 Cable (7 ft. Straight, Standard DB-9F TxD-2). Requires Power supply (Part# PWRS-14000-253R). Ships Free Today $24.22
Retail $25
CBA-U09-C15ZAR Cable, 15', Coiled, standard USB cable, Series A. Ships Free Today $61.19
Retail $90
Save 32%
CBA-U08-C15ZAR Cable, PoweredUSB connector, 15 ft, Coiled Call to purchase. Ships Free Today $59.89
Retail $87.70
Save 31%
CBA-U10-S15ZAR Cable, USB Series A connector, 15 ft, Straight Ships Free Today $36.41
Retail $46
Save 20%
21-32665-46R Universal Battery Charger Adapter for 3X78 Series Battery. Works with LS3478, LS3578, DS3478, DS3578 batteries. Ships Free Today $66.88
Retail $100
Save 33%
21-52612-01R Rugged scanner holder (can be mounted on forklift) Ships Free Today $81.91
Retail $125
Save 34%
50-15400-031 Tool Balancer: Pulley 10' Cable Ships Free Today $97.23
Retail $143
Save 32%
CBA-K01-S07PAR Cable, 7 ft. straight PS/2 Keyboard wedge cable. Ships Free Today $20.47
CBA-M01-S07ZAR Cable, (7 feet, Straight, Ibm 468x/9x-Port 9b) Ships Free Today $44.13
Retail $60
Save 26%
UBC2000-I500DES Universal Charger-Cradle, Universal Battery Charger 4-Slot Base. Includes power supply and and DC line cord. Order 3 wire grounded AC Line Cord separately (Part# 23844-00-00R). Ships Free Today $137.14
Retail $215
Save 36%
CBA-M02-C09ZAR Cable, 9 feet, Coiled, IBM 468X/9X-Port 9B Ships Free Today $54.60
Retail $78.40
Save 30%
CBA-R02-C09PAR Cable, Assembly (9 feet, Coiled, RS-232, STD-DB9 Female, TXD on 2). Required power supply not included, see (Part# PWRS-14000-253R). Ships Free Today $28.37
Retail $32
Save 11%
25-71918-01R Cable, Assembly, 9 ft, Extended, Coiled. Connects LS34XX to the VC5090. Non-standard USB, call for more information. Ships Free Today $66.88
FLB3508-C0007R Forklift Cradle Charging Only. Along with the Forklift Cradle, you will need the power supply - wired directly to the battery (Part# PWRS-14000-122R) and the DC cord to the Cradle (Part# 25-54956-01R). Ships Free Today $131.02
Retail $200
Save 34%
11-66553-06R Wall mount bracket for several Motorola DS and LS barcode scanners. Color: Gray. Ships Free Today $28.37
Retail $32
Save 11%
11-35035-01R Industrial Scanner Holster for the Phaser, 3408, 3478 and 3578 Ships Free Today $47.54
Retail $66
Save 27%
CBA-S04-C16ZAR Cable, Synapse Adapter Cable, 16 ft, Coiled Ships Free Today $46.97
Retail $65
Save 27%
CBA-U03-S07ZAR Cable, USB, Power Plus connector, 7 ft, Straight Call to purchase. Ships Free Today $30.67
Retail $36
Save 14%
CBA-R06-C20PAR Cable, Universal Style 3, RS-232, 20 ft, Coiled, Gray Ships Free Today $57.21
Retail $83
Save 31%
FLB3578-C0007WR Crd/Chg & Radio/Twlblk/FLB35xx Ships Free Today $229.31
Retail $350
Save 34%
CBA-K02-C09PAR Cable, Keyboard wedge, PS/2, Power Port, 9 ft, Coiled Ships Free Today $27.00
CBA-T13-C09ZAR Cable, (9 feet, Coiled, RS-232) for the VRC 7900/8900. Ships Free Today $57.21
Retail $83
Save 31%
STB3508-C0007R STB3508 Cradle, Charge Only Cradle (No Communication), Compatible with LS3578 and DS3578. Cradle Only. Power supply and US AC line cord must be purchased separately. Ships Free Today $83.62
Retail $125
Save 33%
CBA-K08-C20PAR Cable, (20 feet, Keyboard wedge, PS/2, PW). Ships Free Today $57.65
Retail $83
Save 30%
CBA-R32-S07PAR Cable, 7 feet, Straight, RS-232, TRU TTL DB-9F Ships Free Today $39.16
Retail $50.80
Save 22%
25-54956-02R Power adapter cable, Connects DC Power Supply (Part# PWRS-14000-122) to forklift cradle. Ships Free Today $54.37
Retail $78
Save 30%
CBA-S01-S07ZAR Synapse Adapter Cable, 7 ft. From scanner to synapse. (Must be used in conjunction with Synapse SmartCable. Please call for details.) RoHS. Ships Free Today $23.08
CBA-U06-S09EAR Cable, USB EAS, Series A Connection, 9 ft, Straight Ships Free Today $44.13
Retail $60
Save 26%
CBA-U15-S15ZAR Cable, 15' PoweredUSB cable, Straight, Call to purchase. Ships Free Today $38.44
Retail $50
Save 23%
CBA-R23-S07ZAR Cable, (Cba-R23-S07zar) Connector Cable Ships Free Today $30.48
Retail $36
Save 15%
PWRS-14000-122R Power supply for 9-60 VDC Forklift
Ships Free in 3-5 Days
$295.79
Retail $390
Save 24%
PWR-BGA9V18W0WW Universal Power Supply, 9v D/C, 100-250v A/C. Requires Line Cord (P/N 50-16000-182R). Ships Free Today $33.32
Retail $41
Save 18%
CBA-R03-C12PAR Cable, RS-232, 12 feet, Standard DB-9F, TxD on 2, Coiled
Ships Free in 3-5 Days
$38.71
Retail $50
Save 22%
CBA-M04-S07ZAR Cable, 7 feet, Straight, IBM 468X/9X-Port 5B Ships Free Today $33.61
Retail $41.50
Save 19%
CBA-K06-C12PAR Cable, 12 feet, Keyboard wedge, PS/2, Power Port and Coiled
Ships Free in 3-5 Days
$44.13
Retail $60
Save 26%
CBA-K05-S15PAR Cable, Keyboard wedge, PS/2, 15 ft, Straight
Ships Free in 3-5 Days
$38.71
Retail $50
Save 22%
25-71917-03R RS-232 coiled cable, 9'. For use with VC5000/LS3408. Ships Free Today $107.17
Retail $154
Save 30%

Motorola LS3578-ER Details

Rugged, cordless scanner with integrated Bluetooth

Capture bar codes over a wide range of distances

The Symbol LS3578-ER rugged, cordless scanner provides the greatest working range of any available rugged scanner, allowing employees to scan items from as close as 4 inches/10 cm to as far away as 45 feet /13.7 m. It also allows employees to quickly switch from reading bar codes on inventory to capturing smaller symbologies on bar code menus and pick lists.

In the yard, warehouse, distribution center, manufacturing plant or retail store, the Symbol LS3578-ER offers superior performance and reliability as well as a user-friendly form factor that helps ensure comfortable use over long shifts. Plus, integrated Bluetooth wireless personal area networking (WPAN) provides reliable and secure wireless data transmission between the scanner and host.

Cordless freedom for improved productivity

By eliminating the cord between the scanner and host, employees can move freely throughout their work environment, increasing productivity and efficiently. You save time and keep supply chain inventory up to date at all times. Plus, having no cord translates into less downtime from cable breakdowns � a common point of failure in handheld devices used in industrial facilities.

Rugged design to maximize uptime

As rugged as it is innovative, the Symbol LS3578-ER is designed for scan-intensive industrial applications in the harshest operating conditions. Industry-leading impact tests ensure reliable performance in spite of the inevitable accidental drops. The device is impervious to dust and water, and its exit window is scratch-resistant and recessed for the highest level of durability. As a result, you avoid unnecessary equipment downtime or expensive equipment replacement costs.

Low total cost of ownership (TCO)

In addition to enhancing productivity, the Symbol LS3578-ER offers a low TCO. The industrial-strength construction maximizes the scanner's working life, and multiple on-board interfaces provide true plug-and-play simplicity with your host system today and tomorrow. Support for Remote Scanner Management (RSM) enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs.

And since even the most rugged devices require a support plan, a full complement of Enterprise Mobility Services are available to help you protect your investment and maintain peak performance.

For more information, contact us at +1.800.722.6234 or +1.631.738.2400.

Features Benefits
Wide working range: 4 in. (10 cm) to 45 ft. (13.7 m) Allows workers to scan items at varying distances without having to move, reducing fatigue and speeding task completion
Integrated Bluetooth Class 2 v1.2 (Serial Port and HID Profiles with authentication and security) Cordless scanning with secure wireless data transmission
Cordless scanning Enables real-time bar code data collection unrestricted by a cable, reducing repairs made necessary by cable failure
Rugged design withstands multiple 6.5-ft. (2-m) drops to concrete Ensures maximum reliability with less downtime resulting from accidental drops
IP65-rated seal (electronic enclosure) Protects against water and dust for reliable performance in the harshest environments
Bright LED and beeper with adjustable volume Helps ensure that decode feedback is clearly visible and audible to users, even in noisy environments
Multi-point communication Use up to three scanners with a single cradle, reducing capital expenditures and maintenance costs
Bright 650 nm laser aiming dot Delivers clearly visible line for more accurate scanning
Advanced data formatting Eliminates costly modifications to the host software
Batch mode operation Increases application design flexibility to better meet your specific needs
Remote scanner management ready Enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs

Symbol LS3578-ER Specifications

Physical Characteristics
Dimensions: 7.34 in. L x 4.82 in. W x 2.93 in. D
(18.65 cm H x 12.25 cm W x 7.43 cm D)
Weight (including LiON battery): 14.8 oz. (420 gm)
Battery: 2200 mAh Lithium Ion Battery
Battery charge time: Fully charged (100%) in 3 hours
Color: Twilight Black and Yellow
Performance Characteristics
Scanner type: Retrocollective
Light source: 650 nm visible laser diode
Scan repetition: 36 scans per second typical
Minimum element width: 7.5 mil (0.191 mm)
Nominal working distance: See decode zone
Print contrast: 25% minimum reflective difference
Roll (Tilt)1: +/- 10 degrees from normal
Pitch2: +/- 65 degrees from normal
Skew (Yaw)3: +/- 60 degrees from normal
Decode capability: UPC.EAN, UPC.EAN with Supplemental, UCC.EAN 128, JAN 8 & 13, Code 39, Code 39 Full ASCII, Code 39 Trioptic, Code 128, Code 128 Full ASCII, Codabar (NW7), Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, Code 32, Bookland EAN, IATA, UCC/EAN RSS and RSS variants
Interfaces supported: RS232, Keyboard Wedge, Wand Emulation, Scanner Emulation, IBM 468X/469X, USB and Synapse
User Environment
Operating temperature: -4� to 122�F (-20� to 50�C)
Storage temperature: -40� to 140�F (-40� to 60�C)
Humidity: 5% to 95% relative humidity, noncondensing
Sealing: Sealed to IP65 specifications
Drop specifications: Unit functions normally after repeated 6.5-ft. (2-m) drops to concrete
# of Cradle Insertions: 250,000+ insertions
Ambient light immunity: Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight.
Indoor: 450 foot candles/4,842 LUX
Outdoor: 4,000 foot candles/43,040 LUX
Electrostatic discharge: Conforms to 15 kV air discharge and 8 kV of contact discharge
Cradles STB 3508 and FLB 3508 STB 3578 and FLB 3578
Power requirements: 4.75 � 14 VDC 4.75 � 14 VDC
Typical current draw:
Not charging 10 mA 105 mA @5V
45 mA @9V
Fast rate charge 915 mA @5V
660 mA @9V
915 mA @5V
660 mA @9V
Slow rate charge 480 mA @5V
345 mA @9V
480 mA @5V
345 mA @9V
Radio specification
Radio: Bluetooth, Class 2, Version 1.2, Serial port and HID Profiles 2.402 to 2.480 GHz adaptive frequency hopping (co-existence with 802.11 wireless networks) Data rate: 720 kbps
Regulatory
Input transient protection: IEC 1000-4-(2,3,4,5,6,11)
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Japan VCCI/MITI/Dentori
Laser safety: IEC825-1 Class 2
Warranty
The Symbol LS3578-ER is warranted against defects in workmanship and materials for a period of 3 years (36 months) from date of shipment, provided that the product remains unmodified and is operated under normal and proper conditions. See full warranty for details.
