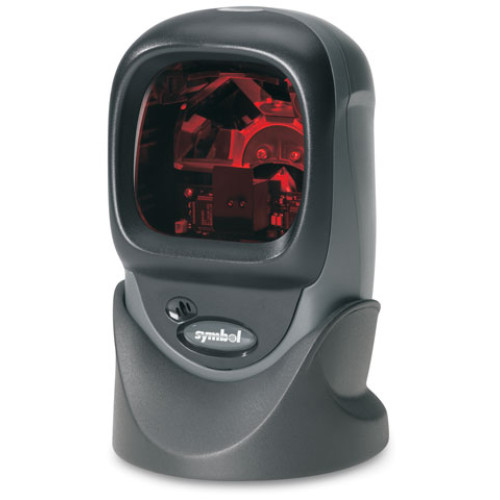

Motorola LS9203 Scanner

Physical Characteristics

Dimensions without stand:

5.51 in. H x 3.49 in. W x 2.96 in. D
(14 cm H x 8.86 cm W x 7.52 cm D)

Dimensions with stand:

6.13 in. H x 3.93 in. W x 3.93 in. D
(15.57 cm H x 9.98 cm W x 9.98 cm D)

Weight:

Scanner only: 9.9 oz. (282 g)
With stand: 12.2 oz. (379 g)

Power source:

Depending on host:
* Host power
* External power supply

Voltage:

5.0 VDC +/- 10%

Nominal current:

275 mA

Power:

1.4 watts

Mounting options:

Fixed-mount stand

Color:

Twilight Black

Performance Characteristics

Light Source:

650 nm visible laser diode

Yaw tolerance (typical):

+/- 50°

Pitch tolerance (typical):

+/- 50°

Roll tolerance (typical):

0 to 360° Refers to 100% UPC bar code (80% contrast) located 4 in. (10 cm) from the scanner nose

Print contrast:

25% minimum reflective difference

Scan patterns:

Omni-directional, 20 interlocking lines

Scan rate:

1500 scans/second

Depth of field:

0 to 8.5 in. (0 to 21.6 cm) @ 13 mil (100% UPC/EAN)

Nominal working range:

5 mil: (38%) 1 to 2.5 in. (2.5 to 6.4 cm)
7.8 mil: (60%) 0 to 6 in. (0 to 15.2 cm)
10.4 mil: (80%) 0 to 7.5 in. (0 to 19 cm)
13 mil: (100%) 0 to 8.5 in. (0 to 21.6 cm)

Width of field:

1.6 in. (40 mm) @ face
6.42 in. (163 mm) @ 8.5 in

Minimum resolution:

5 mil

Decode capability:

UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/ EAN 128, Code 128, ISBT 128, Code 39, Trioptic Code 39, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Code 93, Code 11, Codabar, MSI, RSS 14, RSS Limited, RSS Expanded

Interfaces supported:

USB, RS 232, Keyboard Wedge and Wand

User Environment

Operating temperature:

32° to 104°F (0° to 40° C)

Storage temperature:

-40° to 158°F (-40° to 70°C)

Humidity:

5% to 95% noncondensing

Drop specifications:

Withstands repeated 4-ft. (1.2-m) drops to concrete

Ambient light immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions.
Fluorescent, incandescent, mercury vapor and sodium vapor: 450 foot-candles (4,844 lux)
Sunlight: 8,000 foot-candles (86,111 lux)

Regulatory

Electrical safety:

Certified to UL 1950, CSA C22.2 No. 950

Laser safety:

CDRH Class IIa Laser Product
IEC 60825 Class 1 Laser Product
Class IIa Laser Product ? Avoid Long-Term Viewing of Direct Laser Light

EMC:

CISPR B, FCC B, EN60825

Warranty

The Symbol LS9203 is warranted against defects in workmanship and materials for a period of two years (24 months) from date of shipment, provided the product remains unmodified and is operated under normal and proper conditions.
