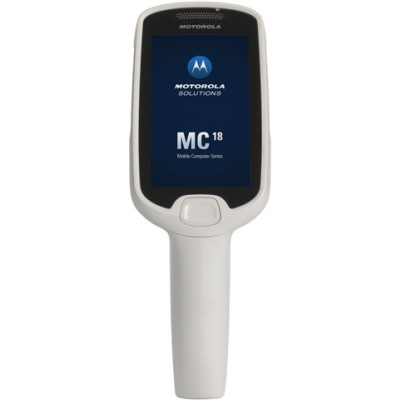

Photo of Motorola MC18
Motorola logo

Motorola MC18 Hand Held Computer

The MC18 personal shopper is an intuitive, easy-to-use mobile computer that enhances the customer experience by creating shorter lines at checkout and moving customers more quickly through their shopping trip. With the MC18, retailers can market electronically to the customer at the point of decision""in the store aisle""by gathering the customer's purchasing behavior to deliver targeted coupons and suggestions for complementary items to the portable shopping device, while driving additional spending and perceived added value. This next generation self-service mobile computing solution enables shoppers to scan their own items, pack items as they shop and check out without a queue. For the retailer, it enhances customer loyalty, delivers better customer service and increases revenue and cost savings.
MC18 Options
Part # DescriptionAvailabilityPriceOrder
MC18A-00-KIT-1PK MC 18, Standard model, 1-pack, 4in display, capacitive touch, 2D imager, 2,725 mAh Lithium-ion battery, 512MB RAM, 802.11a/b/g/n, Windows CE7Pro, Pocket Browser, 1 YEAR warranty Ships Today $961.39
Retail $1400
Save 31%
MC18A-00-KIT-10-PK MC 18, Standard model, 10-pack, 4in display, capacitive touch, 2D imager, 2,725 mAh Lithium-ion battery, 512MB RAM, 802.11a/b/g/n, Windows CE7Pro, Pocket Browser, 1 YEAR warranty Ships in 24-48 Hours $9,322.02
Retail $13575
Save 31%
MC18G-00-KIT-1PK MC 18, Standard model, 1-pack, 4in display, capacitive touch, 2D imager, 2,725 mAh Lithium-ion battery, 1GB RAM, 802.11a/b/g/n, Windows CE7Pro, Pocket Browser, 1 YEAR warranty Ships in 24-48 Hours $995.72
Retail $1450
Save 31%
MC18G-00-KIT-10-PK MC 18, Standard model, 10-pack, 4in display, capacitive touch, 2D imager, 2,725 mAh Lithium-ion battery, 1GB RAM, 802.11a/b/g/n, Windows CE7Pro, Pocket Browser, 1 YEAR warranty Ships in 24-48 Hours $9,658.51
Retail $14065
Save 31%

Motorola MC18 Details

COMMUNICATIONS

WPAN (Bluetooth Support)
Bluetooth 4.0 (Bluetooth SMART technology), Bluetooth Class 1.5, v2.1 + EDR

Security
Wi-Fi Security Certification: Legacy, WPA and WPA2

Authentication: None, EAP-TTLS (CHAP, MSCHAP, MSCHAPv2, PAP, MD5), EAP-TLS, PEAP (TLS, , MSCHAPv2, GTC), LEAP, EAP-FAST (TLS, MSCHAPv2, GTC)

Encryption: WEP (40 or 104 bit), TKIP and AES

WLAN radio type
Wi-Fi IEEE® 802.11a/b/g/n

PERFORMANCE CHARACTERISTICS

Interfaces
USB 2.0 Client for Microsoft ActiveSync for service and maintenance

Operating system (OS)
Microsoft Windows Embedded Compact 7.0, Microsoft Internet Explorer Embedded 7

Light source
Orange LED Illumination with LED dot aim pattern

Ambient light
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor; LED: 450 Ft. Candles (4, 844 Lux); Sunlight: 8, 000 Ft. Candles (86, 111 Lux)

Processor (CPU)
TI OMAP4430, Dual Core, 800MHz

Memory
512MB RAM / 2 GB Flash
or
1 GB RAM / 4 GB Flash

Scan rate
Imaging rate: 30 Frames per second, 1280p x 800p

PHYSICAL CHARACTERISTICS

Dimensions (HxWxD)
2.95 in. H x 8.58 in. x 3.09 in. W (7.50 cm H x 21.80 cm L x 7.86 cm W)

Display type
Color LCD; 4.0 inch 480x800 WVGA resolution, 16 bits/pixel RGB, LED backlight, Capacitive touch screen, Corning Gorilla Glass 3

Weight
10.6 oz / 300 g (with battery)

Keypad options
1 dedicated trigger key

POWER

Battery
PowerPrecision+ 2725 mAh Li-ion rechargeable battery

REGULATORY SPECIFICATION

RF exposure
USA: FCC Part 2 (2.1093), FCC OET Bulletin 65 Supplement C
Canada: RSS-102;
EU: EN 62311, EN 50566, EN 62479
AU: ACA Radiocommunications (Electromagnetic Radiation – Human Exposure) Standard 2003

WLAN and Bluetooth (PAN)
USA: FCC Sub-Part C and E
Canada: RSS-210 Annex 8 and 9
EU: EN 300 328, EN 301 893
AU: AS/NZS 4268

Environmental
ROHS compliant — 2011/65/EEC, WEEE – 2002/96/EC

EMI/RFI
North America: FCC Part 15 Subpart B Class B
Canada: ICES 003 Class B
EU: EN55022 Class B, EN 301 489-1, EN 301 489-17,
EN61000-4-3/-3-2/-3-3, EN55024

Electrical safety
Certified to UL / cUL 60950-1, IEC 62471:2006/EN62471:2008 (LED Safety Report), EN/IEC60950-1

USER ENVIRONMENT

Operating temperature
32° to 104° F/0° to 40° C

Humidity
40°C (RH 10% - 95%) non-condensing

Tumble specifications
1, 000 0.5 m/ 1.64 ft. tumbles at room temperature

Storage temperature
4° to 140° F/-20° to 60° C

Drop specification
Withstands multiple 4 ft./1.2 m drops to vinyl tile over concrete
