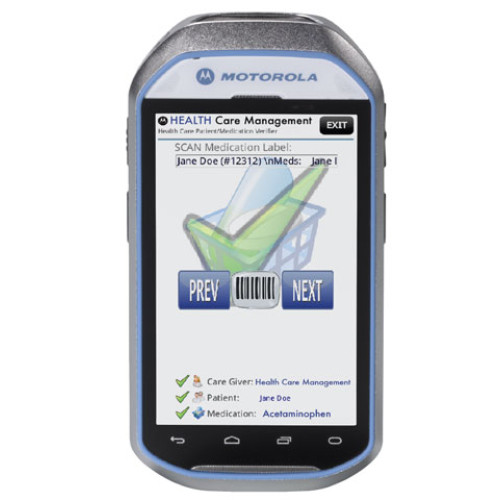

Motorola MC40-HC Mobile Computer

Motorola MC40-HC Mobile Computer

Your health care staff wants the latest in mobile technology, and a device that is as fun and easy to use as their own smartphone. Your health care organization requires an enterprise-class feature set, from data capture and security to manageability and dependably robust wireless connections. Get it all with the MC40-HC: Android, the most popular mobile operating system in the world, world-class enterprise data capture capabilities, and Extensions from Motorola Solutions, which adds enterprise-required features that are missing from standard Android. The MC40-HC - empowering your health care staff to deliver the best possible patient care.
Discontinued - Need Assistance
See all options
  • Disinfectant-ready with enterprise-class durability
  • A large 4.3 inch touch-only display
  • Android 4.1.1 OS fortified for the enterprise
  • 800 MHz OMAP4 Dual-Core Processor
  • Wi-Fi, Bluetooth and USB connectivity
  • Rear-facing 8 megapixel auto-focus with aiming for barcode scanning and image capture
  • IP54 rated

Communications

Network connections
USB 2.0 OTG connector

Security
Security Modes: Legacy, WPA and WPA2
Encryption: WEP (40 and 128 bit), TKIP and AES
Authentication: TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (PAP), PEAP (MS-CHAP v2), PEAP (GTC), FAST (MS-CHAP v2), FAST (GTC), LEAP, CCX V4, EAP Fast Fix, Export Encryption, Mx 3.5

Voice
PTT (client included), VoIP-ready models (VoIP client not included), high-quality speakerphone; wireless (Bluetooth) headset support; PTT headset support; handset/speakerphone modes

WLAN
Radio: Tri-mode IEEE® 802.11a/b/g/n/r

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Network connections
Micro USB 2.0 OTG connector

Performance Characteristics

Operating system (OS)
Android 4.1.1

Technology
Interactive Sensor Technology (IST)
Motion Sensor: 3-axis accelerometer provides motion-sensing for dynamic screen orientation and power management
Light Sensor: Automatically adjusts display backlight brightness
Proximity Sensor: Prevents unwanted key presses in handset mode

Data capture options
Rear-facing 8 MP auto-focus with aiming for barcode scanning and image capture

Memory
1GB RAM / 8GB Flash

Processor (CPU)
800 MHz OMAP4 Dual-Core Processor

Physical Characteristics

Disinfectant-ready
Yes

Keypad options
On-screen keypad

Dimensions (HxWxD)
5.66 in. H x 2.87 in. W x 0.79 in. D (143.9 mm H x 72.8 mm W x 20.1 mm D)

Weight
9.38 oz./266.1 g (with battery)

Display type
4.3” capacitive

Display resolution
480x800; 300 NIT

Touch panel
Capacitive dual-touch

Notification
Vibrator, LED, Audio notifications

Audio options
Microphone, Stereo audio through Bluetooth stereo headsets, Headset connector (mono, 2.5 mm jack with microphone), Speakers

LED backlight
Yes

Power

Battery
Rechargeable Lithium Ion 3.7V, 2680 mAh Smart battery

Backup battery
Rechargeable Ni-MH battery, 15 mAh, 3.6 V nominal (not user-accessible or replaceable)

Regulatory Specifications

WLAN
EN 300 328, EN 301 893, FCC Part 15.247, 15.407, RSS-210

Laser safety1
EN 60825-1, IEC 60825-1, 21CFR1040.10, IEC/EN 62471

EMI/RFI
EN 301 489-1, 17, EN 55022 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, IEC/EN 60601-1-2, 47 CFR Part 15, Subpart B, Class B, ICES 003 Issue 5, Class B

Electrical safety
UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1-07

Environmental
RoHS Directive 2002/95/EEC

RF exposure
EN 50360, EN 62479, EN 62311, FCC 47CFR Part 2; OET Bulletin 65c, RSS 102 Issue 4

User Environment

Tumble specifications
250 1.6 ft./0.5 meter tumbles (500 drops) at room temperature; per applicable IEC tumble specifications

Operating temperature
0° C to 50° C / 32° F to 122° F

Storage temperature
-40° C to 70° C / -40° F to 158° F

Drop specification
Multiple 4 ft. / 1.2m drops per MIL STD 810G; multiple 3 ft./ 0.9m drops to tile

Environmental sealing
IP54

Humidity
5% to 85% RH non-condensing

Electrostatic discharge (ESD)
± 15kVdc air discharge, ± 8kVdc direct discharge , ± 2kVdc indirect discharge

Wireless Security

Wi-Fi security certification
Legacy, WPA and WPA2

Encryption
WEP (40 and 128 bit), TKIP and AES

Authentication
TL S, TTL S (MS-CHAP), TTL S (MSCHAP v2), TTL S (PAP), PE AP (MS-CHAP v2), PE AP (GTC), FAST MS-CHAP v2), FAST (GTC), LE AP, . CCX V4, EAP Fast Fix, Export Encryption, Mx 3.5

Extended Details
Refine Your Options
  1. Motorola MC40-HC Mobile Computer
    Part #: MC40N0-HCJ3R00 | SKU: MOT241559

    MC40-HC, Wi-Fi (802.11a/b/g/n), Health care Version, 2D Imager Scanner, Android 4.1, 1GB RAM/8GB Flash, VGA Display, Standard Battery. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord Cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  2. Motorola MC40-HC Mobile Computer
    Part #: MC40N0-HCJ3R01 | SKU: MOT241560

    MC40-HC, Wi-Fi (802.11a/b/g/n), VGA Display, 2D Imager, Camera, Android 4.X Gingerbread, 1/8GB, Standard 2680MAH battery. Telephony Ready. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord Cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  3. Motorola MC40-HC Mobile Computer
    Part #: MC40N0-HLK3R01 | SKU: MOT385712

    MC40-HC, Health care BLUE, WLAN, ANDROID KITKAT, PTT/VOIP TELEPHONY READY, SE4710 2D IMAGER. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  4. Motorola MC40-HC Mobile Computer
    Part #: MC40N0-HCG3R00 | SKU: MOT222883

    MC40-HC, Health care housing. 2D Imager, Disinfectant-Ready Housing, WiFi(802.11 a/b/g/n), Camera, VGA Display, Android 2.3, 1GB RAM/8GB Flash, Standard Battery. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).
  5. Motorola MC40-HC Mobile Computer
    Part #: MC40N0-HCJ3R01F | SKU: MOT300053

    MC40-HC, 2D Imager, Disinfectant-Ready Health-Care Housing, Android Jelly Bean, WiFi (802.11 a/b/g/n), Push-to-talk, VOIP, Telephone Ready, FiPS Approved. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).
