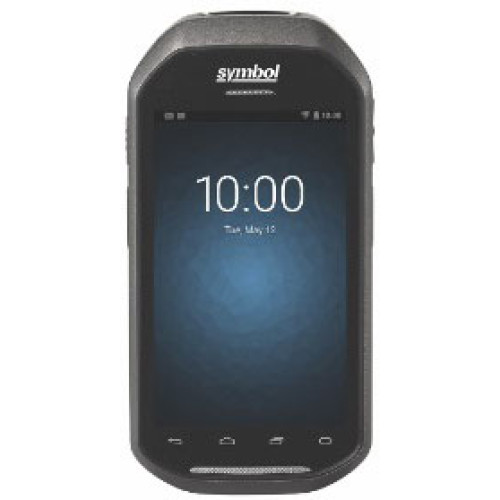

Motorola MC40 Mobile Computer

Motorola MC40 Mobile Computer

With this sleek customizable device, your associates have everything they need to serve your customers right at their fingertips. They can scan an item bar code to look up price, inventory availability or item location. Associates can also ring up the sale, look up product information or a gift registry, present a comparison of multiple products, call others in the store for help with a question, and even complete a loyalty card application anywhere in your store, without ever leaving the customer. Technology with an impressive look that can be customized in almost limitless ways becomes an extension of your brand, plus customers can readily identify your associates on the sales floor.
Discontinued - Need Assistance
See all options

Communications

Voice
PTT (client included), VoIP-ready models (VoIP client not included), high-quality speakerphone; wireless (Bluetooth) headset support; PTT headset support; handset/speakerphone modes

WLAN
Radio: Tri-mode IEEE® 802.11a/b/g/n/r

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Network connections
Micro USB 2.0 OTG connector

Performance Characteristics

Operating system (OS)
Android 4.1.1

Technology
Interactive Sensor Technology (IST)
Motion Sensor: 3-axis accelerometer provides motion-sensing for dynamic screen orientation and power management
Light Sensor: Automatically adjusts display backlight brightness
Proximity Sensor: Prevents unwanted key presses in handset mode

Data capture options
Imager: SE4500-DL
Camera: Rear-facing 8 MP auto-focus with aiming
Payment Transactions: Integrated Magnetic Stripe Reader (MSR) with encrypted head (optional)

Memory (Flash/RAM)
1GB RAM / 8GB Flash
Processor (CPU)
800 MHz OMAP4 Dual-Core Processor

Physical Characteristics

Dimensions (HxWxD)
With Magnetic Stripe Reader (MSR): 5.66 in. H x 2.87 in. W x 1.25 in. D (143.9 mm H x 72.8 mm W x 31.8 mm D)

Without Magnetic Stripe Reader: 5.66 in. H x 2.87 in. W x 0.79 in. D (143.9 mm H x 72.8 mm W x 20.1 mm D)

Weight
With battery and MSR: 9.38 oz./266.1 g
With battery, without MSR: 9.09 oz. / 257.7 g

Display type
4.3” capacitive

Display resolution
480x800; 300 NIT

Touch panel
Capacitive dual-touch

Notification
Vibrator, LED, Audio notifications

Audio options
Microphone, Speaker, Headset jack, Stereo audio through Bluetooth stereo headsets

LED backlight
Yes

Power

Battery
Rechargeable Lithium Ion 3.7V, 2680 mAh Smart battery
Backup battery
Rechargeable Ni-MH battery, 15 mAh, 3.6 V nominal (not user-accessible or replaceable)

Regulatory Specifications

WLAN
EN 300 328, EN 301 893, FCC Part 15.247, 15.407, RSS-210

Laser safety
EN 60825-1, IEC 60825-1, 21CFR1040.10, IEC/EN 62471

EMI/RFI
EN 301 489-1, 17, EN 55022 (Class B), EN 55024, EN 61000-3-2, EN 61000-3-3, IEC/EN 60601-1-2, 47 CFR Part 15, Subpart B, Class B, ICES 003 Issue 5, Class B

Electrical safety
UL 60950-1, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1-07

Environmental
RoHS Directive 2002/95/EEC

RF exposure
EN 50360, EN 62479, EN 62311, FCC 47CFR Part 2; OET Bulletin 65c, RSS 102 Issue 4

User Environment

Operating temperature
0° C to 50° C / 32° F to 122° F

Storage temperature
-40° C to 70° C / -40° F to 158° F

Drop specification
Multiple 4 ft. / 1.2m drops per MIL STD 810G; multiple 3 ft./ 0.9m drops to tile

Environmental sealing
IP54

Humidity
5% to 85% RH non-condensing

Electrostatic discharge (ESD)
± 15kV Air, ± 8kV contact, ± 2kV charge body

Extended Details
  1. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCJ3R01 | SKU: MOT228823

    MC40, Wi-Fi (802.11a/b/g/n), 2D Imager Scanner, Android 4.1 Jelly Bean, Telephone Ready, Push-to-Talk, Camera, VGA Display, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord Cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  2. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCJ3RM1 | SKU: MOT228825

    MC40, Wi-Fi (802.11a/b/g/n), 2D Imager Scanner, Android 4.1 Jelly Bean, 1GB RAM/8GB Flash, Magnetic Stripe Reader, Telephone Ready, Push-to-Talk, Camera, VGA Display, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord Cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  3. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCJ3RM0 | SKU: MOT228824

    MC40, Wi-Fi (802.11a/b/g/n), 2D Imager, Camera, Magnetic Stripe Reader, Push-to-Talk, Android 4.1 Jelly Bean, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord Cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  4. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCJ3R00 | SKU: MOT228822

    MC40, Wi-Fi (802.11a/b/g/n), 2D Imager, Camera, Push-to-Talk, VGA Display, Android 4.1 Jelly Bean, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord cable Cable-DC-388A1-01 and AC line cord (Part# 23844-00-00R).
  5. Motorola MC40 Mobile Computer
    Part #: MC40N0-SLK3R01 | SKU: MOT385713

    MC40, STD SILVER, WLAN, ANDROID KITKAT, PTT/VOIP TELEPHONY READY, SE4710 2D IMAGER. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord Cable Cable-DC-388A1-01 and AC line cord (Part# 23844‐00‐00R).
  6. Motorola MC40 Mobile Computer
    Part #: MC40N0-SLK3RM1 | SKU: MOT385714

    MC40, STD SILVER, WLAN, ANDROID KITKAT, PTT/VOIP TELEPHONY READY, SE4710 2D IMAGER, AND INTEGRATED MSR. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).
  7. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCG3R00 | SKU: MOT208293

    MC40, Wi-Fi (802.11 a/b/g/n), 2D Imager, Camera, Full VGA Display, Android 2.3 Gingerbread, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).
  8. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCG3RM0 | SKU: MOT209751

    MC40, 2D Imager, WiFi(802.11 a/b/g/n), Camera, Magenetic Stripe Reader, VGA Display, Android 2.3, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).
  9. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCG3RM1 | SKU: MOT223395

    MC40, 2D Imager, WiFi(802.11 a/b/g/n), Telephone Ready, Push-to-Talk, Camera, Magnetic Stripe Reader, VGA Display, Android 2.3, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).
  10. Motorola MC40 Mobile Computer
    Part #: MC40N0-SCG3R01 | SKU: MOT236411

    MC40, 2D Imager, WiFi(802.11 a/b/g/n), Camera, Telephone Ready, VGA Display, Android 2.3 Gingerbread, 1GB RAM/8GB Flash, Standard Battery, Color: Silver. Interface cables and charging cradle sold separately. Single slot charging cradle (Part# CRDMC40XX-1000R) requires power supply (Part# PWRWUA5V6W0WW) and USB communication cable (Part# 25-MCXUSB-01R). Five slot charging cradle (Part# CRDUNIV-40-5000R) requires power supply (Part# PWR-BGA12V50W0WW), DC line cord (Part# CBL-DC-388A1-01) and AC line cord (Part# 23844‐00‐00R).

10 Item(s)
