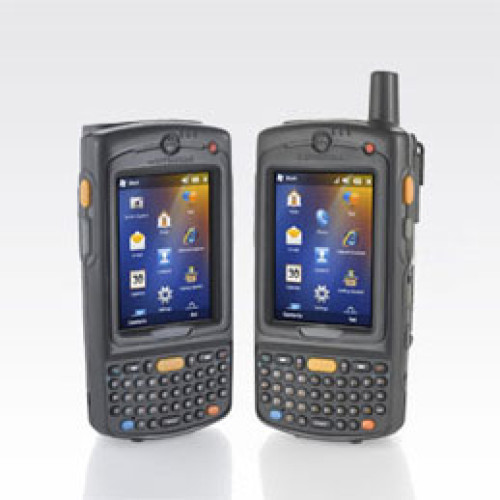

Photo of Motorola MC 75A
Motorola logo

Motorola MC 75A Hand Held Computer

The Motorola MC 75A has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The 3.5G Motorola MC 75A, one of the world's premium EDAs, offers more features and functionality, in a field-proven rugged form factor, than any other device in its class. The turbocharged MC75A addresses business critical mobility needs by maximizing processing power, rugged design, application flexibility, data capture capabilities, connectivity options, security and manageability - all in one device. Two options (3.5G WWAN/WLAN and WLAN only) enable enterprises to standardize on a single EDA to support workers inside and outside the four walls. Add a field-proven ergonomic design that is easy-to-carry and easy to use, and you have maximum value in a minimum footprint, all at the right price.
Questions?
1-888-875-7170
We respond to every email
MC 75A Options
Part # DescriptionAvailabilityPriceOrder
MC75A8-PYFSWRRA9WR MC 75A, Handheld Terminal - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Numeric Keyboard - Bluetooth See Replacement Call for Details
MC75A8-PYFSWQRA9WR MC 75A, Handheld Terminal - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Bluetooth See Replacement Call for Details
MC75A8-PUFSWRRA9WR MC 75A, Handheld Terminal - Intel Xscale 806 MHz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Numeric Keyboard - Infrared See Replacement Call for Details
MC75A8-PUFSWQRA9WR MC 75A, GPS, 3G WWAN EVDO REVA CDMA VERIZON, WLAN 802.11 A/B/G, 1D LASER, 256MB/1GB, QWERTY KEY PAD, WM 6.5, 1.5X BATTERY, BLUETOOTH See Replacement Call for Details
MC75A8-P4FSWRRA9WR MC 75A, Handheld Terminal - Marvell Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" QVGA LCD - Numeric Keyboard - Infrared, Bluetooth See Replacement Call for Details
MC75A8-P4FSWQRA9WR MC 75A, (Wan Evdo (Verizon), Wi-Fi, Bluetooth, GPS, 2D Scanner, Camera, Windows Mobile 6.5, 256mb/1GB, Qwerty Keypad, and 1.5x Battery. Cables and Charging Cradle Not Included.) See Replacement Call for Details
MC75A8-P3FSWRRA9WR MC 75A, Handheld Terminal - Marvell Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" QVGA LCD - Numeric Keyboard - Infrared See Replacement Call for Details
MC75A8-P3FSWQRA9WR MC 75A, Handheld Terminal - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Infrared, Bluetooth See Replacement Call for Details
MC75A8-P1FSWQRA9WR MC75 3.5G EDA, MC75a8 Cdma-Verizon WM6.5 802.11 A/B/G 256/1GB Qwerty See Replacement Call for Details
MC75A6-PYCSWRRA9WR MC 75A, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.5, 3G WWAN HSDPA, 256MB RAM/1GB ROM, Numeric Keypad, Bluetooth, GPS, Camera. Interface cables and charging cradle sold separately. See Replacement Call for Details
MC75A6-PYCSWQRAAWR MC 75A, Term:Wlp,1d,Cam,256/1GB, Qt,WM6.5,2.5x See Replacement Call for Details
MC75A6-PYCSWQRA9WR MC 75A, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.5, 3G WWAN HSDPA, 256MB RAM/1GB ROM, QWERTY Keypad, Bluetooth, GPS, Camera. Interface cables and charging cradle sold separately. See Replacement Call for Details
MC75A6-P4CSWRRHF01 MC 75A, Term:Wlp,Bb,Cam,HF,256/1g,Num, WM6.5,2.5x See Replacement Call for Details
MC75A6-P4CSWRRAAWR MC 75A, TERM:WLP;BB;CAM;256/1GB;NUM;WM 6.5 2.5X See Replacement Call for Details
MC75A6-P4CSWRRA9WR MC 75A, Handheld Terminal - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Numeric Keyboard - Infrared, Bluetooth See Replacement Call for Details
MC75A6-P4CSWQRA9WR MC 75A, Mobile Computer - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Bluetooth See Replacement Call for Details
MC75A6-P4CSWDRA9WR MC 75A, Mobile Computer - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Bluetooth See Replacement Call for Details
MC75A6-P3CSWRRAAWR MC75 3.5G EDA, MC75 Term Wlp,Bb,256/1GB,Num WM6.5,2.5x See Replacement Call for Details
MC75A6-P3CSWRRA9WR MC 75A, Mobile Computer - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Numeric Keyboard - Bluetooth See Replacement Call for Details
MC75A6-P3CSWQRAAWR MC 75A, MC75 Wireless Enterprise Digital Assistant: GPS, 3G Wwan HSDPA, WLAN 802.11 A/B/G, 2D Imager, 256mb/1GB, Qwerty Keypad, Windows Mobile 6.5, 2.5x Battery, Bluetooth See Replacement Call for Details
MC75A6-P3CSWQRA9WR MC 75A, Mobile Computer - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Bluetooth See Replacement Call for Details
MC75A6-P1CSWQRA9WR MC75 3.5G EDA, WM6.5 Wlp 256/1GB Qt 1.5x Cam Bbdl See Replacement Call for Details
MC75A6-P0CSWQRA9WR MC 75A, Term:Wlp,Bbhd,Cam,256/1GB,Qt, WM6.5,1.5x See Replacement Call for Details
MC75A0-PY0SWRQA9WR MC 75A, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.5, Intel Xscale 806 MHz, 256MB/1GB, 3.5" VGA LCD, Numeric Keypad, Bluetooth, Infrared. Interface cables and charging cradle sold separately. See Replacement Call for Details
MC75A0-PY0SWRQA7WR MC 75A, Handheld Terminal - Intel Xscale 806 Mhz - 128 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Numeric Keyboard - Infrared, Bluetooth See Replacement Call for Details
MC75A0-PY0SWQQA9WR MC 75A, Mobile Computer - Intel Xscale 806 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Bluetooth See Replacement Call for Details
MC75A0-PU0SWRQA9WR MC 75A, MC75 Handheld Terminal - Intel Xscale 624 Mhz - 256 Mb RAM - 1 Gb Flash - 3.5" VGA LCD - Numeric Keyboard - Infrared, Bluetooth See Replacement Call for Details
MC75A0-PU0SWRQA7WR MC 75A, Wi-Fi (802.11a/b/g), 1D LASER, Windows Mobile 6.5, Intel Xscale 806 MHz, 256 Mb RAM, 1 Gb Flash, 3.5" VGA LCD, Numeric Keyboard, Bluetooth See Replacement Call for Details
MC75A0-PU0SWQQA7WR MC 75A, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.5, 256MB RAM/1GB ROM, QWERTY Keypad, Bluetooth. Interface cables and charging cradle sold separately. See Replacement Call for Details
MC75A0-P40SWQQA9WR MC 75A, Wi-Fi (802.11a/b/g), 1D Laser Scanner, Windows Mobile 6.5, Intel Xscale 806 MHz, 256MB RAM/1GB Flash, 3.5" VGA LCD, Bluetooth. Interface cables and charging cradle sold separately. See Replacement Call for Details

Page: 1 2 3 4 »

Accessories

Part # DescriptionAvailabilityPriceOrder
50-16000-182R AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
25-68596-01R MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
BTRY-MC7XEAB00 Spare Battery, for use with MC70/MC75, 1.5X extended-capacity, Lithium-ion, 3600 mAh Ships Free Today $55.51
Retail $80
Save 30%
BTRY-MC7XEAB00-10 MC70/75 3600 mAh Battery - 10pk Ships Free Today $370.00
Retail $565
Save 34%
25-63852-01R RS-232 Cable for cradle to the host system Ships Free Today $22.51
STYLUS-00002-03R Spring loaded stylus with teather for the MC70/MC75 series, (packet of 3). Ships Free Today $41.29
Retail $55
Save 24%
SG-MC7011110-02R Holster, Rigid (Hard Plastic), Includes Large Clip, Compatible with MC70 and MC75. Ships Free Today $24.22
Retail $25
MC7XFPR-01R Biometric Attachment - Fingerprint Only - For The MC70/MC75 Series (Attachment Only) Ships Free Today $350.85
Retail $600
Save 41%
25-63856-01R Modem Adapter Cable needed to connect the (Part# MDM9000-100R) (Modem Module) to the MC70, MC75, MC1000, MC3000 and MC9000 Single Slot Cradles. Allows single slot cradle to be used as a modem cradle Ships Free Today $21.38
BTRY-MC7XEAB0E MC70 1x Lithium-ion Battery, 1950 mAh Ships Free Today $45.84
Retail $63
Save 27%
SAC7X00-400CES Charger Kit (4-Slot, Battery Charger, ES) Ships Free Today $177.23
Retail $268
Save 33%
STYLUS-00004-03R Tethered Stylus For MC75a0-HC Pack of 3. Health care Blue Color Ships Free Today $41.29
Retail $55
Save 24%
BTRY-MC7XEAB0E-10 MC70/75 1900 mAh Battery - 10pk Ships Free Today $294.27
Retail $440
Save 33%
SAC7X00-4000CR 4-Slot Battery Charger for the MC70/MC75. Power supply (Part# KT-14000-148R) and AC Line Cord (Part# 23844 00-00R) sold separately. Ships Free Today $132.66
Retail $200
Save 33%
SWE-116045-01 Software License, MC70X4/95, OS Upgrade, Windows Mobile 5.0.0 Pro to Windows Mobile 6.1 Pro
Ships Free in 3-5 Days
$38.44
Retail $50
Save 23%
SG-MC7521215-01R MC75 Fabric Holster
Ships Free in 3-5 Days
$47.32
Retail $65
Save 27%
SAC7X00-401CES Energy Star 4-Slot Battery Charger for MC70, MC75 and MC3000. Charges spare standard and high capacity batteries. Includes Shim for MC70/MC75 and Power supply (PWRS-14000-148R). Must purchase 3 Wire AC line cord separately.
Ships Free in 3-5 Days
$169.36
Retail $258
Save 34%
PWR-BUA5V16W0WW Power supply: 100-240 VAC, 5.4 VDC, 3A. Barrel Jack. Requires DC cord (Part# Cable-DC-383A1-01) and AC Line cord. Ships Free Today $31.62
Retail $38
Save 16%
PWR-BGA12V108W0WW AC/DC Power supply (Brick). AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord. Ships Free Today $69.73
Retail $105
Save 33%
KT-105878-01R MC70/MC75 1.5x Battery Door and Strap. Extended battery sold separately (Part# BTRY-MC7XEAB00). Ships Free Today Call for Details
KT-105879-01R 2.5x Battery Door and Strap For The MC70/MC75 Series. Ships Free Today Call for Details
25-102776-02R MC70/MC75 RS-232 Charging Cable.
Ships Free in 3-5 Days
Call for Details

Motorola MC 75A Details

Communications

Network connections
Ethernet (via cradle), Full-speed USB, host (USB1.1) or client (USB 2.0)

GPS
Integrated autonomous and assisted GPS (A-GPS) thru SUPL

Operating channels
Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan Only, Chan 8-169 (4920-4980 MHz) Japan Only, Chan 8-165 (5040-5825 MHz), Actual operating channels/frequencies depend on regulatory rules and certification agency

Voice
Integrated voice-over-IP ready (P2P, PBX, PTT), Wi-Fi certified, IEEE 802.11a/b/g direct sequence wireless LAN

WLAN
802.11a/b/g tri-mode radio

Antenna
Internal for LAN, External for WAN

Individual data rates supported
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

Security
WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCX v4 Certified, FIPS 140-2 certified

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Performance characteristics

Data capture options
1-D/2-D barcode scanning plus 3.2 megapixel auto-focus flash enabled color digital camera

Operating system (OS)
Microsoft Windows Mobile 6.5 Classic Edition, Microsoft Windows Mobile 6.5 Professional

Memory
256MB RAM/1GB Flash

Processor (CPU)
PXA320 @ 806 MHz

Physical characteristics

Audio options
VOWWAN, VOWLAN, Speakerphone, Handset mode

Dimensions (HxWxD)
WLAN: 6in. L x 3.3in. W x 1.7in.D (15.24cm L x 8.4cm W x 4.4cm D)
WWAN: 7in. L x 3.3in. W x 1.7in.D (17.78cm L x 8.4cm W x 4.4cm D)

Display type
3.5 inch color high definition VGA display (640 x 480)

Notification
Vibrator, LED

Rugged
Yes

Headset
Bluetooth headset, Wired headset

Display resolution
Transflective Color 3.5 full VGA with backlight, 640x480

Keyboard
Numeric, QWERTY, AZERTY, QWERTZ, DSD

Weight
WWAN: Standard 1.5x battery: 14.9ozs/423g
WLAN: Standard 1.5x battery: 14ozs./398g

Power

Battery
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery

Extended capacity battery
Rechargeable Lithium Ion 3.7V, 4800 mAh Smart Battery

Regulatory specifications

Hazardous location certifications
UL Class I, II, III Division II, A, B, C, D, F, G (Select Configurations Only)

Environmental
RoHS-compliant

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65, Supplement C
Canada: RSS-102
EU: EN 50380
Australia: Radio Communications Standard 2003

Electrical safety
EN 60950-1, IEC 60950-1, Certified to UL / cUL 60950-1

Laser safety1
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

EMI/RFI
North America: FCC Part 15, Class B
Canada: ICES 003 Class B
EU: EN55022 Class B, EN301 489-1, EN301 489-3, EN301 489-7, EN301 489-17, EN301 489-24, EN60601-1-2
Australia: AS/NZS CISPRA 2.2

User environment

Ambient lighting tolerance2
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)

Drop specification
Multiple 6 ft. / 1.8M drops per MIL STD 810G specifications

Electrostatic discharge (ESD
+/- 15KV air discharge; +/- 8KV direct discharge

Humidity
95% non-condensing

Storage temperature
-40° F to 158° F/-40° C to 70° C (w/o battery)

SAP certification3
See footnote.

Tumble specifications
1, 000 1.6 ft./.5 m tumbles (2, 000 drops); per applicable IEC Specifications

Environmental sealing
IP54

Operating temperature
14° F to 122° F/-10° C to 50° C
