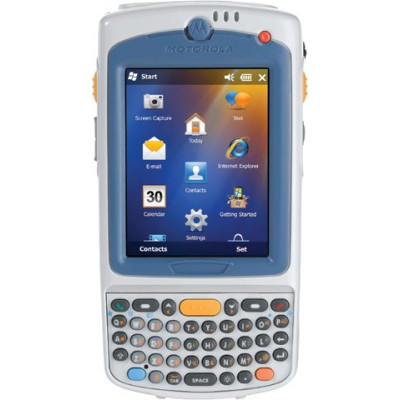

Photo of Motorola MC 75A0 HC
Motorola logo

Motorola MC 75A0 HC Hand Held Computer

The Motorola MC 75A0 HC has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Motorola MC 75A0 HC takes health care quality and patient safety to the next level. The MC 75A0 HC offers Motorola's most advanced scanning technology to capture even damaged and poorly printed 1D and 2D bar codes. Robust wireless application performance and wireless connectivity options allow health care givers to access patient records, accurately administer medication, monitor patient vital signs and more - all in just seconds, anywhere inside the facility. Government grade FIPS 140-2 security easily meets stringent HIPAA privacy regulations. Add a proven easy-to-carry and easy-to-use ergonomic design, and the MC 75A0 HC gives maximum value in a minimum footprint - all at the right price.
MC 75A0 HC Options
Part # DescriptionAvailabilityPriceOrder
MCF-MC75A0-HC-FIPS MC 75A0 HC, Carfusn75ahcdltaa, Battery, Drkt, Crd USB, Ps, Lc Carefusion Only!! Check Availability Call for Details
MC75A0-H80SWQQAAWR C MC 75A0 HC, MC75 HC 2D DL 256/1GB QWERTY Windows Mobile 6.5 2.5X CERNER CONFIG Check Availability Call for Details
MC75A0-H80SWQQAAWR This part is replaced by MC55A0-H80SWRQA9WR.
MC 75A0 HC, Term: Hc, BBDL, 256/1GB Qt, Windows Mobile 6.5,2.5x
See Replacement Call for Details
MC75A0-H80SWQQA9WR-KIT This part is replaced by MC75A0-P10SWQQA9WR-KIT.
MC 75A0 HC, Starter Kit Bundle That Includes The PDT (Health care-Friendly Colors. Has Dl Variant of Blockbuster Imager But No Camera, 802.11a/b/g, Bluetooth, 256/1g Memory, QWERTY Keyboard, Windows Mobile 6.5 English Os, and 1.5x Battery.) and All Starter Accessories
Ships Today Call for Details
MC75A0-H80SWQQA9WR This part is replaced by MC55A0-H80SWRQA9WR.
MC 75A0 HC, Health care-Friendly Colors. Has Dl Variant of Blockbuster Imager But No Camera, 802.11a/b/g, Bluetooth, 256/1g Memory, QWERTY Keyboard, Windows Mobile 6.5 English Os, and 1.5x Battery.
See Replacement Call for Details
MC75A0-H80SWQQA0GR MC 75A0 HC, MC75a0 Term Hc/Lp/Bbdl/256 1g/Qt/Windows Mobile 6.5/Taa Check Availability Call for Details
MC75A0-H40SWQQA9WR-KIT MC75A0 HC, Includes Everything You Need Including MC75a0-HC Mobile Computer With Scanner, Health care-Friendly Colors. Has 2D Blockbuster Imager Plus Camera, 802.11a/b/g, Bluetooth, 256/1g Memory, QWERTY Keyboard, Windows Mobile 6.5 English Os, 1.5x Battery, Cradle, USB Cable, Power supply, and Line Cord. Ships Today Call for Details
MC75A0-H40SWQQA9WR MC 75A0 HC, MC75a0 HC Windows Mobile 6.5 LAN 256/1GB QWERTY 1.5x Check Availability Call for Details
MC75A0-H10SWRQA9WR This part is replaced by MC55A0-H70SWRQA9WR.
MC 75A0 HC, MC75a0 HC Windows Mobile 6.1 256/1GB Numeric 1.5x Camera
See Replacement Call for Details
MC75A0-H10SWQQA9WR-KIT This part is replaced by MC55A0-H70SWQQA9WR-KIT.
MC 75A0 HC, Starter Kit Bundle That Includes The PDT (Health care-Friendly Colors. Has Dl Variant of Blockbuster Imager Plus Camera, 802.11a/b/g, Bluetooth, 256/1g Memory, QWERTY Keyboard, Windows Mobile 6.5 English Os, and 1.5x Battery.) and All Starter Accessories
Ships Today Call for Details
MC75A0-H10SWQQA9WR This part is replaced by MC55A0-H70SWQQA9WR.
MC 75A0 HC, MC75a0 Hc, Imager, Windows Mobile 6.5, Camera Bluetooth, 256/1g, QWERTY, 802.11a/B/G
See Replacement Call for Details
MC75A0-H10SWQQA0GR-KIT MC 75A0 HC, Starter Kit Bundle That Includes The PDT (MC75 Wireless Enterprise Digital Assistant Terminal: Hc, Lp, BBDL, Camera, 256/1g, Qt, Windows Mobile 6.5, TAA) and All Starter Accessories Ships Today Call for Details
MC75A0-H10SWQQA0GR MC 75A0 HC, MC75a0 HC Windows Mobile 6.5 Wl Bluetooth 1D/2D 256/1GB QWERTY Bbdl TAA compliant - Battery and Door not included. Order (Part# BTRY-KT-1R5X-MC7XR) for battery and door kit. Check Availability Call for Details

Motorola MC 75A0 HC Details

Communications

WLAN
802.11a/b/g tri-mode radio

Voice
Integrated voice-over-IP ready (P2P, PBX, PTT), , IEEE 802.11a/b/g direct sequence wireless LAN

Operating channels
Chan 1-13 (2412-2472 MHz), Chan 14 (2484 MHz) Japan Only, Chan 8-169 (4920-4980 MHz) Japan Only, Chan 8-165 (5040-5825 MHz), Actual operating channels/frequencies depend on regulatory rules and certification agency

Antenna
Internal for LAN

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Security
WPA2, WEP (40 or 128 bit), TKIP, TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLS-MD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, LEAP, CCX v4 Certified, FIPS 140-2 certified

Individual data rates supported
1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54 Mbps

Network connections
Ethernet (via cradle), Full-speed USB, host or client

Performance characteristics

Operating system (OS)
Microsoft Windows Mobile 6.5 Professional

Memory
256MB RAM/1GB Flash

Processor (CPU)
PXA320 @ 806 MHz

Data capture options
1-D/2-D barcode scanning plus 3.2 megapixel auto-focus flash enabled color digital camera

Physical characteristics

Disinfectant-ready
Yes

Expansion slot
Micro SD card slot (supports up to 32GB)

Weight
WLAN: Standard 1.5x battery: 14ozs./398g

Keyboard
Includes QWERTY – Numeric, QWERTZ and AZERTY keypads will be available through custom product requests

Display resolution
Transflective Color 3.5 full VGA with backlight, 640x480

Audio options
Speaker, VOWLAN, TEAM Express compliant, Handset mode

Zebra Interactive Sensor Technology (ISTT)
Dynamic screen orientation & free-fall detects

Rugged
Yes

Notification
Vibrator, LED

Display type
PenTile® 3.5 in. color VGA (640x480) super bright 650+ NITS (luminous)

Dimensions (HxWxD)
WLAN: 6in. L x 3.3in. W x 1.7in.D (15.24cm L x 8.4cm W x 4.4cm D)

Headset
Bluetooth headset, Wired headset

Power

Extended capacity battery
Rechargeable Lithium Ion 3.7V, 4800 mAh Smart Battery

Battery
Rechargeable Lithium Ion 3.7V, 3600 mAh Smart Battery

Regulatory specifications

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65, Supplement C
Canada: RSS-102
EU: EN 50380
Australia: Radio Communications Standard 2003

Environmental
RoHS-compliant

EMI/RFI
North America: FCC Part 15, Class BCanada: ICES 003 Class BEU: EN55022 Class B, EN301 489-1, EN301 489-3, EN301 489-7, EN301 489-17, EN301 489-24, EN60601-1-2Australia: AS/NZS CISPRA 2.2

Laser safety1
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

Electrical safety
EN 60950-1, IEC 60950-1, Certified to UL / cUL 60950-1

User environment

Cleanability
Can be disinfected by following the instructions on the product specifications sheet

Operating temperature
14° F to 122° F/-10° C to 50° C

Environmental sealing
IP54

Tumble specifications
1, 000 1.6 ft./.5 m tumbles (2, 000 drops); per applicable IEC Specifications

Storage temperature
-40° F to 158° F/-40° C to 70° C (w/o battery)

Humidity
95% non-condensing

Electrostatic discharge (ESD)
+/- 15KV air discharge; +/- 8KV direct discharge

Drop specification
Multiple 6 ft. / 1.8M drops per MIL STD 810G specifications
