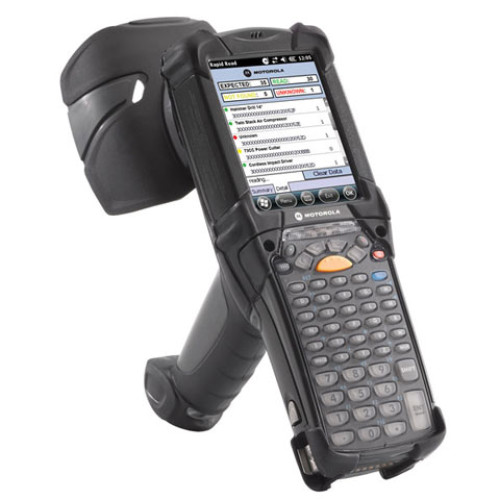

Photo of Motorola MC9190-Z
Motorola logo

Motorola MC9190-Z RFID Reader

The MC9190-Z is a high-performance, highly rugged RFID handheld reader targeted for use in very demanding applications and environments. Designed for medium- to long-range RFID read applications, the MC9190-Z delivers best-in-class RFID read range and accuracy in an ergonomic, integrated RFID and bar code device. Its rugged form factor excels in virtually any environment, indoors or outdoors.
Questions?
1-888-875-7170
We respond to every email

Style ?

Frequency ?

Operating System ?

RAM Memory

Keypad

Item Condition

Scanner Type ?

Interface

MC9190-Z Options
Part # DescriptionAvailabilityPriceOrder
MC919Z-GA0SWEQZ1WR MC9190-Z, Wi-Fi (802.11a/b/g), RFID Reader, Handheld, 1D Laser Scanner, Color, 256MB/1GB, 53 key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based. Interface cables and charging cradle sold separately. Ships Free Today $3,164.40
MC919Z-GJ0SWEQZ1WR MC9190Z, Wi-Fi (802.11a/b/g), RFID Reader, Handheld, 1D Extended Range (LORAX) Laser Scanner, Color, 256MB/1GB, 53 key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based. Interface cables and charging cradle sold separately. Ships Free Today $3,596.40
MC919Z-G50SWEQZ1WR MC9190Z, Wi-Fi (802.11a/b/g), RFID Reader, Handheld, 2D Direct Part Marking (DPM) Imager Scanner, Color, 256MB/1GB, 53 key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based. Interface cables and charging cradle sold separately. Ships Free Today $3,596.40
MC919Z-G50SWEQZ2EU MC9190Z, RFID handheld, 802.11a/b/g, 2D Direct Part Marking, Color, 256MB/1GB, 53 key, Windows Mobile 6.5, Bluetooth, ETSI 302-208
Ships Free in 3-5 Days
$3,596.40
MC919Z-G30SWEQZ1WR MC9190Z, Wi-Fi (802.11a/b/g), RFID Reader, UHF, Handheld, 2D Imager Scanner, Color, 256MB/1GB, 53 Key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based, RoHS. Interface cables and charging cradle sold separately. Ships Free Today $3,164.40
MC919Z-G30SWEQZ2EU MC9190Z, Wi-Fi (802.11a/b/g), RFID Reader, Handheld, 2D Imager Scanner, Color, 256MB/1GB, 53 key Keypad, Windows Mobile 6.5, Bluetooth, US Frequency-based, ETSI 302-208. Interface cables and charging cradle sold separately.
Ships Free in 3-5 Days
$3,164.40
MC919Z-GJ0SWEQZ2EU MC9190Z, RFID handheld, 802.11a/b/g, Extended Range (Lorax), Color, 256MB/1GB, 53 key, Windows Mobile 6.5, Bluetooth, ETSI 302-208
Ships Free in 3-5 Days
$3,596.40
MC919Z-G30SWEQZ3CN MC9190-Z, 2D Imager, RFID Reader, 53 key Keypad, Windows Mobile 6.5, Bluetooth, CN Frequency
Ships Free in 3-5 Days
$3,164.40
MC919Z-GA0SWEQZ2EU MC9190Z, RFID Handheld, 802.11a/b/g, 1D Scanner, Color, 256MB/1GB, 53 key, Windows Mobile 6.5, Bluetooth, ETSI 302-208. EU Freq. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
23844-00-00R US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.69
CRD9101-411CES MC9100/MC9190 Cradle, 4-Slot Charge Only Cradle Kit: Includes cradle, power supply, and DC line cord. US AC line cord (Part# 23844-00-00R) sold separately. Ships Free Today $340.55
Retail $449
Save 24%
CRD9000-1001SR Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered. Ships Free Today $159.30
Retail $240
Save 33%
25-62170-02R Printer cable. Need to order the (Part# ADP9000-100) to connect printer cable. Compatible with MC9090/MC9097/MC9190-G. Ships Free Today $38.71
Retail $50
Save 22%
50-16000-182R AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies) Ships Free Today $12.84
25-63852-01R RS-232 Cable for cradle to the host system Ships Free Today $22.51
VCA9002-12R MC9000, Auto Charge Cable (Cig Lighter, 12 Volt) Ships Free Today $121.35
Retail $160
Save 24%
25-64396-01R USB Cable (A to B) for the cradle to the host system Ships Free Today $18.53
CRD9101-410EES 4-Slot Ethernet Cradle Kit: Includes cradle, power supply (PWRS-14000-241R), DC line cord (Part# 50-16002-029R) and US AC line cord (Part# 23844-00-00R). Ships Free Today $645.44
Retail $851
Save 24%
KT-68144-10R Spare Stylus for MC9000-G Only - 10 Pack Ships Free Today $29.91
Retail $35
Save 14%
50-16000-221R MC67 Accessories, AC Line Cord, 1.8 meter, 250V, US Ships Free Today $18.61
KYPD-MC9XMT000-01R MC909X G & -K 43 key Keypad Ships Free Today $127.84
Retail $195
Save 34%
25-72614-01R DC Line Cord for 4-Slot Battery Charger (Part# SAC9000-4000R), works with Power supply (Part# 50-14000-242R), for MC9090/MC9097/MC9190-G. Ships Free Today $12.99
KYPD-MC9XMR000-01R MC909X-G & -K 28 key Keypad Ships Free Today $129.78
Retail $195
Save 33%
SAC9000-4000R MC90XX 4-Slot battery charger. Charges 4 spare batteries. Must also order separately power supply (Part# PWRS-14000-242R), DC Cable (Part# 25-72614-01R), and AC Line Cord (Part# 23844-00-00R). If charging a spare MC90XX-S spare battery also order (Part# BAP9000-100R). Ships Free Today $205.41
50-16000-220R MC67 Accessories, Smb AC Power cord For Europe Ships Free Today $15.69
KT-68144-50R Spare Stylus for MC9000-G Only - 50 Pack Ships Free Today $111.98
Retail $165
Save 32%
KYPD-MC9XMW000-01R MC909X G & K 53-5250 key Keypad Ships Free Today $129.01
Retail $195
Save 33%
21-32665-48R Universal Battery Charger Adapter for MC90XX-G and MC90XX-K Only. For standalone charging purchase KT-32665-02R power supply kit. Purchase UBC Base UBC2000-I500DR to charge multiple adapters. Ships Free Today $80.03
Retail $120
Save 33%
KT-70147-01R MC9000 Belt Clip (Qty 1) Ships Free Today $18.53
PWRS-14000-242R Power, Supply (100-240 VAC, 15VDC, 5A) Ships Free Today $72.57
Retail $110
Save 34%
KT-81680-50R Stylus Gun version gray with tether gray, 50 Pack Ships Free Today $201.07
Retail $300
Save 32%
KYPD-MC9XMS000-01R MC909X-G & -K and MC9200 53 key Keypad Ships Free Today $129.78
Retail $195
Save 33%
25-62167-02R DEX Cable for Cable Adapter Module (ADP9000-100R must be ordered seperately) Ships Free Today $38.44
Retail $50
Save 23%
25-62166-01R Cable, Assembly (USB) Ships Free Today $38.44
Retail $50
Save 23%
25-63856-01R Modem Adapter Cable needed to connect the (Part# MDM9000-100R) (Modem Module) to the MC70, MC75, MC1000, MC3000 and MC9000 Single Slot Cradles. Allows single slot cradle to be used as a modem cradle Ships Free Today $21.38
CRD9101-4001ER 4-Slot Ethernet Cradle Only. Power supply (PWRS-14000-241R), DC line cord (Part# 50-16002-029R) and US AC line cord (Part# 23844-00-00R) sold separately. Ships Free Today $532.01
Retail $695
Save 23%
50-16000-219R MC67 Accessories, Cord: Pwr 18awg 10a 250v Uk Ships Free Today $18.61
50-16000-217R MC67 Accessories, AC Line Cord, 1.8m, Grounded, Three Wire, as 3112 Plug. Associated Country: Australia, China, New Guinea. For Power Supplies Kt-14000-148R and 50-14000-241r. Ships Free Today $15.74
25-62168-01R Paxar Printer Cable For Mc90Xx And Mc91Xx Adapter Module (Adp9000-100R Must Be Ordered Seperately) Ships Free Today $38.44
Retail $50
Save 23%
KT-61499-01R Cradle Bracket, Compatible with MC90XX and MC9190, Order One for Single Slot Cradle or Two for 4-Slot Cradles, - Use with Wall Mount Bracket (Part# KT-61498-01R). Ships Free Today $32.75
Retail $40
Save 18%
50-16000-218R MC67 Accessories, Cord: Pwr 18awg 10a 250v Japan Ships Free Today $15.74
25-62169-01R O'Neil Printer cable for MC9090/MC9097/MC9190-G. Need to order the (Part# ADP9000-100R) to connect printer cable. Ships Free Today $38.71
Retail $50
Save 22%
VCA9000-24R Auto charge cable for MC9000,24V, Requires ADP9000-100.
Ships Free in 3-5 Days
$102.31
Retail $160
Save 36%
PWR-BGA12V50W0WW Power Supply (100-240 Vac, 12VDC, 4.16a). Requires AC and DC Line cord. AC line cord (Part# 23844-00-00R) DC line cord varies based on cradle you are using. See Cradle Description for correct DC Line cord required. Ships Free Today $38.13
Retail $49
Save 22%
KYPD-MC9XMV000-01R MC909X G & K 53-3270 key Keypad
Ships Free in 3-5 Days
$127.75
Retail $195
Save 34%
KT-61498-01R Wall mounting bracket for MC9000/MC9050/MC9090/MC9097/MC9190. Order one for Single Slot cradle and one for the SAC9000. Order 2 for 4 Slot Cradles. Order Cradle Bracket separately to attach to the wall mount bracket.
Ships Free in 3-5 Days
$49.82
Retail $70
Save 28%
CBL-DC-382A1-01 DC line cord used with Mobile Computer's multi-slot cradles from a single LEVEL VI Power Supply PWR-BGA12V108W0WW.
Ships Free in 3-5 Days
$24.79
Retail $26
BTRY-MC9X-26MA-10 EVM, POWER PRECISION SPARE BATTERY FOR MC90XX-G, MC91XX-G, MC92XX & MC90XX-K ONLY, 2600 MAH, 10 PACK Ships Free Today $482.25
Retail $630
Save 23%
BTRY-MC9X-26MA-01 EVM, POWER PRECISION SPARE BATTERY FOR MC90XX-G, MC91XX-G, MC92XX & MC90XX-K ONLY, 2600 MAH Ships Free Today $68.25
Retail $90
Save 24%
50-16000-672R MC67 Accessories, AC Line Cord, 1.8m Grounded, Three Wire, S132 Plug. Associated Country: Israel.
Ships Free in 3-5 Days
$24.35
50-16000-671R MC67 Accessories, AC Line Cord, 1.8M grounded, CIE 23-16 plug. Associated Country: Italy. For power supplies KT-14000-148R and 50-14000-241R.
Ships Free in 3-5 Days
$18.53
50-16000-670R AC Line Cord/1.8m/Ungrnd/1363 Ber/Hk/Iraq/Mal/Singapore/Uk
Ships Free in 3-5 Days
$24.35
50-16000-669R MC67 Accessories, AC Lind Cord, 1.8 M Grounded, Three Wire, Bs 546 Plug. Associated Country: India. For Power Supplies Kt-14000-148R and 50-14000-241r.
Ships Free in 3-5 Days
$18.61
50-16000-666R AC Line Cord, 1.8m Ungrounded, Two Wire as 3112 Plug. Associated Country: Australia. For Power supply 50-14000-249r.
Ships Free in 3-5 Days
$15.74
50-16000-256R MC67 Accessories, Cord: Pwr S. Korea Cont Europe Cee7
Ships Free in 3-5 Days
$15.74
50-16000-255R MC67 Accessories, Universal Cable, Cord, Power, Euro Plug CEE7/16
Ships Free in 3-5 Days
$13.44
25-62164-01R Cable, RS-232 Cable For Cable Adapter Module (ADP9000-100r Must Be Ordered Seperately)
Ships Free in 3-5 Days
$38.71
Retail $50
Save 22%
PWR-BGA12V108W0WW AC/DC Power Supply (Brick). AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord. Ships Free Today $70.28
Retail $105
Save 33%
KT-81680-03R Stylus Gun version gray with tether gray, 3 Pack Ships Free Today Call for Details
ADP9000-100R MC90XX Cable Adapter. This adapter provides communication to the host or printer and can be used for AC charging. Order RS-232, USB, and printer cable separately. Does not include power supply.
Ships Free in 3-5 Days
Call for Details
Protect Your Product
Motorola Service Contract - 1 year (Z1BE-MC919Z-1000)
1 Year Zebra OneCare Service Center Essential. Does not include Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$182.36
+ Add to Quote
Motorola Service Contract - 2 year (Z1RE-MC919Z-2C00)
2 Year Zebra OneCare Essential Renewal. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$285.00
+ Add to Quote
Motorola Service Contract - 5 year (Z1AE-MC919Z-5C00)
5 Year Zebra OneCare Essential. Includes Comprehensive coverage. Does not include coverage for cradles.
Ships in 3-5 Days
$924.00
+ Add to Quote

Motorola MC9190-Z Details

Application Development

PSDK, DCP and SMDK available through Motorola Developer Zone Web site

Communications

WPAN (Bluetooth Support)
Bluetooth 2.1 with EDR

Antenna
Internal

Output power
100 mW international

Frequency range1
802.11a – 5.0 GHz, 802.11b - 2.4 GHz, 802.11g - 2.4 GHz

Data rate
802.11a: up to 54 Mbps, 802.11b: up to 11 Mbps, 802.11g: up to 54 Mbps

WLAN
IEEE 802.11a/b/g

Performance characteristics

Memory
256 MB/1 GB

Operating system (OS)
Microsoft Windows Mobile 6.5 Professional

Physical characteristics

Keyboard
28, 43 and 53-key options

Dimensions (HxWxD)
10.75 x 4.7 x 7.7 in
(27.3 x 11.9 x 19.5 cm)

Weight
34.35 oz / 2.147 lbs including battery
(973.8 g / .986 kg including battery)

RFID

RFID output power
EU: 2 Watt ERP; US: 3 Watt EIRP

Antenna
Integrated, linearly polarized

Nominal write range
up to 4 ft (1.22 m)

Standards supported
EPC Gen 2 DRM for output

Frequency range
EU: 865-868MHz; US: 902-928MHz

Field
70-degree cone (approx.) measured from nose of device

Nominal read range
up to 30 ft (9.14 m)

Regulatory specifications

Electrical safety
UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

User environment

Ambient lighting tolerance2
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Environmental sealing
IP64 (electronic enclosure, display, keypad)

Drop specification
Multiple drops to concrete: 6 ft./1.8 m across the operating temperature range

Storage temperature
-40° F to 158° F
(-40° C to 70° C)

Operating temperature
-4° F to 122° F
(-20° C to 50° C)

Electrostatic discharge (ESD)
+/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge

Tumble specifications
2, 000 one-meter tumbles at room temperature (4, 000 hits)

Humidity
5% to 95% non-condensing

Charging temperature
32° F to 104° F
(0° C to 40° C)

CPU
Marvell PXA320 processor at 806 MHz
