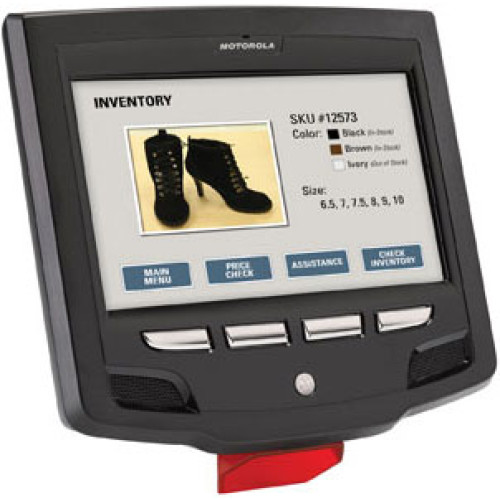

Photo of Motorola MK3100
Motorola logo

Motorola MK3100 Scanner

Today's shoppers, guests and travelers want to choose how to get the service they need from a person or from a self-service kiosk. And with over 90 percent 1 reporting the use of self-service kiosks, providing self service devices is crucial to meeting those service expectations — and the success of your organization. With the MK3100 Micro Kiosk, you'll have all the features you need to deliver an impressive self-service experience. This powerful device supports simple applications such as price and inventory checks to highly intuitive and elegantly designed multimedia applications such as how-to or product informational videos and product catalogs, allowing shoppers, guests and travelers to get the information they need quickly and easily. Deliver selfservice with a difference with the MK3100.
We respond to every email

Form Factor

Scanner Type


Scanner Capability

Scan Pattern

Communication Type ?


MK3100 Options
Part # DescriptionAvailabilityPriceOrder
MK3100-030BG4EZZWW MK3100, Wired Ethernet, Imager with Touch Ships Free Today $1,026.00
MK3190-030BG4EBTWW MK3100, Wi-Fi (802.11a/b/g), Bluetooth, 2D Imager with Touchscreen Ships Free Today $1,080.00


Part # DescriptionAvailabilityPriceOrder
23844-00-00R US AC Line Cord, Grounded, 7.5', Three wire for power supplies (Part# KT-14000-148R) and (Part# 50-14000-241R) and (Part# PWRS-14000-148R). Ships Free Today $15.74
25-68596-01R MC67 Accessories, USB Client Communication Cable. USB A to Mini B. Ships Free Today $17.00
25-119281-01R Cable, USB Cable, Assembly (Host). USB adapter cable to connect a peripheral device such as a printer, a handheld scanner, a keyboard, or mouse to the MK500 & MK4000. (MINI USB TO FEMALE USB) Ships Free Today $18.61
PWR-BGA12V50W0WW Power Supply (100-240 Vac, 12VDC, 4.16a). Requires AC and DC Line cord. AC line cord (Part# 23844-00-00R) DC line cord varies based on cradle you are using. See Cradle Description for correct DC Line cord required. Ships Free Today $37.87
Retail $49
Save 22%
KT-152097-02 MK3100 Accessories, Wall Mount Bracket, MK3XXX/MK4XXX, with power supply storage
Ships Free in 3-5 Days
Retail $60
Save 24%
KT-152096-02 MK3100 Accessories, Pole Mount Bracket, MK3XXX/MK4XXX, with power supply storage
Ships Free in 3-5 Days
Retail $120
Save 24%
25-119283-01R Accessories, Cable Assembly (Developer Debug), USB to Serial DB-9 Female, For The Mk500/Mk3000/MK4000
Ships Free in 3-5 Days
Retail $40
Save 18%
Protect Your Product
Motorola Service Contract - 3 year (Z1AE-MK31XX-3C00)
3 Year Zebra OneCare Essential. Includes Comprehensive coverage
Ships in 3-5 Days
+ Add to Quote

Motorola MK3100 Details

Best-in-class processing power
A 1GHz processor, 1GB RAM/8GB Flash and up to 32GB of additional memory via the MicroSD card slot provides power for the most complex multimedia applications — and the most powerful platform in its class.

Capture any barcode
Scan 1-D and 2-D barcodes printed on paper labels, even if they are damaged; on plastic loyalty or gift cards; or on the screen of a mobile phone.

Add whatever you need — from memory to peripherals
Three user-accessible USB ports plus Bluetooth allow you to customize the MK3100 to meet your business needs. Add memory for demanding applications. Add a wireless or wired printer to allow customers to print receipts, gift registries and more; a magnetic stripe reader to allow self-checkout; and a keyboard to simplify data entry.

Full screen video support
Enable the delivery of rich, video-based information to better engage with customers and employees. How-to and product demonstration videos provide added value for customers. Training videos help improve sales skills and keep employees up to date on new items. And the ability to run video advertisements when the device is not in use helps you get more out of your advertising budget — and the MK3100.

Use mobile barcodes to build stronger and more personal relationships with your customers
Because you can scan electronic barcodes on a computer screen, you can connect to the one personal device that is nearly always in the hands of your customers – their mobile phone. The result is convenience and value. Customers always have their loyalty cards, coupons, boarding passes and more on hand all the time, saving time and money.

Easy to deploy
802.11a/b/g/n and Ethernet support enables easy connection to your existing wireless or wired network; ‘n’ support provides the bandwidth for data intensive multi-media apps; ‘a’ can be used for critical store wireless infrastructure only to preserve performance; power-over-Ethernet support eliminates the need for a power outlet by every device; and standard VESA mounting makes it easy to mount anywhere — including shelves, walls and endcaps.

RhoElements support for OS-agnostic elegant applications
Write one version of an application that can run on any device with any operating system, maximizing app development investments; true freedom from operating system constraints allows you to design business applications with the most sophisticated and easy to use consumer-style interfaces.

Performance characteristics

Operating system
Windows Embedded Compact 7

RhoElements, Internet Explorer 7.0

Flash memory
1 GB RAM/8 GB (Additional memory: up to 32 GB flash via accessible microSD slot)

TI OMAP4 1GHz processor

Physical characteristics

Programmable buttons
Four programmable keys

Decode capability

Data ports
1 Mini USB 2.0 host/client; 2 Mini USB 2.0 host; Ethernet RJ-45

8" (20.32 cm) diagonal WVGA LCD 800 x 480 pixels; resistive touch screen

1.9 lbs (0.86 kg)

DC: 12v; Support for Power-over-Ethernet (802.3af and 802.3at)

Audio ports
Two integrated stereo speakers, microphone and headset jack

Expansion capabilities
Micro SD card slot, USB host

8.87 x 8.87 x 2.17"

Regulatory specifications

EN 301 489-1, EN 301 489-17, ICES 003 Class B, FCC Part 15 Class B, EN 61000-3-2, EN 55024, EN 61000-3-3, EN 55022, AS/NZS, Japan VCCI, 4268:2008

Electrical safety
UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

User environment

Ambient lighting tolerance
Immune to normal indoor lighting up to 1600Lux; immune to sunlight up to 86, 000 Lux

Storage temperature
-40° to 158° F (-40° to 70° C)

5% to 85% (non-condensing)

Operating temperature
32° to 104° F (0° to 40° C°)
