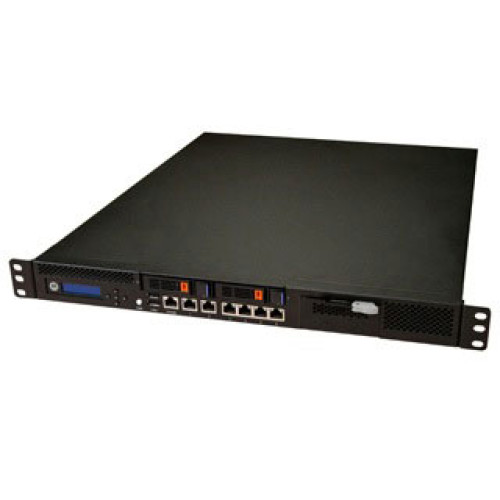

Photo of Motorola NX 7510E
Motorola logo

Motorola NX 7510E Wireless Controller

The NX 7510E features a state-of-the-art user interface that allows the administrator to set up sites quickly "" an intuitive auto-provisioning policy supports trouble-free deployment at multiple sites. Once deployed, built-in analytics present information about access points, radios, wireless LAN and all the connected devices. Administrators will see all network activity in an easy-to-understand display to simplify network management.
Questions?
1-888-875-7170
We respond to every email
NX 7510E Options
Part # DescriptionAvailabilityPriceOrder
NX-7510E-100R0-WR NX 7510E, Express Manager Platform (with 64 Express AP Licenses)
Ships Free in 3-5 Days
$5,771.15

Motorola NX 7510E Details

PHYSICAL CHARACTERISTICS

Dimensions

1U, rack mountable 17.2 in. W x 1.76 in. H x 21.28 in. D 430 mm W x 42 mm H x 532 mm D

Weight

41.8 lb./19 kg

Memory

16GB RAM

Storage

64GB Solid-state drive for firmware images and critical data 500GB hard-drive

Power Supply

300 Watts, 100-240V AC PSU @50Hz-60Hz

Power Consumption

110 Watts

USER ENVIRONMENT

Operating Temp.

32°F to 104°F/0°C to 40°C

Storage Temp.

-4°F to 167°F/-20°C to 75°C

Operating Humidity

5% to 85% at 104° F/40° C

Storage Humidity

5-95%

CAPACITY AND PERFORMANCE

Express APs Supported

1,024

Number of Sites

1,024

WLANs

256

Interfaces

6 10/100/1000 Base-T Ethernet ports
