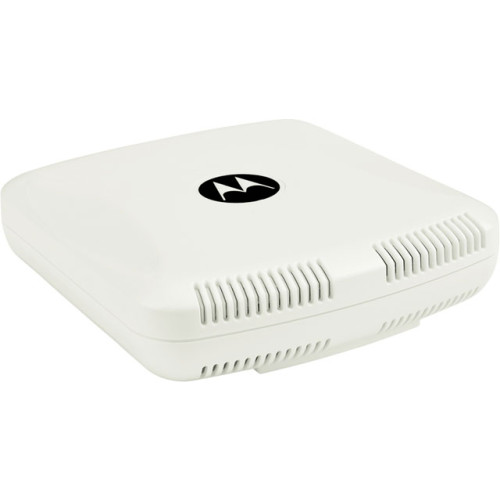

Motorola AP 621 Access Point
Part #: AP-0621-60010-US | SKU: MOT148353

The AP 621 is a thin (dependent) multipurpose access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN (WLAN) in branch offices or headquarters facilities. The access point features a MIMO radio, superior receive and transmit sensitivity, and a GigE WAN uplink port. The AP 621 is easily managed remotely by a Motorola RFS 7000 or other wireless controller that discovers access points on the network and automatically downloads all configuration parameters and firmware, greatly reducing installation, maintenance and troubleshooting costs. The embedded WiNG 5 distributed intelligence ensures that traffic is locally forwarded along the most efficient paths without sacrificing quality of service and security implemented at the access point itself.

Motorola AP 621 Access Point

Part Details: Zebra AP 621 IEEE 802.11n 300 Mbit/s Wireless Access Point - 1 x Network (RJ-45) - Ethernet, Fast Ethernet, Gigabit Ethernet - PoE Ports - Ceiling Mountable, Wall Mountable

Additional Information

Manufacturer Motorola
Model Name AP 621
Wireless Type Wi-Fi 4: 802.11n, Wi-Fi

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.18 GHz
  • Antenna Gain:
    • 3 dBi
    • 6 dBi
  • Total Number of Antennas: 2
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security:
    • AAA
    • RADIUS
    • VPN
    • Stateful Packet Filtering

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 621
  • Product Name: AP 621 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Width: 7.5"
  • Depth: 9.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: No

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • IEEE 802.1Q
    • FCC
    • CE
    • IC

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Management & Protocols

  • Management: VLAN
Extended Details

Recommended Warranties for Model: Motorola AP 621 Access Point

  • Motorola AP 621 Service Contract
    Part #: SSS-AP621-20-R | SKU: 370030

    Service Contract - 2 year, Zebra OneCare Service Select renewal. Includes Comprehensive Coverage. Check datasheet for regional availability.
  • Motorola AP 621 Service Contract
    Part #: SXB-AP621-20-R | SKU: 300957

    Service Contract - 2 Year, Service from the Start Service Advanced Exchange renewal. Includes Comprehensive Coverage. Check datasheet for regional availability.
