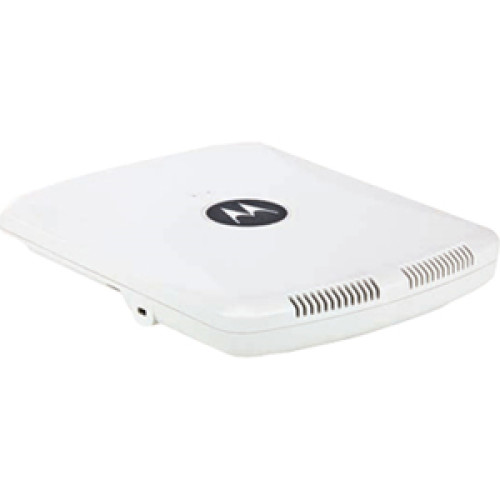

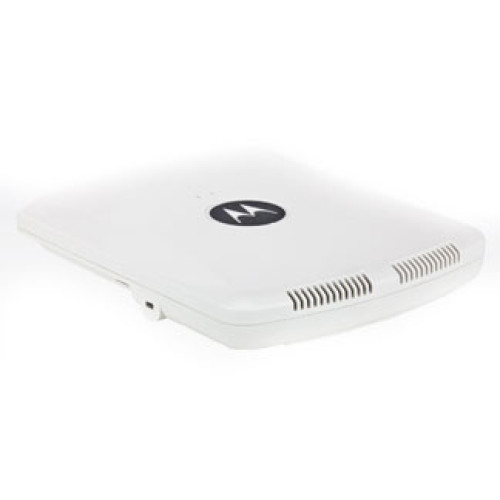

AP-0622-66040-US - Motorola AP 622 Access Point

The Motorola AP 622 is a dependent dual radio access point designed to lower the cost of deploying and operating a secure, reliable 802.11n wireless LAN. The access point features dual MIMO radios and a GigE WAN uplink port. One radio can be used for client access while the second radio is used for simultaneous client access on a different frequency band or as a dedicated sensor on both 2.4 and 5.0 GHz bands for security and troubleshooting. WiNG 5 intelligence ensures traffic is locally forwarded along the most efficient paths without sacrificing QoS and security is implemented at the access point itself. Out-of-the-box, the AP 622 access point supports voice over wireless LAN (VoWLAN) QoS, which ensures toll-quality even with many simultaneous VoWLAN calls on a single access point.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
AP-0622-66040-US AP 622, AP0622: 802.11n Dep 2-Rad External Antenna
Information:   |  Specifications  |  Motorola's AP 622 page  |
Accessories:   |  Accessories/Options  |  Motorola AP 622 service contract  |

AP-0622-66040-US Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 4.92 GHz
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.82 GHz
  • Features: MIMO Technology

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-0622
  • Product Name: AP-0622 Access Point

Physical Characteristics

  • Height: 1"
  • Width: 7.9"
  • Depth: 5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 1.45 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • China RoHS
  • Package Contents:
    • AP-0622 Access Point
    • 2 x Customer Installed Mounting Lugs
    • 4 x Mounting Lug Retaining Screws
    • Installation Guide
    • AP-0622 Access Point
    • 2 x Customer Installed Mounting Lugs
    • 4 x Mounting Lug Retaining Screws
    • Installation Guide
  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • FCC Part 15
    • IC
    • CE

Power Description

  • Input Voltage: 12 V DC
  • Power Source: AC Adapter
Part # Description Availability Price Order
SSS-AP622-30 Motorola Service Contract - 3 year, Zebra OneCare Select. Includes Comprehensive coverage. Check datasheet for regional availability.
Ships Free in 3-5 Days
$88.00

The Motorola AP-0622-66040-US is also known as MOT-AP062266040US or AP062266040US .
