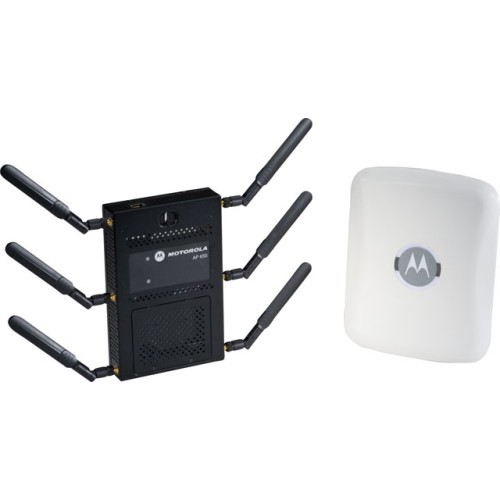

AP-0650-6001S-WW - Motorola AP650 Access Point

The Motorola AP650 features full 802.11n performance with standard 802.3af, which simplifies and reduces total cost of installation using standard Power-over-Ethernet (PoE). Its multiband operation allows concurrent sensing on 2.4 Ghz and 5.0 Ghz frequency bands for multi-band intrusion protection or troubleshooting. The AP650 supports fast, secure roaming. This unique multi-purpose device can execute and enforce the IDS/IPS security policies configured in the Motorola wireless switch, and can also be utilized as a 24x7 dedicated sensor with Wireless IPS from Motorola AirDefense solutions.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
AP-0650-6001S-WW AP650, Access Point (Single Radio, Internal Antenna, International Version)
Information:   |  Specifications  |  Motorola's AP650 page  |
Accessories:   |  No accessories available  |  Motorola AP650 service contract  |

AP-0650-6001S-WW Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • Antenna Gain:
    • 2 dBi
    • 4.8 dBi
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.40 GHz
  • UNII Maximum Frequency: 5 GHz
  • Antenna Connector: SMA Connector
  • Wireless Security:
    • 2-7 Stateful Packet Filtering
    • AAA RADIUS
    • Wireless IPS-lite
    • Location-Based Access Control
    • Role-Based Access Control
    • Rogue

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP 650
  • Product Name: AP 650 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Depth: 9.5"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 2 lb

Interfaces/Ports

  • Gigabit Ethernet Port: Yes
  • PoE (RJ-45) Port: Yes

Management & Protocols

  • Management:
    • VLAN
    • QoS

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

The Motorola AP-0650-6001S-WW is also known as MOT-AP06506001SWW or AP06506001SWW .
