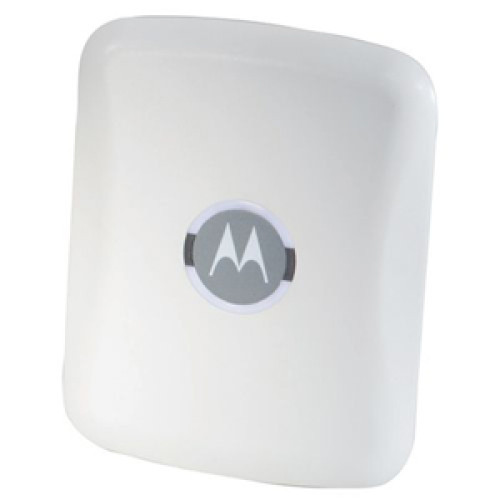

Photo of Motorola AP-0650-66030-WW Motorola logo

Motorola AP650

Wireless Access Point/Bridge

Access Point

Free Shipping

Ships in 24-48 hours

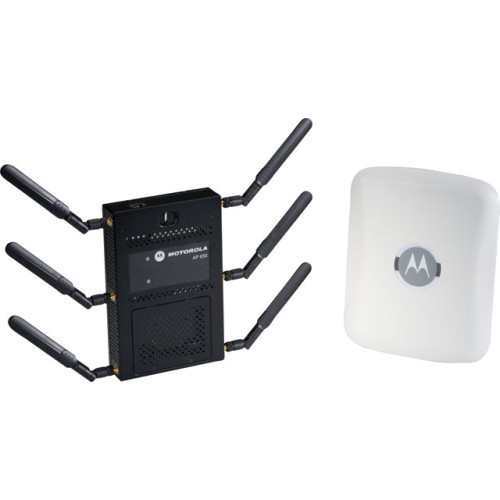

Motorola AP650 Access Point

The Motorola AP650 features full 802.11n performance with standard 802.3af, which simplifies and reduces total cost of installation using standard Power-over-Ethernet (PoE). Its multiband operation allows concurrent sensing on 2.4 Ghz and 5.0 Ghz frequency bands for multi-band intrusion protection or troubleshooting. The AP650 supports fast, secure roaming. This unique multi-purpose device can execute and enforce the IDS/IPS security policies configured in the Motorola wireless switch, and can also be utilized as a 24x7 dedicated sensor with Wireless IPS from Motorola AirDefense solutions.

Full specifications (PDF)

Manufacturer part number: AP-0650-66030-WW

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain:
    • 2 dBi
    • 4.8 dBi
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Wireless Security:
    • IEEE 802.1x
    • IEEE 802.11i
    • WPA2-CCMP (AES)
    • WPA2-TKIP
    • WPA-TKIP

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP650
  • Product Name: AP650 Wireless Access Point

Physical Characteristics

  • Height: 1.7"
  • Depth: 9.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2 lb


  • Gigabit Ethernet Port: Yes
  • PoE (RJ-45) Port: Yes

Management & Protocols

  • Management:
    • QoS
    • VLAN


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Power Description

  • Input Voltage: 48 V DC
