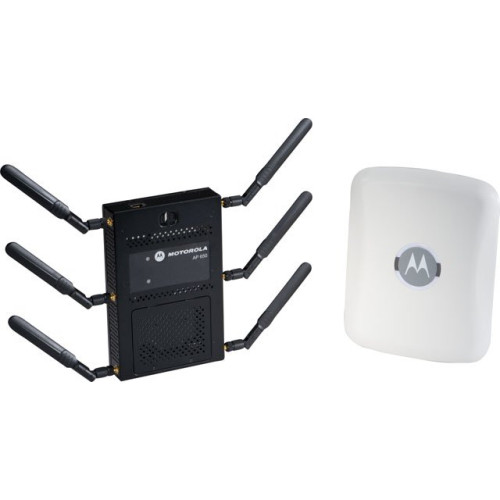

AP-0650-66040-WW - Motorola AP650 Access Point

The Motorola AP650 features full 802.11n performance with standard 802.3af, which simplifies and reduces total cost of installation using standard Power-over-Ethernet (PoE). Its multiband operation allows concurrent sensing on 2.4 Ghz and 5.0 Ghz frequency bands for multi-band intrusion protection or troubleshooting. The AP650 supports fast, secure roaming. This unique multi-purpose device can execute and enforce the IDS/IPS security policies configured in the Motorola wireless switch, and can also be utilized as a 24x7 dedicated sensor with Wireless IPS from Motorola AirDefense solutions.

We respond to every email
Part # Description Availability Price Order
AP-0650-66040-WW AP650, Wireless Access Point/Bridge
Information:   |  Specifications  |  Motorola's AP650 page  |
Accessories:   |  No accessories available  |  Motorola AP650 service contract  |

AP-0650-66040-WW Details

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Total Number of Antennas: 6
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.46 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Antenna Connector: RP-SMA Connector

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP650
  • Product Name: AP650 WLAN Access Point

Physical Characteristics

  • Height: 1.5"
  • Depth: 8.5"
  • Form Factor:
    • Ceiling Mountable
    • Wall Mountable
  • Weight (Approximate): 2.50 lb


  • Gigabit Ethernet Port: Yes
  • PoE (RJ-45) Port: Yes

Management & Protocols

  • Management:
    • VLAN
    • QoS


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS

Power Description

  • Input Voltage: 48 V DC

The Motorola AP-0650-66040-WW is also known as SYM-AP065066040WW or AP065066040WW .
