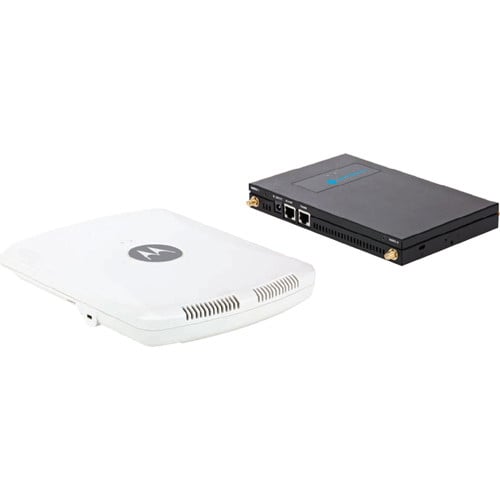

Photo of Motorola AP-6522-66040-US Motorola logo

Motorola AP 6522

802.11n independent access port dual radio external antenna version. For use in US only.

Access Point
See Price in Cart

Free Shipping

Ships Today

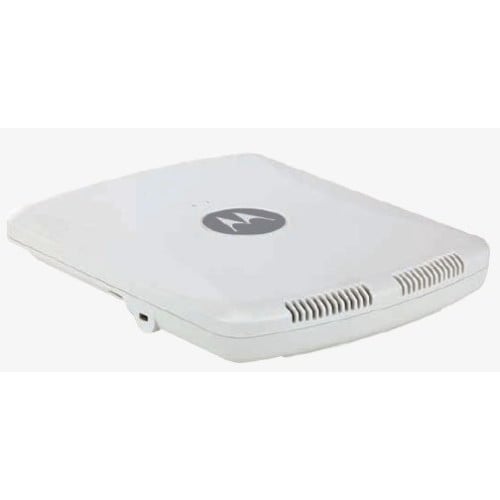

Motorola AP 6522 Access Point

Designed for small offices and retail locations, the AP 6522 can handle the increasing number of Wi-Fi-enabled devices and bandwidth-heavy applications connecting to your wireless network. The AP 6522 is a site-survivable wireless access point that does not require a controller. With its WiNG 5 intelligence, the AP 6522 can also serve as a virtual controller and coordinate the operation of up to 24 neighboring access points. It connects to other access points in a mesh topology to enable the extension of wireless network coverage to areas where Ethernet cabling is cost prohibitive or otherwise impractical.

Full specifications (PDF)

Manufacturer part number: AP-6522-66040-US

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.41 GHz
  • UNII Minimum Frequency: 5.20 GHz
  • Total Number of Antennas: 2
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.47 GHz
  • UNII Maximum Frequency: 5.83 GHz
  • Features:
    • Quality of Service (QoS)
    • MIMO Technology
  • Wireless Security:
    • Stateful Packet Filtering Firewall
    • Wireless IPS-lite
    • AAA
    • RADIUS
    • IDS
    • IPS

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: AP-6522
  • Product Name: Dual Radio 802.11a/b/g/n Wireless Access Point

Physical Characteristics

  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
  • Weight (Approximate): 1.75 lb

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • USB: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Certifications & Standards:
    • UL 60950
    • cUL
    • EU EN 60950
    • TUV
    • UL 2043
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n

Power Description

  • Input Voltage:
    • 48 V DC
    • 12 V DC
  • Power Source:
    • PoE
    • AC Adapter
